VBsemi ElecDatasheet (PDF)

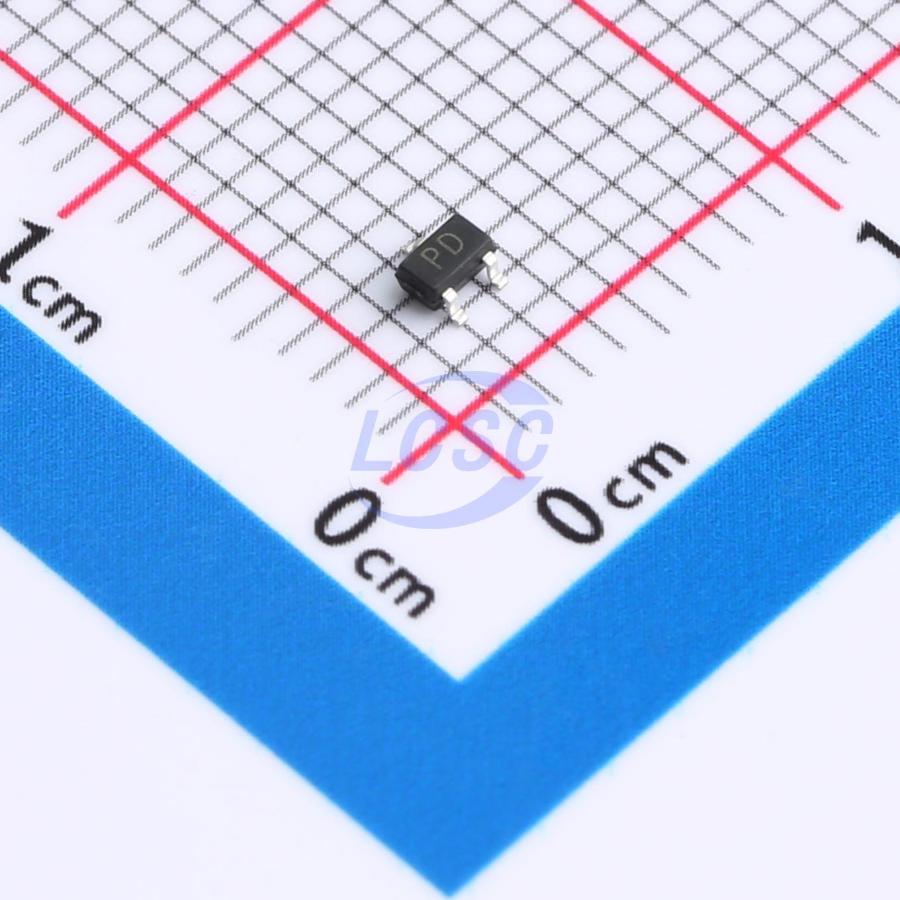

VBK264K
P-Channel 60V 135mA 350mW Surface Mount SOT-323(SC-70)
SOT-323(SC-70)RoHSActive
MOSFET P-CH 60V 135mA SOT-323(SC-70)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBK264K
- Store part #
- C42412467
- Package / case
- SOT-323(SC-70)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C42412467
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.16 | ₹91.60 |
| 100+ | ₹7.30 | ₹730.00 |
| 300+ | ₹6.38 | ₹1,914.00 |
| 3,000+ | ₹5.68 | ₹17,040.00 |
| 6,000+ | ₹5.12 | ₹30,720.00 |
| 9,000+ | ₹4.84 | ₹43,560.00 |
10 × ₹9.16
₹91.60
excl. GST
₹108.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
VBK264K
₹91.60 for 10 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 10pF
- Current - Continuous Drain(Id)
- 135mA
- Ciss-Input Capacitance
- 23pF
- Pd - Power Dissipation
- 350mW
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 4Ω@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 1.7nC
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.26 g
Overview
Applications
- Drivers: relays, solenoids, lamps, hammers, displays, memories, transistors, etc.
- Battery-powered systems
- Power conversion circuits
- Solid-state relays
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- High-side switching
- Low on-resistance: 4 Ω
- Low threshold: -2 V (typical)
- Fast switching speed: 20 ns (typical)
- Low input capacitance: 20 pF (typical)
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BSS84AKW,115-VB#C52148614VBsemi Elec · SOT-323 | VBsemi Elec | SOT-323 | On request | ₹11.29 · 0 in stock | View | |
| NX3008PBKW,115-VB#C52148615VBsemi Elec · SOT-323 | VBsemi Elec | SOT-323 | On request | ₹11.29 · 0 in stock | View | |
| BSS84AKW-VB#C52148616VBsemi Elec · SOT-323 | VBsemi Elec | SOT-323 | On request | ₹11.29 · 0 in stock | View | |
