VBsemi ElecDatasheet (PDF)

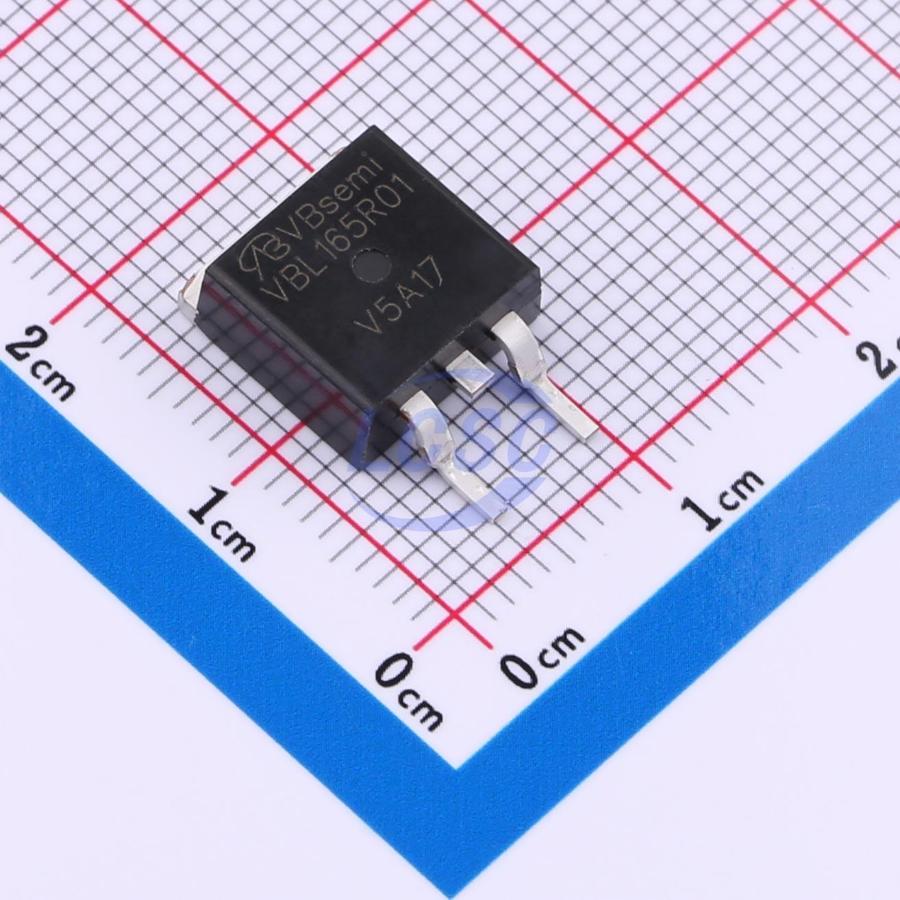

VBL165R01
N-Channel 650V 1.4A 36W Surface Mount TO-263(D2Pak)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 650V 1.4A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBL165R01
- Store part #
- C42412719
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C42412719
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹120.60 | ₹120.60 |
| 10+ | ₹103.41 | ₹1,034.10 |
| 50+ | ₹94.70 | ₹4,735.00 |
| 100+ | ₹86.21 | ₹8,621.00 |
| 500+ | ₹52.91 | ₹26,455.00 |
| 1,000+ | ₹50.08 | ₹50,080.00 |
1 × ₹120.60
₹120.60
excl. GST
₹142.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBL165R01
₹120.60 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 1.4A
- Output Capacitance(Coss)
- 32.6pF
- Ciss-Input Capacitance
- 229pF
- Pd - Power Dissipation
- 36W
- Reverse Transfer Capacitance (Crss)
- 2.4pF
- RDS(on)
- 8.5Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 14nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.6 g
Overview
Applications
- Switch Mode Power Supply (SMPS)
- Uninterruptible Power Supply
- Power Factor Correction
Key features
- Low Gate Charge Qg Results in Simple Drive Requirement
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche Voltage and Current
