VBsemi ElecDatasheet (PDF)

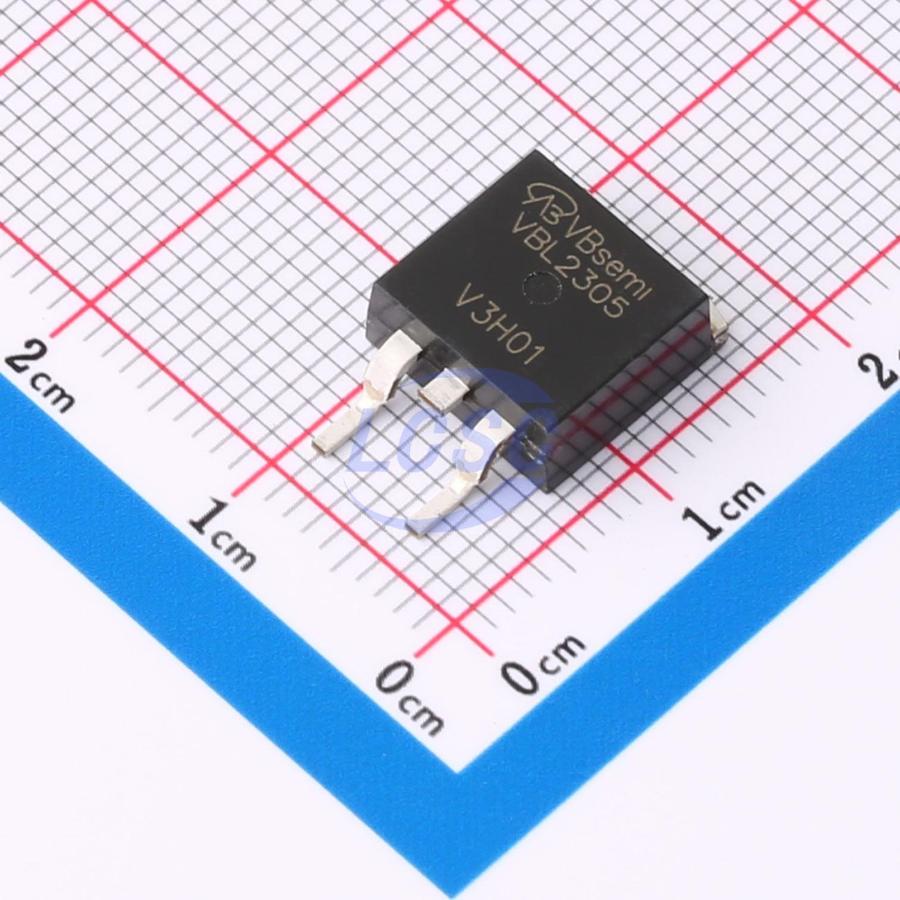

VBL2305
P-Channel 30V 100A 254W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)ROHS CompliantActive
MOSFET P-CH 30V 100A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBL2305
- Store part #
- C7568929
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18 in stock
#C7568929
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹142.63 | ₹142.63 |
| 10+ | ₹115.96 | ₹1,159.60 |
| 50+ | ₹102.51 | ₹5,125.50 |
| 100+ | ₹89.28 | ₹8,928.00 |
| 500+ | ₹81.30 | ₹40,650.00 |
| 1,000+ | ₹77.30 | ₹77,300.00 |
1 × ₹142.63
₹142.63
excl. GST
₹168.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBL2305
₹142.63 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 100A
- Pd - Power Dissipation
- 254W
- RDS(on)
- 5mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 115nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.32 g
Overview
Applications
- Load Switch
- Notebook Adapter Switch
Key features
- Halogen-free
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- 100% unclamped inductive switching (UIS) tested
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | F4905S-VB#C22389915VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 43 | ₹291.27 · 43 in stock | View |
 | SQM50P06-15L-GE3-VB#C7569062VBsemi Elec · TO-263 | VBsemi Elec | TO-263 | 20 | ₹275.61 · 20 in stock | View |
 | SUM110P06-07L-E3-VB#C47993900VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 3 | ₹225.56 · 3 in stock | View |
 | SUM110P06-08L-E3-VB#C47993917VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 6 | ₹296.01 · 6 in stock | View |
 | SUM90P10-19L-E3-VB#C45662532VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 26 | ₹374.20 · 26 in stock | View |
