VBsemi ElecDatasheet (PDF)

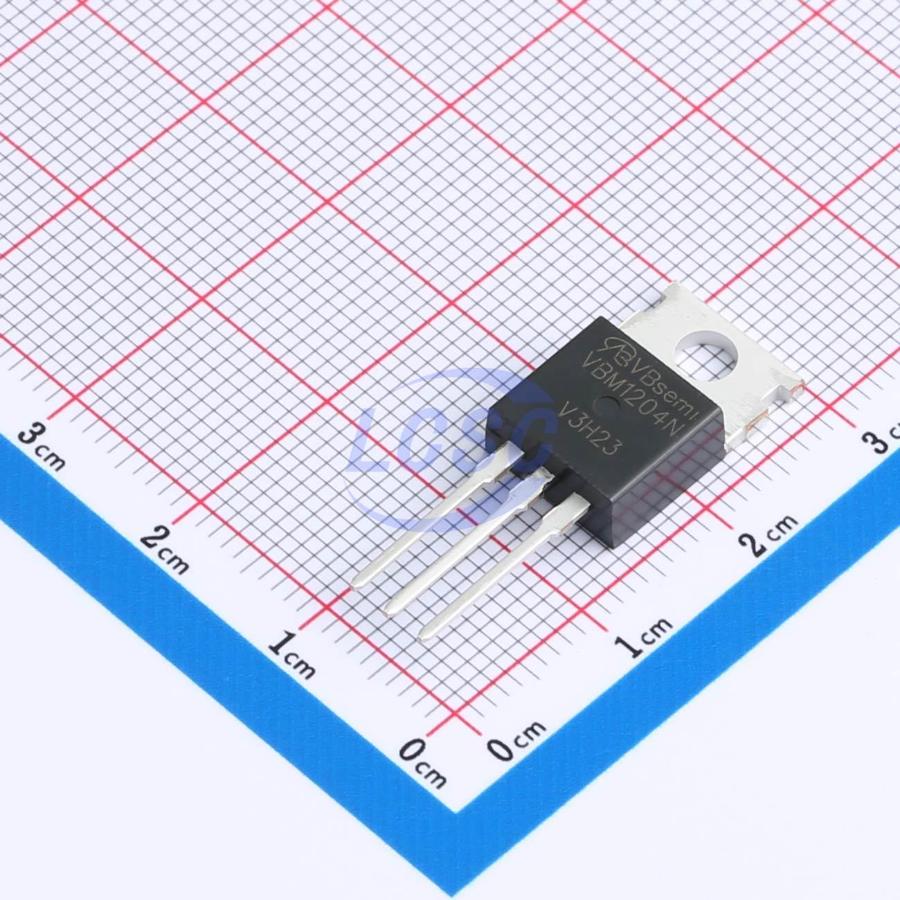

VBM1204N
N-Channel 200V 50A Through Hole TO-220AB
TO-220ABROHS CompliantActive
MOSFET N-CH 200V 50A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBM1204N
- Store part #
- C7569074
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C7569074
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹259.22 | ₹259.22 |
| 10+ | ₹222.03 | ₹2,220.30 |
| 50+ | ₹181.49 | ₹9,074.50 |
| 100+ | ₹157.75 | ₹15,775.00 |
| 500+ | ₹146.83 | ₹73,415.00 |
| 1,000+ | ₹142.21 | ₹1,42,210.00 |
1 × ₹259.22
₹259.22
excl. GST
₹305.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBM1204N
₹259.22 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 300pF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 3nF
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 46mΩ@15V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 85nC@15V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.98 g
Overview
Applications
- Power Supply
- Lighting Systems
Key features
- Trench Power MOSFET
- Junction temperature 175°C
- 100% Rg and UIS tested
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SSP45N20B-VB#C20755320VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹252.90 · 10 in stock | View |
 | IRFB38N20DPBF-VB#C22389735VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 6 | ₹241.99 · 6 in stock | View |
 | STP40NF20-VB#C7463572VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 7 | ₹286.19 · 7 in stock | View |
 | PSMN057-200P-VB#C52209340VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹263.41 · 5 in stock | View |
 | IRFB42N20DPBF-VB#C19711209VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 7 | ₹286.50 · 7 in stock | View |
