VBsemi ElecDatasheet (PDF)

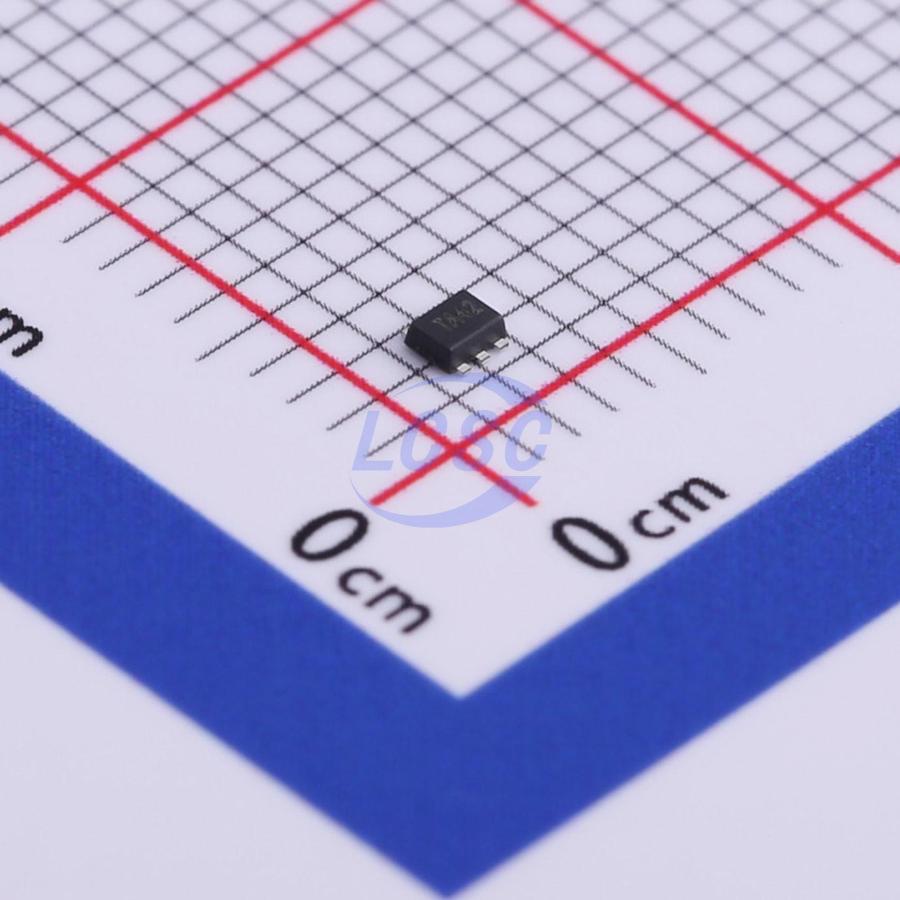

VBTA4250N
P-Channel 20V 550mA 190mW Surface Mount SC-75-6
SC-75-6RoHSActive
MOSFET P-CH ARR 20V 550mA SC-75-6
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBTA4250N
- Store part #
- C516980
- Package / case
- SC-75-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C516980
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.62 | ₹133.10 |
| 50+ | ₹21.13 | ₹1,056.50 |
| 150+ | ₹18.77 | ₹2,815.50 |
| 500+ | ₹15.84 | ₹7,920.00 |
| 3,000+ | ₹14.53 | ₹43,590.00 |
| 6,000+ | ₹13.75 | ₹82,500.00 |
5 × ₹26.62
₹133.10
excl. GST
₹157.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
VBTA4250N
₹133.10 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 15pF
- Current - Continuous Drain(Id)
- 550mA
- Ciss-Input Capacitance
- 45pF
- Pd - Power Dissipation
- 190mW
- Reverse Transfer Capacitance (Crss)
- 10pF
- RDS(on)
- 450mΩ@4.5V;500mΩ@2.5V;600mΩ@1.8V
- Number
- 2 P-Channel
- Gate Charge(Qg)
- 1.65nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 400mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.02 g
Overview
Applications
- Load/power switch for portable devices
- Driver: relays, solenoids, displays
- Battery-powered systems
Key features
- Trench power MOSFET
- 100% R<sub>DS(on)</sub> tested
- Fast switching speed
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| PMDT670UPE,115-VB#C52209310VBsemi Elec · SC-75-6 | VBsemi Elec | SC-75-6 | On request | ₹32.68 · 0 in stock | View | |
