VBsemi ElecDatasheet (PDF)

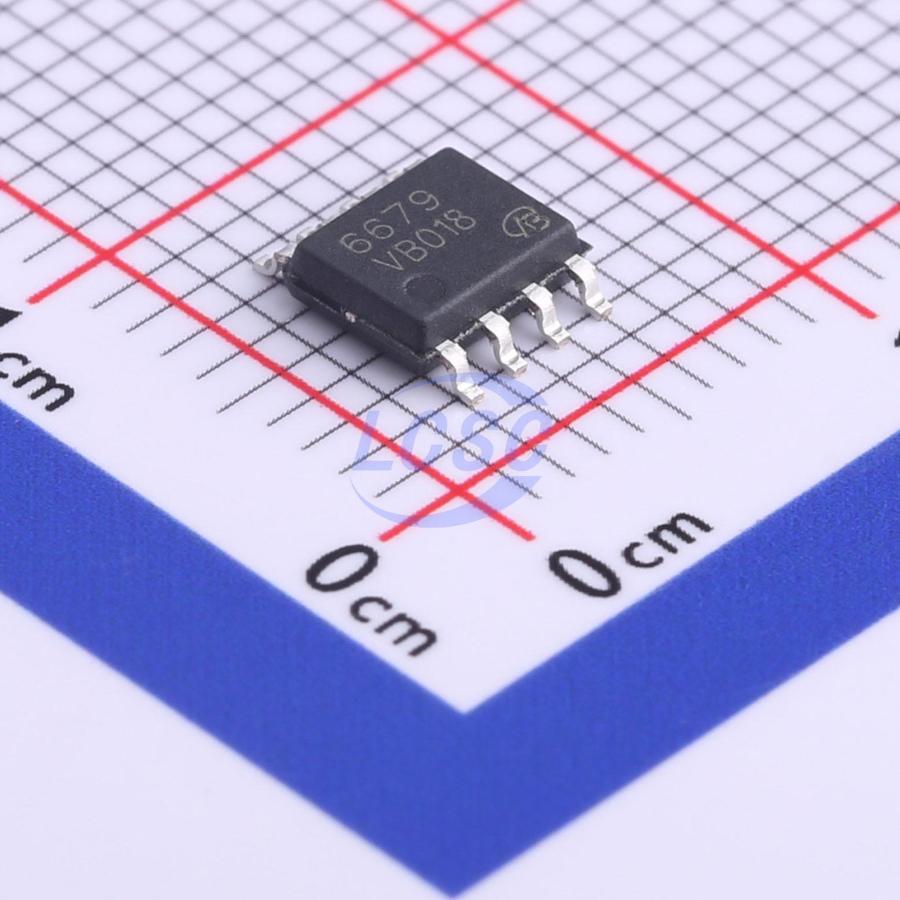

VBZA6679
P-Channel 30V 13.5A 5W Surface Mount SO-8
SO-8RoHSActive
MOSFET P-CH 30V 13.5A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZA6679
- Store part #
- C700600
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C700600
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.09 | ₹77.09 |
| 10+ | ₹61.55 | ₹615.50 |
| 30+ | ₹54.83 | ₹1,644.90 |
| 100+ | ₹46.64 | ₹4,664.00 |
| 500+ | ₹40.76 | ₹20,380.00 |
| 1,000+ | ₹38.45 | ₹38,450.00 |
1 × ₹77.09
₹77.09
excl. GST
₹90.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
VBZA6679
₹77.09 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 455pF
- Current - Continuous Drain(Id)
- 13.5A
- Ciss-Input Capacitance
- 2.55nF
- Pd - Power Dissipation
- 5W
- Reverse Transfer Capacitance (Crss)
- 390pF
- RDS(on)
- 9mΩ@10V;15mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 29nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.138 g
Overview
Applications
- Load Switch
- Laptop Adapter Switch
Key features
- Halogen-free
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- 100% unclamped inductive switching (UIS) tested
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SM4303PSKC-TRG-VB#C22389799VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 15 | ₹72.47 · 15 in stock | View |
 | FDS6673BZ-NL-VB#C7463696VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 298 | ₹76.88 · 298 in stock | View |
 | BSO080P03S-VB#C19190257VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 15 | ₹76.51 · 15 in stock | View |
 | STM4439A-VB#C22389480VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹72.47 · 20 in stock | View |
 | DMG4413LSS-13-VB#C22389505VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹72.47 · 20 in stock | View |
