VBsemi ElecDatasheet (PDF)

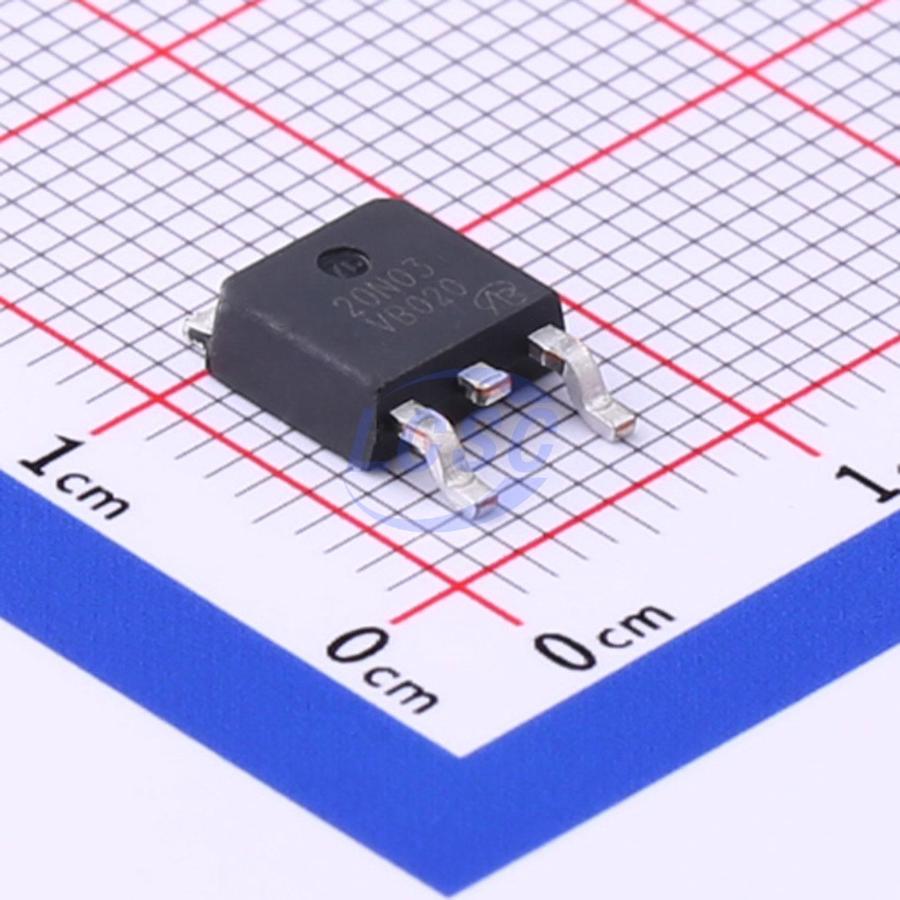

VBZE20N03
N-Channel 30V 50A 100W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 30V 50A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZE20N03
- Store part #
- C700628
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18 in stock
#C700628
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.93 | ₹52.93 |
| 10+ | ₹42.02 | ₹420.20 |
| 30+ | ₹37.40 | ₹1,122.00 |
| 100+ | ₹31.51 | ₹3,151.00 |
| 500+ | ₹27.52 | ₹13,760.00 |
| 1,000+ | ₹25.84 | ₹25,840.00 |
1 × ₹52.93
₹52.93
excl. GST
₹62.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
VBZE20N03
₹52.93 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 525pF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 2.201nF
- Pd - Power Dissipation
- 100W
- Reverse Transfer Capacitance (Crss)
- 370pF
- RDS(on)
- 7mΩ@10V;9mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.384 g
Overview
Applications
- OR gate function - Server - DC/DC converter
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with EU RoHS Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STD30NF03LT4-VB#C18794976VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 34 | ₹53.56 · 34 in stock | View |
 | SPD30N03S2L-07 G-VB#C19188222VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹53.56 · 50 in stock | View |
 | FDD6630A-VB#C20626337VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 279 | ₹50.84 · 279 in stock | View |
 | NTD14N03RG-VB#C20755558VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 30 | ₹52.93 · 30 in stock | View |
 | 2SK2084STL-E-VB#C20755711VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹50.84 · 50 in stock | View |
