VBsemi ElecDatasheet (PDF)

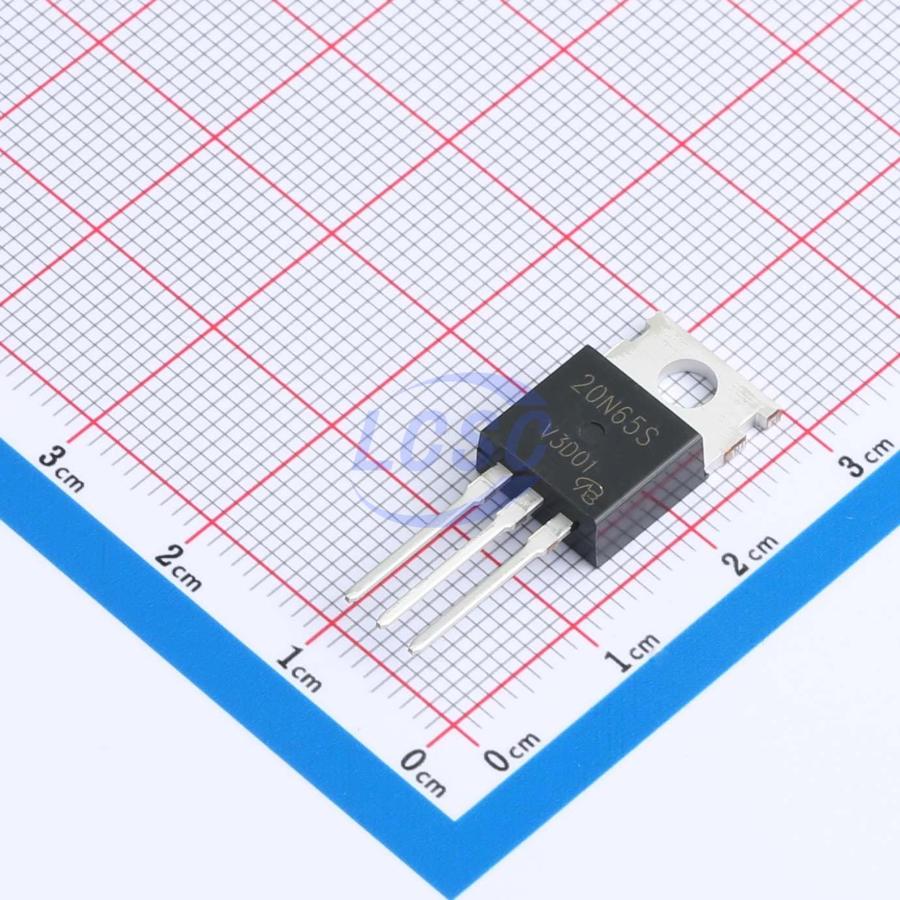

VBZM20N65S
N-Channel 650V 13A 208W Through Hole TO-220AB
TO-220ABROHS CompliantActive
MOSFET N-CH 650V 13A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZM20N65S
- Store part #
- C7569079
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19 in stock
#C7569079
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹364.66 | ₹364.66 |
| 10+ | ₹311.09 | ₹3,110.90 |
| 50+ | ₹277.49 | ₹13,874.50 |
| 100+ | ₹243.04 | ₹24,304.00 |
| 500+ | ₹227.49 | ₹1,13,745.00 |
| 1,000+ | ₹220.77 | ₹2,20,770.00 |
1 × ₹364.66
₹364.66
excl. GST
₹430.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBZM20N65S
₹364.66 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 105pF
- Current - Continuous Drain(Id)
- 13A
- Ciss-Input Capacitance
- 2.322nF
- Pd - Power Dissipation
- 208W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 190mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 71nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.3 g
Overview
Applications
- Telecommunications - Server and telecom power supplies
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Consumer and computing - ATX power supplies
- Industrial - Welding - Battery chargers
- Renewable energy - Solar (PV inverters)
- Switch mode power supplies (SMPS)
Key features
- Reduced trr, Qrr, and IRRM
- Low figure-of-merit (FOM) R(on)×Qg
- Low input capacitance (Ciss)
- Low switching losses due to reduced Qrr
- Ultra low gate charge (Qg)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFB20N50K-VB#C7568887VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 17 | ₹440.25 · 17 in stock | View |
 | IKP15N60T-VB#C7569121VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹196.82 · 5 in stock | View |
 | SPP20N60C3-VB#C7568837VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 46 | ₹440.61 · 46 in stock | View |
 | FQP20N60C-VB#C19190228VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 50 | ₹380.71 · 50 in stock | View |
 | STP24N60DM2-VB#C19632042VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 2 | ₹348.90 · 2 in stock | View |
