VISHAYDatasheet (PDF)

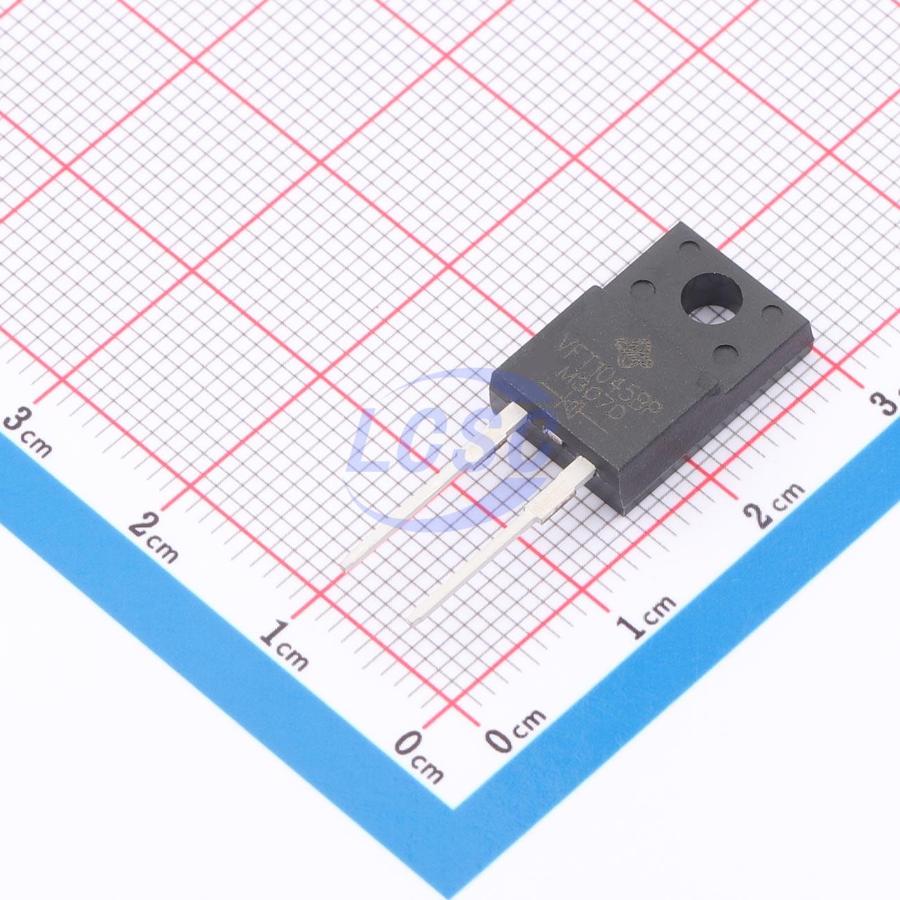

VFT1045BP-M3/4W
1 Independent 45V 680mV@10A 10A ITO-220AC Single Diodes RoHS
ITO-220ACROHS3 CompliantActive
DIODE SCHOTTKY 45V ITO-220AC
- Manufacturer
- VISHAY
- Manufacturer part #
- VFT1045BP-M3/4W
- Store part #
- C7144260
- Package / case
- ITO-220AC
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28 in stock
#C7144260
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹98.01 | ₹98.01 |
| 10+ | ₹95.84 | ₹958.40 |
| 50+ | ₹94.32 | ₹4,716.00 |
| 100+ | ₹92.80 | ₹9,280.00 |
1 × ₹98.01
₹98.01
excl. GST
₹115.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VFT1045BP-M3/4W
₹98.01 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 45V
- Voltage - Forward(Vf@If)
- 680mV@10A
- Reverse Leakage Current (Ir)
- 500uA@45V
- Non-Repetitive Peak Forward Surge Current
- 100A
- Current - Rectified
- 10A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.207 g
Overview
Trench MOS Barrier Schottky Rectifier for bypass protection in photovoltaic solar cells. Ultra-low VF = 0.41 V at IF = 5 A.
Applications
- Used as bypass diodes in solar cell junction boxes for protection, operating with DC forward current without reverse bias.
Key features
- Trench MOS Schottky technology
- Low forward voltage drop, low power dissipation, high-efficiency operation
- Per JESD 22-B106, solder bath temperature up to 275°C for 10 seconds
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VFT4045BP-M3/4W#C5358617VISHAY · ITO-220AC | VISHAY | ITO-220AC | 46 | ₹276.41 · 46 in stock | View |
 | VFT3045BP-M3/4W#C3759299VISHAY · ITO-220AC | VISHAY | ITO-220AC | 60 | ₹210.97 · 60 in stock | View |
 | MBRF1045#C260306SMC · ITO-220AC | SMC | ITO-220AC | 255 | ₹55.45 · 255 in stock | View |
 | STF1060#C260417SMC · ITO-220AC | SMC | ITO-220AC | 133 | ₹241.67 · 133 in stock | View |
 | STF10100#C260416SMC · ITO-220AC | SMC | ITO-220AC | 90 | ₹60.20 · 90 in stock | View |
