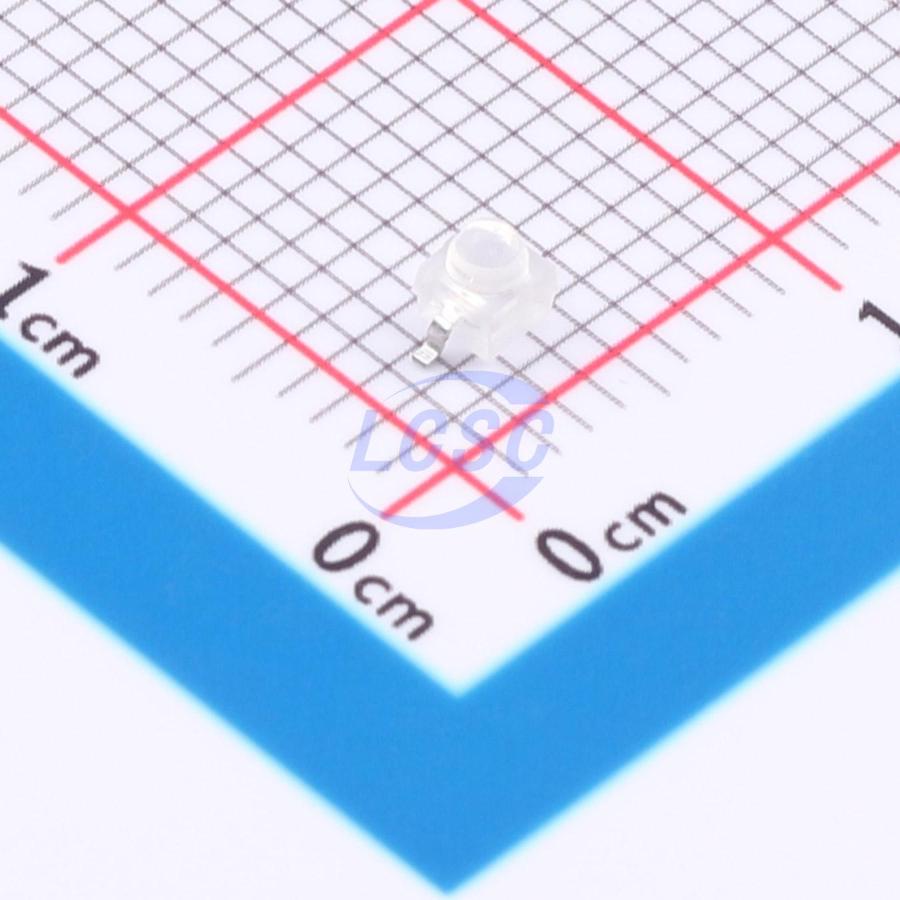

VLDB1232G-08
460nm 18° 3.5cd Blue 20mA 2.3mm square LED 3V 465nm SMD,2.3x2.3mm LED Indication - Discrete RoHS
- Manufacturer
- VISHAY
- Manufacturer part #
- VLDB1232G-08
- Store part #
- C7386534
- Package / case
- SMD,2.3x2.3mm
- Category
- LED Indication - Discrete
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,300 in stock
#C7386534
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹94.22 | ₹94.22 |
| 10+ | ₹75.73 | ₹757.30 |
| 30+ | ₹66.59 | ₹1,997.70 |
| 100+ | ₹57.67 | ₹5,767.00 |
| 500+ | ₹52.23 | ₹26,115.00 |
| 1,500+ | ₹49.40 | ₹74,100.00 |
1 × ₹94.22
₹94.22
excl. GST
₹111.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
VLDB1232G-08
₹94.22 for 1 + GST
Specifications
- Lens Color
- Water Clear
- Peak Wavelength
- 460nm
- Viewing Angle
- 18°
- Luminous Intensity
- 3.5cd
- Illumination Color
- Blue
- Forward Current
- 20mA
- Lamp Holder Type
- 2.3mm square LED
- Operating Temperature
- -40℃~+100℃
- Voltage - Forward(Vf)
- 3V
- Wavelength
- 465nm
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.081 g
Overview
The dome lens SMD LED series has been designed in a small untinted and clear molded package with lens for surface mounting as gullwing or reverse gullwing version. The VLD.1232... series is using recent ultrabright InGaN / sapphire chip technology with high luminous flux.
Applications
- Traffic signals and signs
- Interior and exterior lighting
- Smoke detectors
- Bio sensing
- Indicator and backlighting purposes for audio, video, LCDs switches, symbols, illuminated advertising etc.
Key features
- Utilizing latest advanced InGaN technology
- Package type: surface-mount
- Package form: gullwing, reverse gullwing
- Dimensions (L x W x H in mm): 2.3 × 2.3 × 2.8
- High luminous flux and luminous intensity
- Luminous intensity and color categorized per packing unit
- Luminous intensity ratio per packing unit IV_max / IV_min ≤ 1.6
- ESD - withstand voltage: up to 2 kV according to JESD22 - A114 - B
- Preconditioning according to JEDEC level 2a
- Suitable for reflow soldering according to J - STD - 020
