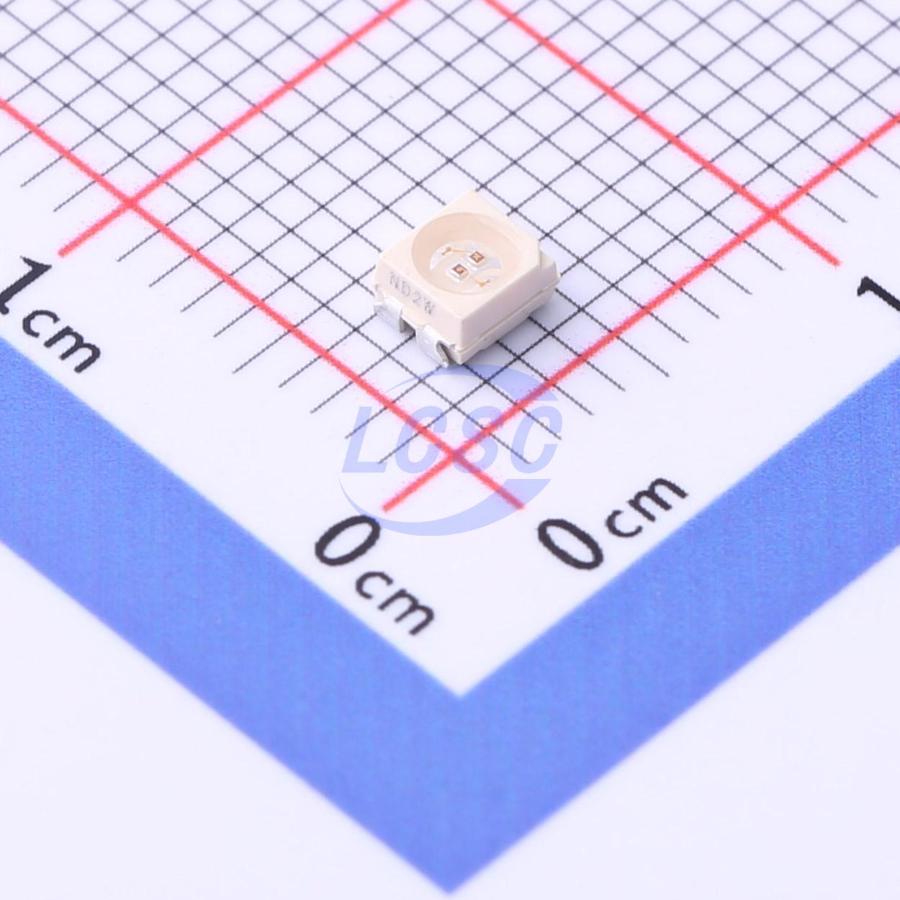

VISHAY

VLMV3100-GS08

Orange Red, Yellow Green 565nm 635nm LED Indication - Discrete 2.2V 2V SMD3528-3P

SMD3528-3PROHS3 CompliantActive

LED ORANGE RED, YELLOW GREEN SMD

Manufacturer: VISHAY
Manufacturer part #: VLMV3100-GS08
Store part #: C2979783
Package / case: SMD3528-3P
Category: LED Indication - Discrete
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,058 in stock

#C2979783

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹51.48	₹51.48
10+	₹39.97	₹399.70
30+	₹34.98	₹1,049.40
100+	₹28.89	₹2,889.00
500+	₹26.08	₹13,040.00
1,500+	₹24.33	₹36,495.00

Quantity (min 1)

1 × ₹51.48

₹51.48

excl. GST

₹60.75 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,500 per reel

VLMV3100-GS08

₹51.48 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Forward Current: 20mA
Voltage - Forward(Vf): 2.2V;2V
Operating Temperature: -40℃~+100℃
Diode Configuration: Common Cathode
Installation method: Top-mount
Peak Wavelength: 565nm;635nm
Lens Color: Water Clear
Luminous Intensity: 8mcd;10mcd
Viewing Angle: 120°
Illumination Color: Orange Red, Yellow Green
Wavelength: 571nm;620nm

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.096 g

Overview

These devices have been designed to meet the increasing demand for surface mounting technology. The package of the VLMV3100 is the PLCC-3. This SMD device consists of a red and green chip. So it is possible to choose the color in one device.

Applications

Telecommunication: Indicator and backlighting in telephone and fax
Indicator and backlight for audio and video equipment
Indicator and backlight in office equipment
Flat backlight for LCDs, switches, and symbols
General use

Key features

SMD LED with exceptional brightness
Dualcolor
Luminous intensity categorized e3
Compatible with automatic placement equipment
EIA and ICE standard package RoHS
Compatible with IR reflow, vapor phase and wave soldering processes according to CECC 00802 FREE and J-STD-020 GREEN (5-2008)
Available in 8 mm tape
Low profile package
Non-diffused lens: Excellent for coupling to light pipes and backlighting
Low power consumption
Luminous intensity ratio in one packaging unit IVmax./IVmin. ≤ 1.6
Preconditioning according to JEDEC level 2a
ESD-withstand voltage: Up to 2 kV according to JESD22-A114-B
