VS-10BQ100HM3/5BT

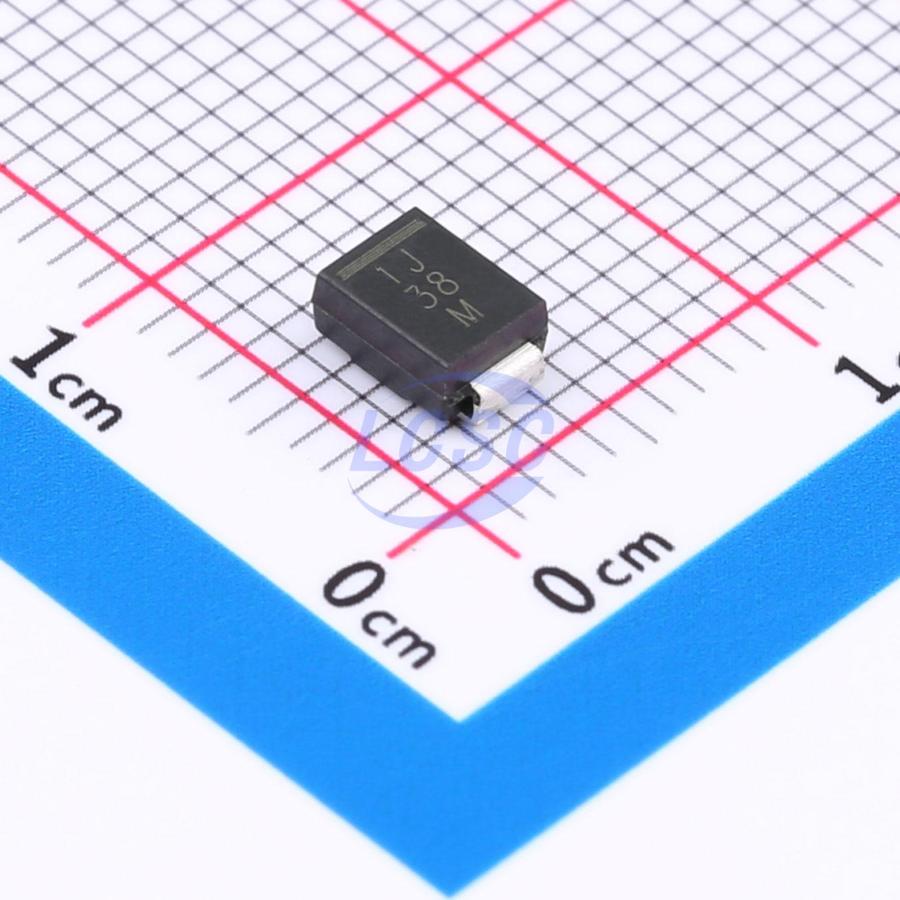

Diode 1 Independent 100V 1A Surface Mount DO-214AA(SMB)
DO-214AA(SMB)ROHS3 CompliantActive
DIODE SCHOTTKY 100V DO-214AA(SMB)
- Manufacturer
- VISHAY
- Manufacturer part #
- VS-10BQ100HM3/5BT
- Store part #
- C3757401
- Package / case
- DO-214AA(SMB)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C3757401
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹180.13 | ₹180.13 |
| 10+ | ₹153.04 | ₹1,530.40 |
| 30+ | ₹139.50 | ₹4,185.00 |
| 100+ | ₹125.96 | ₹12,596.00 |
| 500+ | ₹117.79 | ₹58,895.00 |
| 1,000+ | ₹113.71 | ₹1,13,710.00 |
1 × ₹180.13
₹180.13
excl. GST
₹212.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,200 per reel
VS-10BQ100HM3/5BT
₹180.13 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 590mV@1A
- Reverse Leakage Current (Ir)
- 500uA@100V
- Non-Repetitive Peak Forward Surge Current
- 780A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,200 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Overview
The VS- 10BQ100HM3 surface- mount Schottky rectifier has been designed for applications requiring low forward drop and very small foot prints on PC boards. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reverse battery protection.
Applications
- Disk drives
- Switching power supplies
- Converters
- Freewheeling diodes
- Battery charging
- Reverse battery protection
Key features
- Low forward voltage drop
- Guard ring for enhanced ruggedness and long term reliability
- Halogen FREE
- Small foot print, surface mountable
- High frequency operation
- Meets MSL level 1, per J- STD- 020, LF maximum peak of 260℃
- Meets JESD 201 class 2 whisker test
- AEC- Q101 qualified
