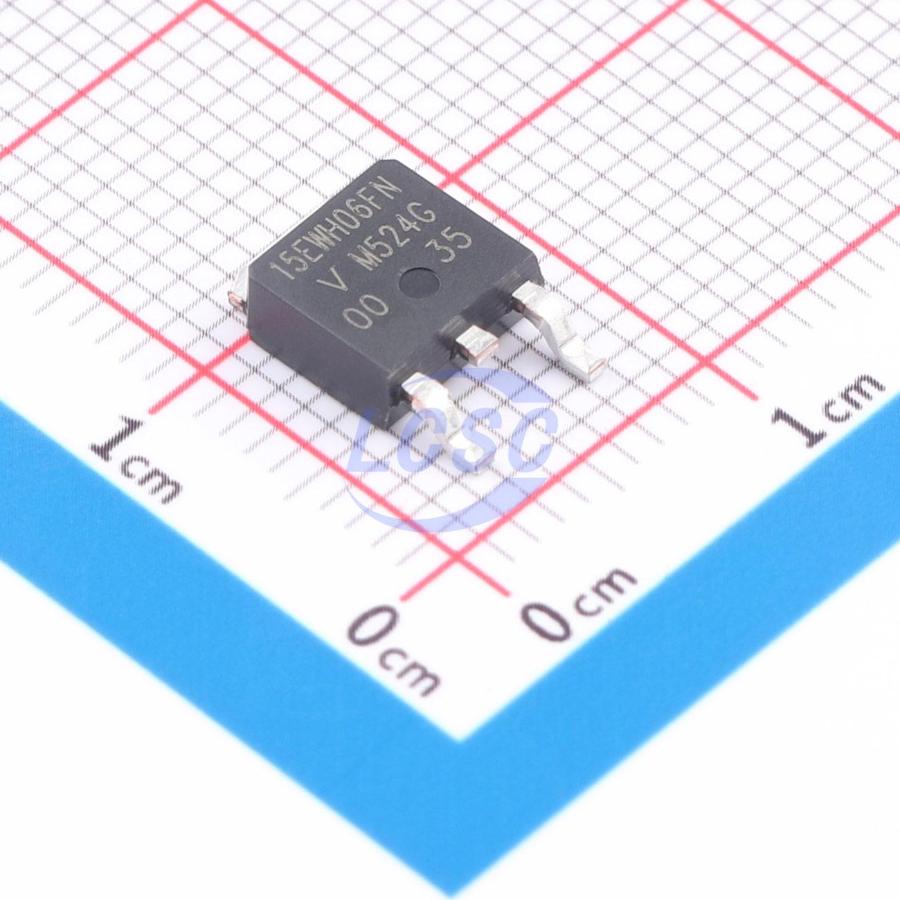

VS-15EWH06FNTR-M3
Diode Independent 600V 15A Surface Mount D-PAK(TO-252AA)
DIODE GP 600V 15A D-PAK(TO-252AA)
- Manufacturer
- VISHAY
- Manufacturer part #
- VS-15EWH06FNTR-M3
- Store part #
- C17428100
- Package / case
- D-PAK(TO-252AA)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17 in stock
#C17428100
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹227.73 | ₹227.73 |
| 10+ | ₹189.27 | ₹1,892.70 |
| 30+ | ₹167.98 | ₹5,039.40 |
| 100+ | ₹144.07 | ₹14,407.00 |
| 500+ | ₹133.42 | ₹66,710.00 |
| 1,000+ | ₹128.65 | ₹1,28,650.00 |
1 × ₹227.73
₹227.73
excl. GST
₹268.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
VS-15EWH06FNTR-M3
₹227.73 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 36ns
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - Forward(Vf@If)
- 2.1V@15A
- Reverse Leakage Current (Ir)
- 50uA@600V
- Non-Repetitive Peak Forward Surge Current
- 120A
- Current - Rectified
- 15A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
State of the art hyperfast recovery rectifiers designed with optimized performance of forward voltage drop, hyperfast recovery time, and soft recovery. The planar structure and the platinum doped life time control guarantee the best overall performance, ruggedness and reliability characteristics. These devices are intended for use in PFC boost stage in the AC/DC section of SMPS inverters or as freewheeling diodes. Their extremely optimized stored charge and low recovery current minimize the switching losses and reduce over dissipation in the switching element and snubbers.
Applications
- PFC boost stage in the AC/DC section of SMPS inverters
- Freewheeling diodes
Key features
- Hyperfast recovery time, reduced Qrr and soft recovery
- 175 ℃ maximum operating junction temperature
- For PFC CRM/CCM operation Rol
- Low forward voltage drop COMPL
- Low leakage current HALR
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 ℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| VS-15EWH06FNTRL-M3#C17376335VISHAY · D-PAK(TO-252AA) | VISHAY | D-PAK(TO-252AA) | On request | ₹164.33 · 0 in stock | View | |
| VS-15EWH06FNTRR-M3#C17336671VISHAY · D-PAK(TO-252AA) | VISHAY | D-PAK(TO-252AA) | On request | ₹187.77 · 0 in stock | View | |
| VS-15EWX06FNTRR-M3#C17349487VISHAY · D-PAK(TO-252AA) | VISHAY | D-PAK(TO-252AA) | On request | ₹164.33 · 0 in stock | View | |
| VS-15EWX06FNTRL-M3#C17565961VISHAY · D-PAK(TO-252AA) | VISHAY | D-PAK(TO-252AA) | On request | ₹164.33 · 0 in stock | View | |
| VS-15EWL06FNTRL-M3#C17249244VISHAY · D-PAK(TO-252AA) | VISHAY | D-PAK(TO-252AA) | On request | ₹187.77 · 0 in stock | View | |
