VISHAYDatasheet (PDF)

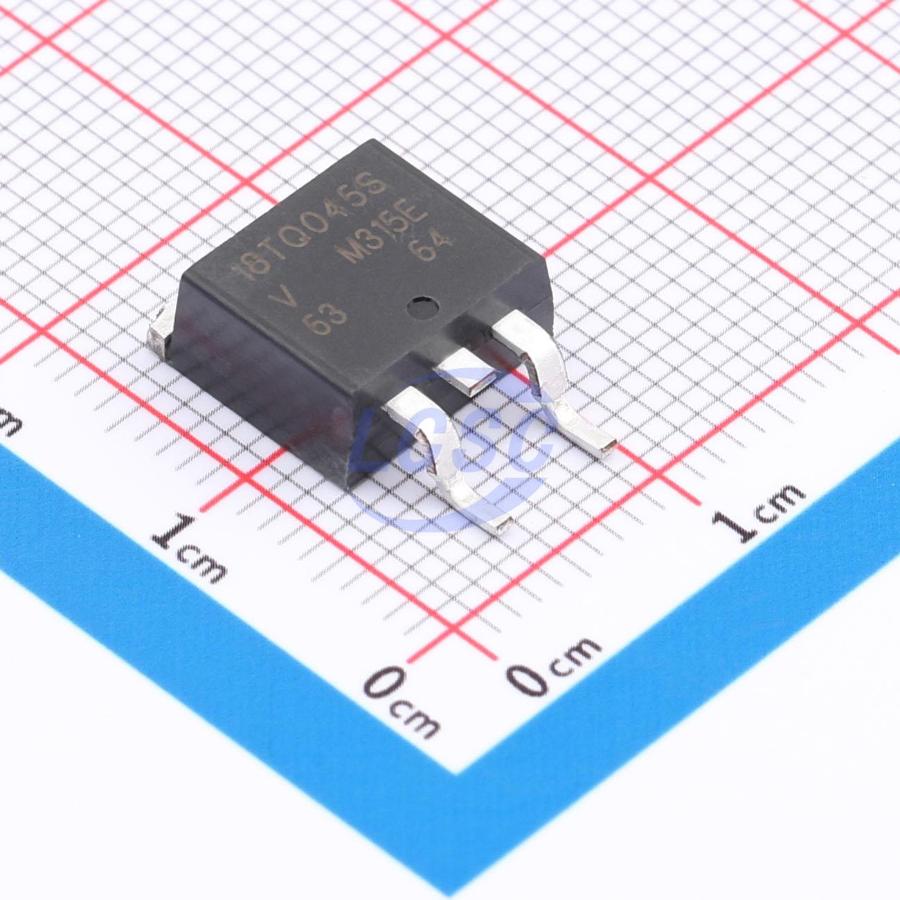

VS-18TQ045S-M3
1 Independent 45V 600mV@18A 18A TO-263AB(D2PAK) Single Diodes RoHS
TO-263AB(D2PAK)ROHS3 CompliantActive
DIODE SCHOTTKY 45V TO-263AB(D2PAK)
- Manufacturer
- VISHAY
- Manufacturer part #
- VS-18TQ045S-M3
- Store part #
- C5831361
- Package / case
- TO-263AB(D2PAK)
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28 in stock
#C5831361
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹193.40 | ₹193.40 |
| 10+ | ₹188.83 | ₹1,888.30 |
| 50+ | ₹186.01 | ₹9,300.50 |
| 100+ | ₹182.97 | ₹18,297.00 |
1 × ₹193.40
₹193.40
excl. GST
₹228.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VS-18TQ045S-M3
₹193.40 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 45V
- Voltage - Forward(Vf@If)
- 600mV@18A
- Reverse Leakage Current (Ir)
- 2.5mA@35V
- Non-Repetitive Peak Forward Surge Current
- 1.8kA
- Current - Rectified
- 18A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.727 g
Overview
VS - 18TQ... Schottky rectifier series is optimized for low reverse leakage at elevated temperatures. Its patented barrier technology enables reliable operation at junction temperatures up to 175°C. Typical applications include switching power supplies, converters, freewheeling diodes, and reverse battery protection.
Key features
- Operation up to 175°C junction temperature
- Low forward voltage drop
- High-frequency operation
- High-purity, high-temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
- Guard ring for improved ruggedness and long-term reliability
- MSL 1 per J-STD-020, LF max peak of 245°C
- Designed and qualified per JEDEC-JESD 47
- Material categorization: for compliance definitions, see www.vishay.com/doc?99912, RoHS compliant, halogen-free
