VISHAYDatasheet (PDF)

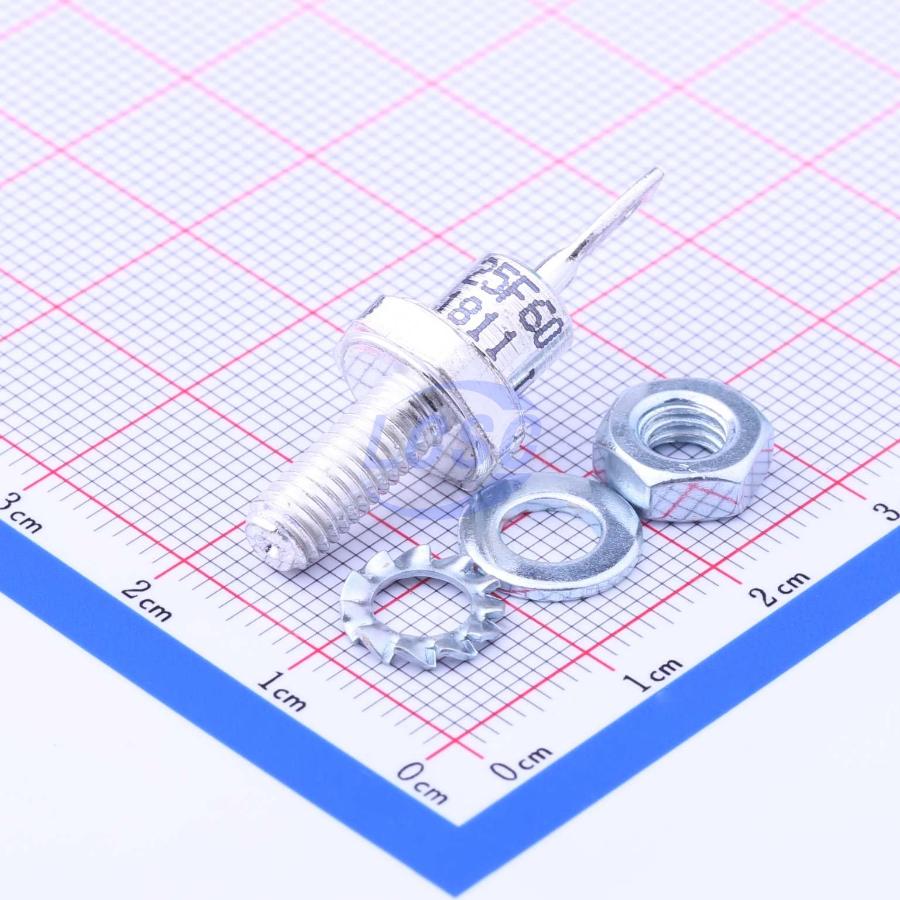

VS-25F60
Diode 600V 25A DO-203AA
DO-203AAROHS3 CompliantActive
DIODE STANDARD 600V 25A DO-203AA
- Manufacturer
- VISHAY
- Manufacturer part #
- VS-25F60
- Store part #
- C222531
- Package / case
- DO-203AA
- Category
- Single Diodes
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
94 in stock
#C222531
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹742.14 | ₹742.14 |
| 10+ | ₹705.00 | ₹7,050.00 |
| 30+ | ₹682.46 | ₹20,473.80 |
| 100+ | ₹663.35 | ₹66,335.00 |
1 × ₹742.14
₹742.14
excl. GST
₹875.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 100 per bag
VS-25F60
₹742.14 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -65℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 1.3V@78A
- Reverse Leakage Current (Ir)
- 12mA@600V
- Non-Repetitive Peak Forward Surge Current
- 373A
- Current - Rectified
- 25A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 100 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 7.2 g
Overview
Applications
- Battery charges
- Converters
- Power supplies
- Machine tool controls
Key features
- High surge current capability
- Stud cathode and stud anode version RoHS COMPLIANT
- Wide current range
- Types up to 1200 V_RRM
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| VS-25F100#C17188018VISHAY · DO-203AA(DO-4) | VISHAY | DO-203AA(DO-4) | 7 | ₹1,515.54 · 7 in stock | View | |
 | VS25F120#C506214VISHAY · DO-203AA | VISHAY | DO-203AA | On request | ₹809.03 · 0 in stock | View |
 | VS25FR60#C506215VISHAY · DO-203AA | VISHAY | DO-203AA | On request | ₹713.60 · 0 in stock | View |
| VS-25FR60M#C17327023VISHAY · DO-203AA(DO-4) | VISHAY | DO-203AA(DO-4) | On request | ₹2,125.77 · 0 in stock | View | |
| VS-25F60M#C17642893VISHAY · DO-203AA(DO-4) | VISHAY | DO-203AA(DO-4) | On request | ₹2,125.77 · 0 in stock | View | |
