VISHAYDatasheet (PDF)

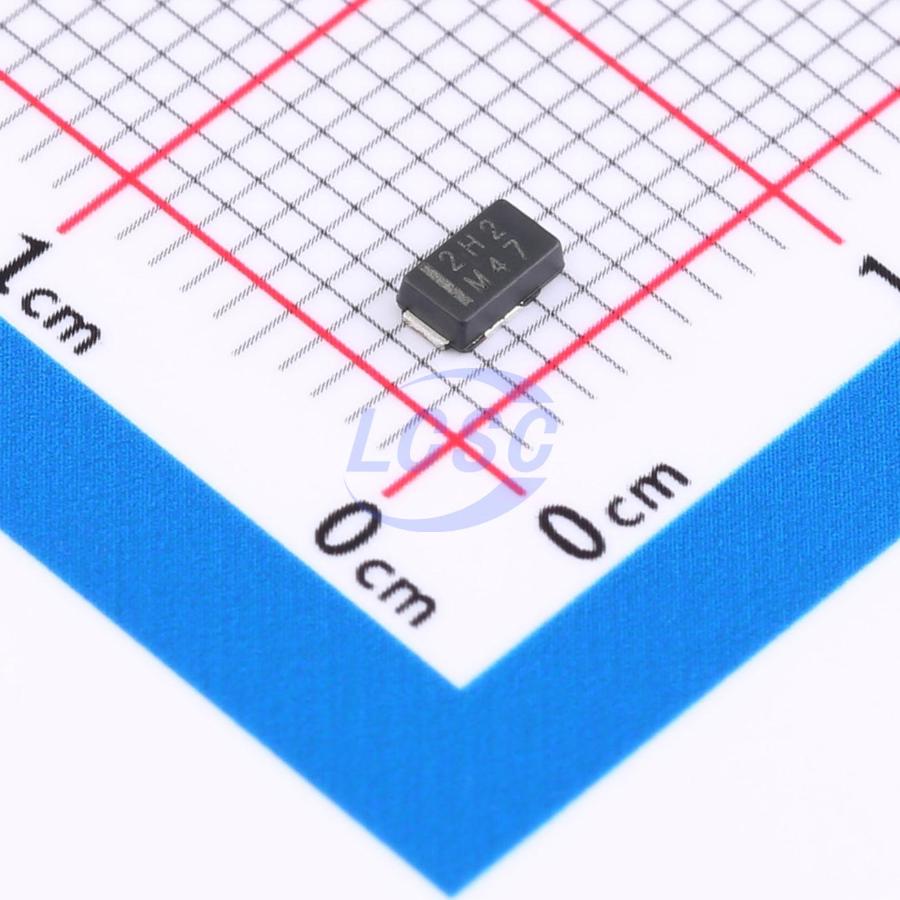

VS-2ENH02-M3/84A
Diode Independent 200V 2A Surface Mount DO-220AA(SMP)
DO-220AA(SMP)ROHS CompliantActive
DIODE GP 200V 2A DO-220AA(SMP)
- Manufacturer
- VISHAY
- Manufacturer part #
- VS-2ENH02-M3/84A
- Store part #
- C17294208
- Package / case
- DO-220AA(SMP)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C17294208
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.45 | ₹112.25 |
| 50+ | ₹21.96 | ₹1,098.00 |
| 150+ | ₹21.64 | ₹3,246.00 |
| 500+ | ₹21.31 | ₹10,655.00 |
5 × ₹22.45
₹112.25
excl. GST
₹132.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
VS-2ENH02-M3/84A
₹112.25 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 23ns
- Diode Configuration
- Standalone
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - Forward(Vf@If)
- 1V@2A
- Reverse Leakage Current (Ir)
- 2uA
- Non-Repetitive Peak Forward Surge Current
- 40A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.126 g
Overview
Applications
- High-frequency, freewheeling, DC/DC converter, PFC, and snubber industrial and automotive applications
Key features
- Ultra-thin profile
- Typical height 1.0mm, compatible with automated placement
- Low forward voltage drop, low power dissipation
- Low leakage current
- MSL Level 1 per J-STD-020, LF max peak temperature 260℃
- Suitable for PFC, CRM snubber operation
