VISHAYDatasheet (PDF)

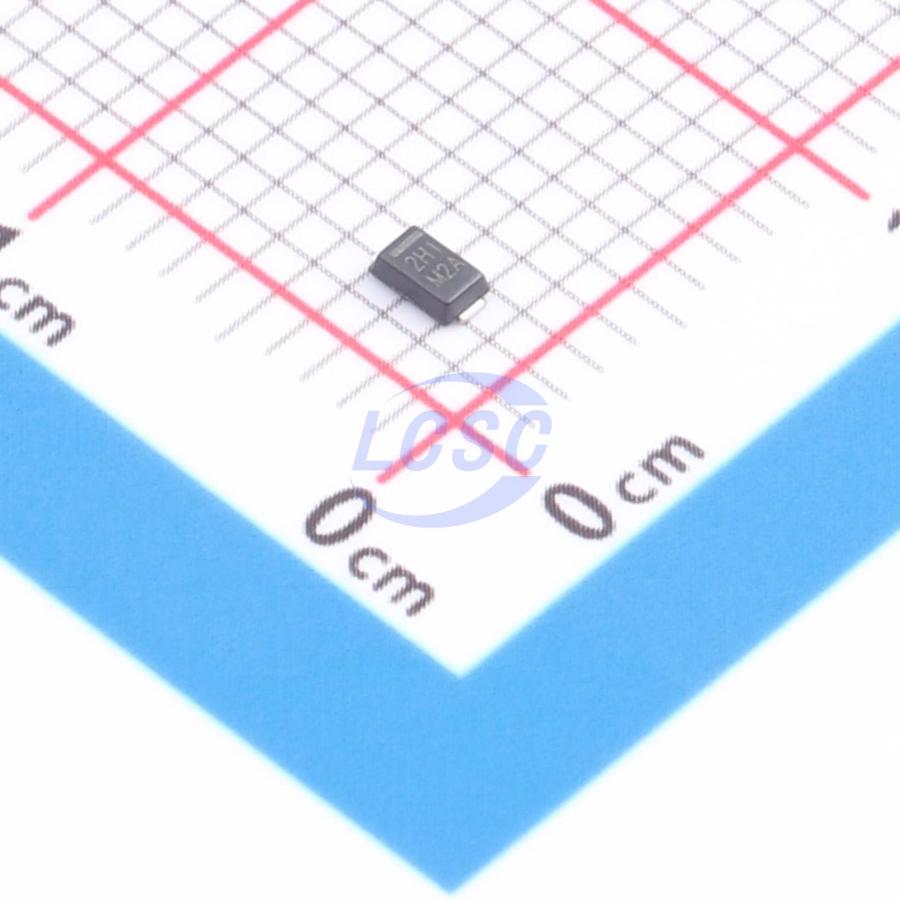

VS-2EQH01-M3/H
Diode 100V 2A Surface Mount DO-220AA(SMP)
DO-220AA(SMP)ROHS3 CompliantActive
DIODE GP 100V 2A DO-220AA(SMP)
- Manufacturer
- VISHAY
- Manufacturer part #
- VS-2EQH01-M3/H
- Store part #
- C17260822
- Package / case
- DO-220AA(SMP)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C17260822
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.94 | ₹134.70 |
| 50+ | ₹21.39 | ₹1,069.50 |
| 150+ | ₹19.01 | ₹2,851.50 |
| 500+ | ₹16.03 | ₹8,015.00 |
| 2,500+ | ₹14.72 | ₹36,800.00 |
| 4,500+ | ₹13.93 | ₹62,685.00 |
5 × ₹26.94
₹134.70
excl. GST
₹158.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,500 per reel
VS-2EQH01-M3/H
₹134.70 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 23ns
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - Forward(Vf@If)
- 1.05V@2A
- Reverse Leakage Current (Ir)
- 1uA@100V
- Non-Repetitive Peak Forward Surge Current
- 30A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.078 g
Overview
Applications
- High-frequency, freewheeling, DC/DC converter, PFC, and snubber industrial and automotive applications
Key features
- Ultra-thin profile
- Typical height 0.65mm, suitable for automated pick-and-place
- Low forward voltage drop, low power dissipation
- Low leakage current
- MSL Level 1 per J-STD-020, LF max peak temperature 260℃
- Suitable for PFC, CRM snubber operation
- Material Category: For the definition of compliance, see www.vishay.com/doc?299912
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VS-2EQH02-M3/H#C17615247VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 30 | ₹18.95 · 30 in stock | View |
| VS-2ENH01-M3/84A#C17225828VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 90 | ₹28.79 · 90 in stock | View | |
| ESH2PBHM3/85A#C17198763VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | On request | ₹48.02 · 0 in stock | View | |
| ESH2PB-M3/85A#C17558722VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | On request | ₹41.50 · 0 in stock | View | |
| ESH2PC-M3/85A#C17251503VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | On request | ₹45.26 · 0 in stock | View | |
