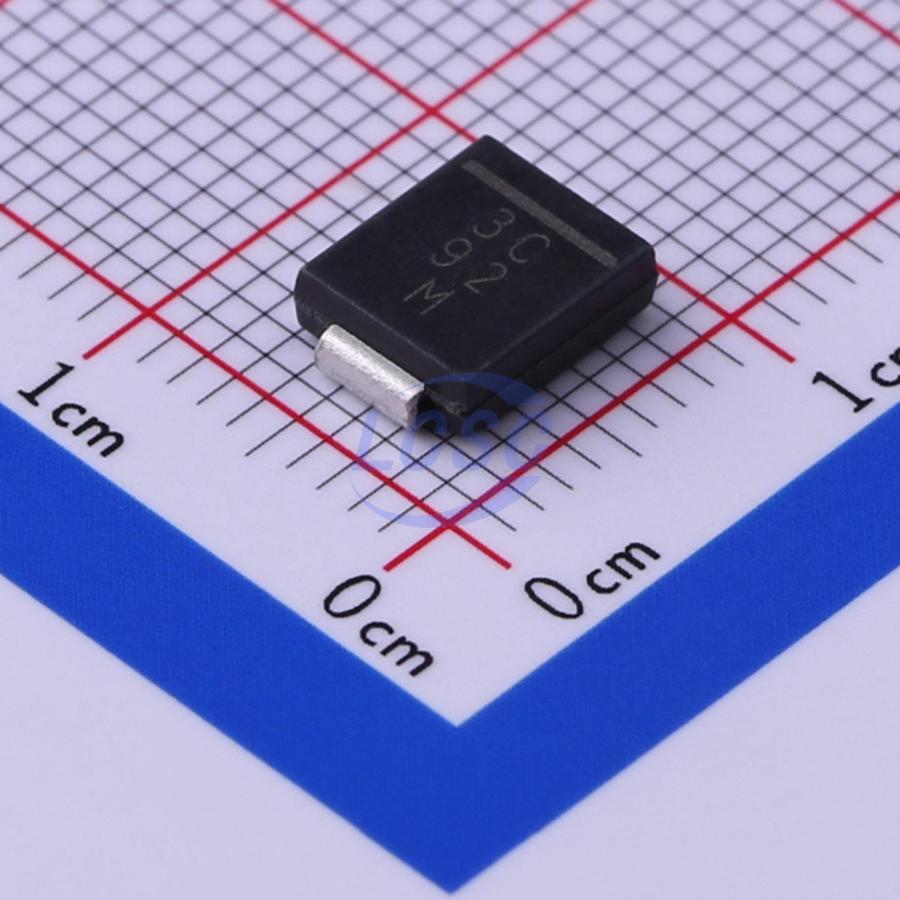

VS-30BQ015-M3/9AT
Diode 15V 3A Surface Mount DO-214AB(SMC)
DIODE SCHOTTKY 15V DO-214AB(SMC)
- Manufacturer
- VISHAY
- Manufacturer part #
- VS-30BQ015-M3/9AT
- Store part #
- C468074
- Package / case
- DO-214AB(SMC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,549 in stock
#C468074
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹43.22 | ₹43.22 |
| 10+ | ₹37.80 | ₹378.00 |
| 30+ | ₹35.40 | ₹1,062.00 |
| 100+ | ₹32.37 | ₹3,237.00 |
| 500+ | ₹31.06 | ₹15,530.00 |
| 1,000+ | ₹28.89 | ₹28,890.00 |
1 × ₹43.22
₹43.22
excl. GST
₹51.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
VS-30BQ015-M3/9AT
₹43.22 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 15V
- Voltage - Forward(Vf@If)
- 350mV@3A
- Reverse Leakage Current (Ir)
- 4mA@15V
- Non-Repetitive Peak Forward Surge Current
- 650A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.28 g
Overview
The VS-30BQ015-M3 surface mount Schottky rectifier has been designed for applications requiring low forward drop and very small foot prints on PC boards. The proprietary barrier technology allows for reliable operation up to 125℃ junction temperature. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reverse battery protection.
Applications
- Disk drives
- Switching power supplies
- Converters
- Freewheeling diodes
- Battery charging
- Reverse battery protection
Key features
- Ultralow forward voltage drop
- Guard ring for enhanced ruggedness and long term reliability
- 125℃ TJ operation (VR < 5V)
- Optimized for OR-ing applications
- High frequency operation
- High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| VS-30BQ015HM3/9AT#C3757736VISHAY · DO-214AB(SMC) | VISHAY | DO-214AB(SMC) | 90 | ₹177.57 · 90 in stock | View | |
 | MBRS540T3G-FS#C5563743FUXINSEMI · SMC(DO-214AB) | FUXINSEMI | SMC(DO-214AB) | 9,940 | ₹22.95 · 9,940 in stock | View |
 | SL43-E3/57T#C5224066VISHAY · DO-214AB(SMC) | VISHAY | DO-214AB(SMC) | 776 | ₹108.01 · 776 in stock | View |
 | SL43-M3/57T#C5899310VISHAY · DO-214AB(SMC) | VISHAY | DO-214AB(SMC) | 14 | ₹114.96 · 14 in stock | View |
 | VS-MBRS340-M3#C5338054Tokmas · DO-214AB | Tokmas | DO-214AB | 3,220 | ₹7.47 · 3,220 in stock | View |
