VS-30BQ060HM3/9AT

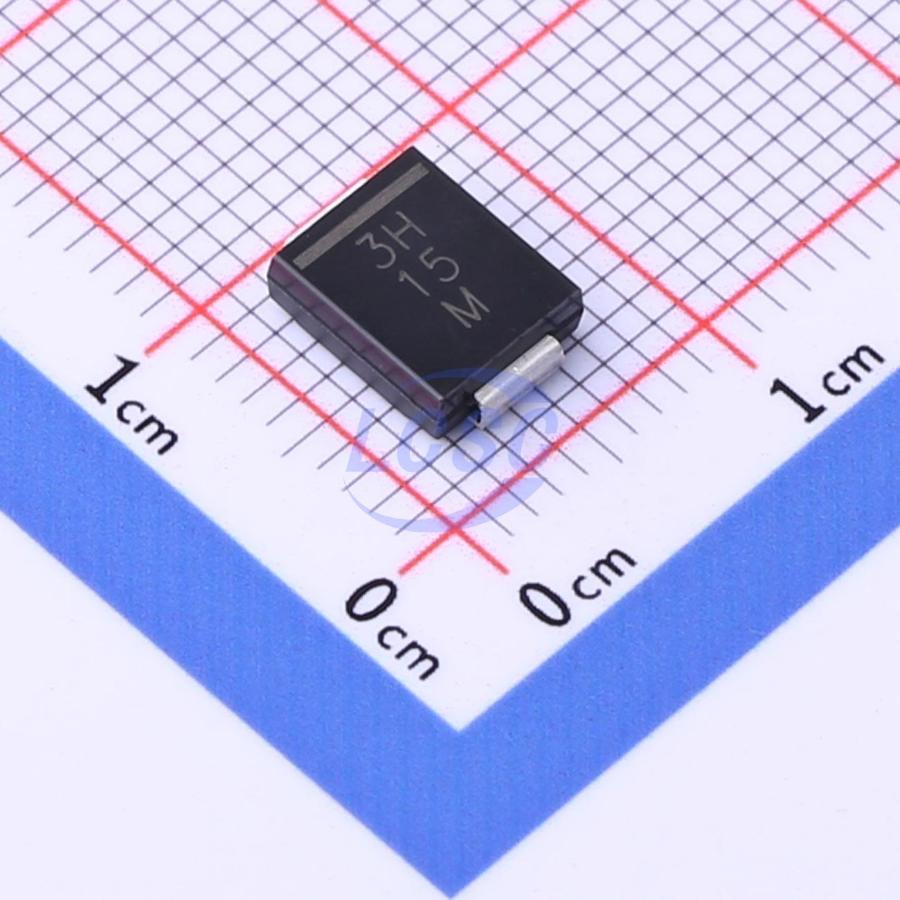

Diode 1 Independent 60V 3A Surface Mount DO-214AB(SMC)
DO-214AB(SMC)ROHS3 CompliantActive
DIODE SCHOTTKY 60V DO-214AB(SMC)
- Manufacturer
- VISHAY
- Manufacturer part #
- VS-30BQ060HM3/9AT
- Store part #
- C2928652
- Package / case
- DO-214AB(SMC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,530 in stock
#C2928652
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.64 | ₹213.20 |
| 50+ | ₹33.17 | ₹1,658.50 |
| 150+ | ₹29.11 | ₹4,366.50 |
| 500+ | ₹24.05 | ₹12,025.00 |
| 3,500+ | ₹21.79 | ₹76,265.00 |
| 7,000+ | ₹20.44 | ₹1,43,080.00 |
5 × ₹42.64
₹213.20
excl. GST
₹251.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
VS-30BQ060HM3/9AT
₹213.20 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 760mV@6A
- Reverse Leakage Current (Ir)
- 500uA@60V
- Non-Repetitive Peak Forward Surge Current
- 1.2kA
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.33 g
Overview
The VS- 30BQ060HM3 surface mount Schottky rectifier has been designed for applications requiring low forward drop and small foot prints on PC boards. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reverse battery protection.
Applications
- Disk drives
- Switching power supplies
- Converters
- Freewheeling diodes
- Battery charging
- Reverse battery protection
Key features
- Low forward voltage drop
- Guard ring for enhanced ruggedness and long term reliability
- Small foot print, surface mountable
- High frequency operation
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- Meets JESD 201 class 2 whisker test
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
