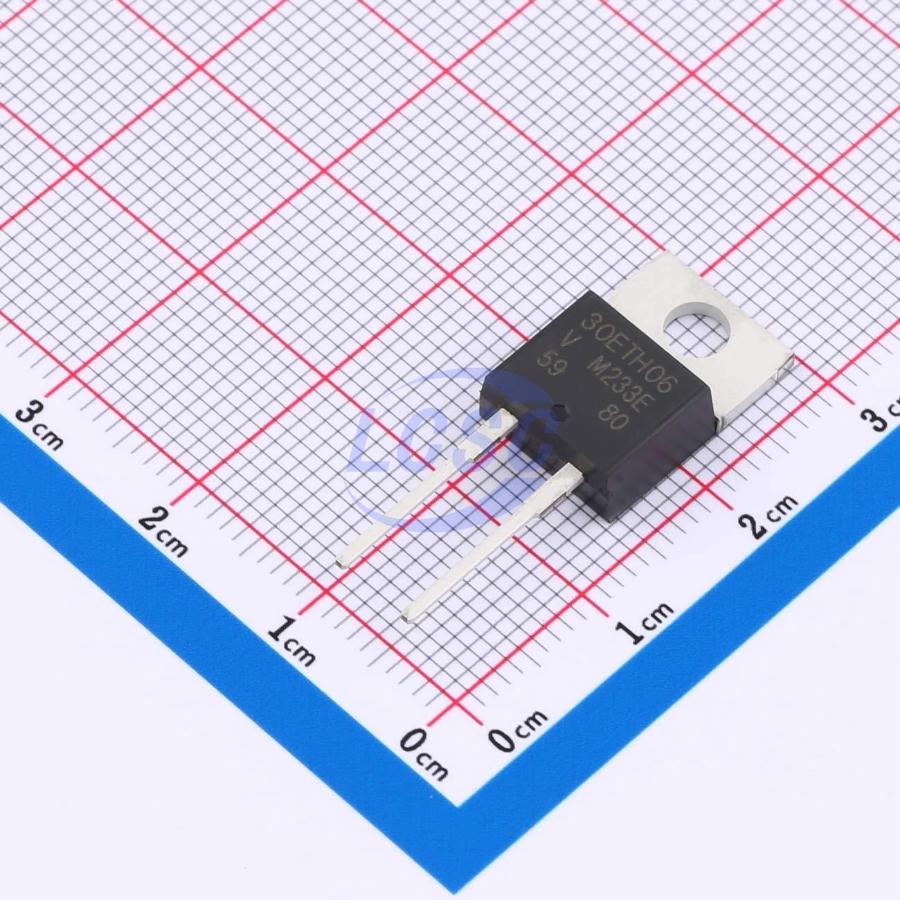

VS-30ETH06-M3
31ns 1 Independent 600V 2V@30A 30A TO-220AC-2 Single Diodes RoHS
Diode 600V 30A TO-220AC-2
- Manufacturer
- VISHAY
- Manufacturer part #
- VS-30ETH06-M3
- Store part #
- C468083
- Package / case
- TO-220AC-2
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,558 in stock
#C468083
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹198.61 | ₹198.61 |
| 10+ | ₹165.47 | ₹1,654.70 |
| 30+ | ₹147.38 | ₹4,421.40 |
| 100+ | ₹127.10 | ₹12,710.00 |
| 500+ | ₹117.95 | ₹58,975.00 |
| 1,000+ | ₹113.80 | ₹1,13,800.00 |
1 × ₹198.61
₹198.61
excl. GST
₹234.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VS-30ETH06-M3
₹198.61 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 31ns
- Operating Junction Temperature Range
- -65℃~+175℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Voltage - Forward(Vf@If)
- 2V@30A
- Reverse Leakage Current (Ir)
- 300nA
- Non-Repetitive Peak Forward Surge Current
- 200A
- Current - Rectified
- 30A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.795 g
Overview
State of the art hyperfast recovery rectifiers designed with optimized performance of forward voltage drop, hyperfast recovery time and soft recovery. The planar structure and the platinum doped life time control guarantee the best overall performance, ruggedness and reliability characteristics. These devices are intended for use in PFC boost stage in the AC/DC section of SMPS, inverters or as freewheeling diodes. Their extremely optimized stored charge and low recovery current minimize the switching losses and reduce over dissipation in the switching element and snubbers.
Applications
- PFC boost stage in the AC/DC section of SMPS
- inverters
- freewheeling diodes
Key features
- Reduced Qrr and soft recovery
- 175 ℃ TJ maximum
- For PFC CRM/CCM operation
- Low forward voltage drop
- Low leakage current
- Designed and qualified according to JEDEC -JESD 47
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DSEP29-12A#C444860Littelfuse/IXYS · TO-220-2 | Littelfuse/IXYS | TO-220-2 | 9 | ₹409.65 · 9 in stock | View |
 | STTH30RQ06D#C2971432ST · TO-220-2 | ST | TO-220-2 | 13 | ₹353.80 · 13 in stock | View |
 | ESTF30SS60SC#C5353727MASPOWER · TO-220AC | MASPOWER | TO-220AC | 25 | ₹140.16 · 25 in stock | View |
 | DSEP29-06A#C426666Littelfuse/IXYS · TO-220-2 | Littelfuse/IXYS | TO-220-2 | 1,629 | ₹259.24 · 1,629 in stock | View |
 | RHRP3060-SPT#C52741674SPTECH · TO-220C-2 | SPTECH | TO-220C-2 | 46 | ₹91.67 · 46 in stock | View |
