VISHAYDatasheet (PDF)

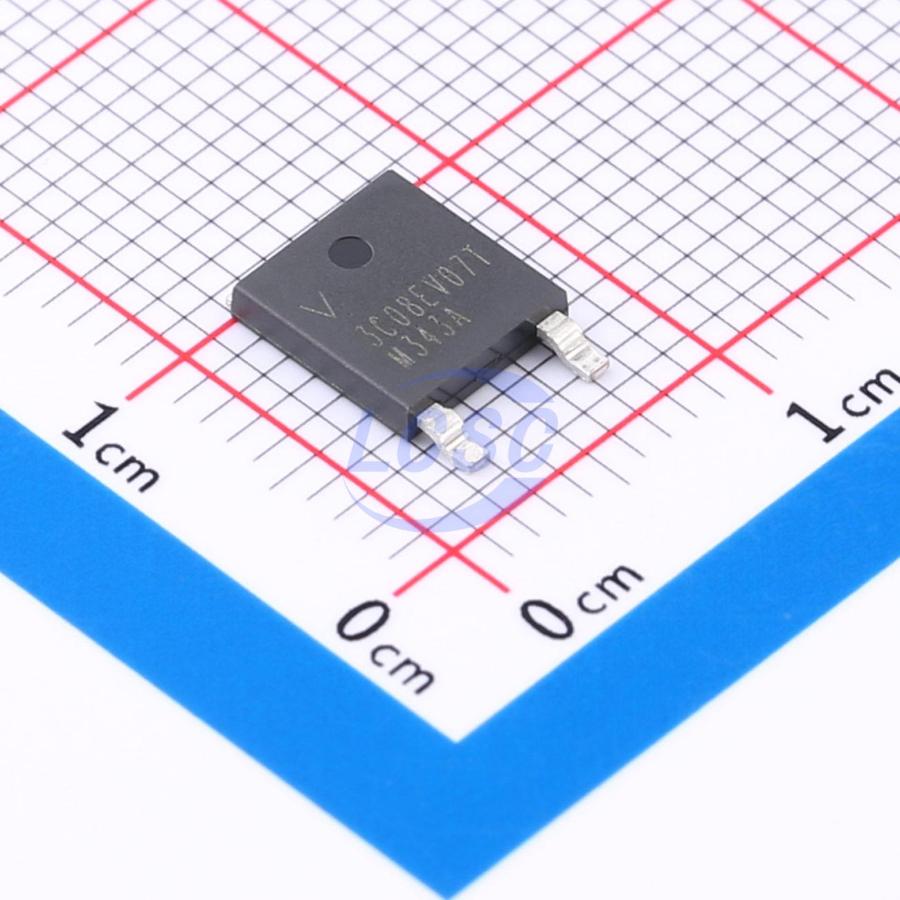

VS-3C08EV07T-M3/I
650V 1.5V@8A 8A SlimDPAK Single Diodes RoHS
SlimDPAKROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- VS-3C08EV07T-M3/I
- Store part #
- C20491965
- Package / case
- SlimDPAK
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C20491965
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹666.06 | ₹666.06 |
| 10+ | ₹651.31 | ₹6,513.10 |
| 30+ | ₹641.56 | ₹19,246.80 |
| 100+ | ₹631.59 | ₹63,159.00 |
1 × ₹666.06
₹666.06
excl. GST
₹785.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,500 per reel
VS-3C08EV07T-M3/I
₹666.06 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 650V
- Voltage - Forward(Vf@If)
- 1.5V@8A
- Reverse Leakage Current (Ir)
- 90uA@650V
- Non-Repetitive Peak Forward Surge Current
- 52A
- Current - Rectified
- 8A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.72 g
Overview
650V Schottky diode based on wide-bandgap silicon carbide material, designed for high performance and robustness. It is the optimal choice for high-speed hard switching and efficient operation across a wide temperature range, and is also recommended for all applications affected by silicon ultra-fast recovery characteristics.
Applications
- AC/DC power factor correction
- DC/DC ultra-high frequency output rectification
Key features
- Minimum creepage distance and clearance: 2.8 mm
- Ultra-low profile, typical height 1.3 mm
- Schottky technology based on wide-bandgap silicon carbide material, majority carrier diode
- Improved VF and efficiency via thin wafer technology
- Positive temperature coefficient VF for easy paralleling
- Virtually no recovery tail, no switching losses
- Temperature-independent switching behavior
- Maximum operating junction temperature: 175°C
- MPS structure for high robustness against forward surge current events
- Compliant with JESD 201 Class 2 whisker testing
- MSL Level 1 compliant per J-STD-020, maximum reflow peak temperature 260°C
- Material classification: refer to website for compliance definitions
