VISHAYDatasheet (PDF)

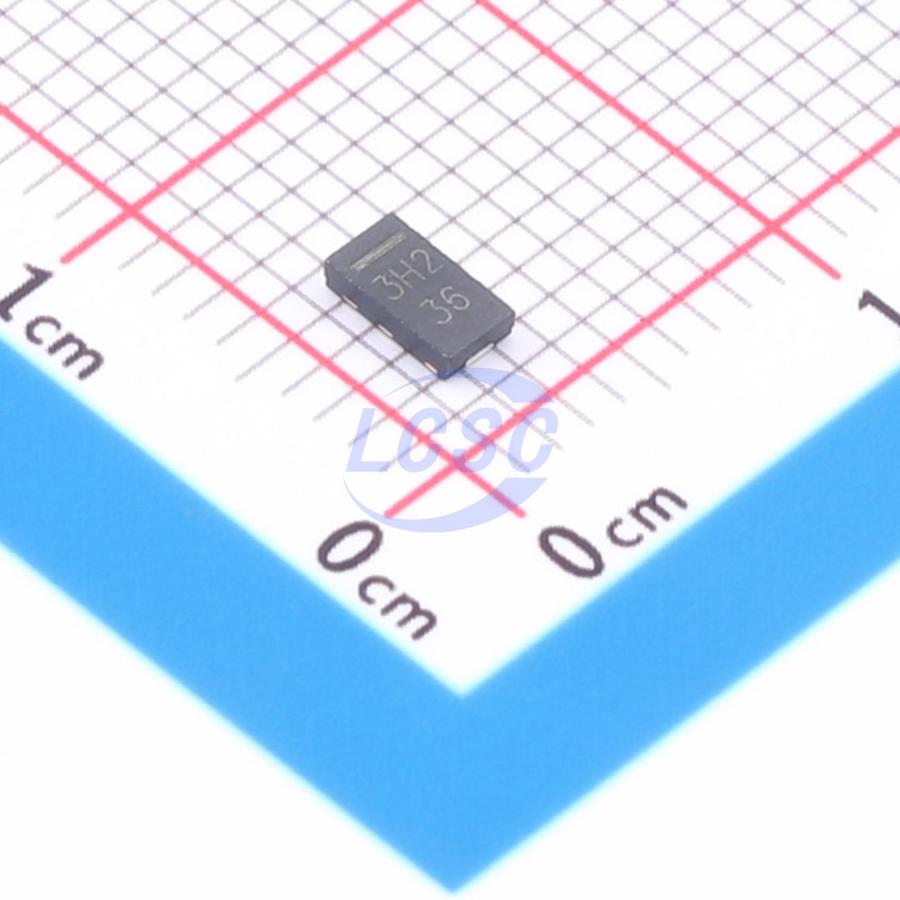

VS-3EAH02HM3/I
15ns 200V 1 Independent 900mV@3A 3A DFN3820A Single Diodes RoHS
DFN3820AROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- VS-3EAH02HM3/I
- Store part #
- C20039191
- Package / case
- DFN3820A
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28 in stock
#C20039191
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹215.16 | ₹215.16 |
| 10+ | ₹188.29 | ₹1,882.90 |
| 30+ | ₹173.46 | ₹5,203.80 |
| 100+ | ₹156.91 | ₹15,691.00 |
| 500+ | ₹149.39 | ₹74,695.00 |
| 1,000+ | ₹146.17 | ₹1,46,170.00 |
1 × ₹215.16
₹215.16
excl. GST
₹253.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 14,000 per reel
VS-3EAH02HM3/I
₹215.16 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 15ns
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - Forward(Vf@If)
- 900mV@3A
- Reverse Leakage Current (Ir)
- 2uA
- Non-Repetitive Peak Forward Surge Current
- 61A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 14,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
Applications
- High-frequency inverters
- DC/DC converters
- Freewheeling diodes
- Clamping and snubbers
- Polarity protection
Key features
- Ultra-thin profile, typical height 0.88mm
- Ideal for automated pick-and-place assembly
- Solderable wings enable AOI without X-ray inspection
- Low forward voltage drop, reduced power dissipation
- Low leakage current
- MSL Level 1 per J-STD-020, LF peak temperature 260℃
- Suitable for PFC, CRM snubber operation
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VS-5EAH02-M3/H#C20039196VISHAY · DFN3820A | VISHAY | DFN3820A | 30 | ₹78.49 · 30 in stock | View |
| VS-3EAH02-M3/H#C20039188VISHAY · DFN3820A | VISHAY | DFN3820A | On request | ₹20.77 · 0 in stock | View | |
| VS-3EAH02-M3/I#C20039189VISHAY · DFN3820A | VISHAY | DFN3820A | On request | ₹31.69 · 0 in stock | View | |
| VS-3EAH02HM3/H#C20039190VISHAY · DFN3820A | VISHAY | DFN3820A | On request | ₹65.55 · 0 in stock | View | |
| VS-5EAH02-M3/I#C20039197VISHAY · DFN3820A | VISHAY | DFN3820A | On request | ₹44.44 · 0 in stock | View | |
