VISHAYDatasheet (PDF)

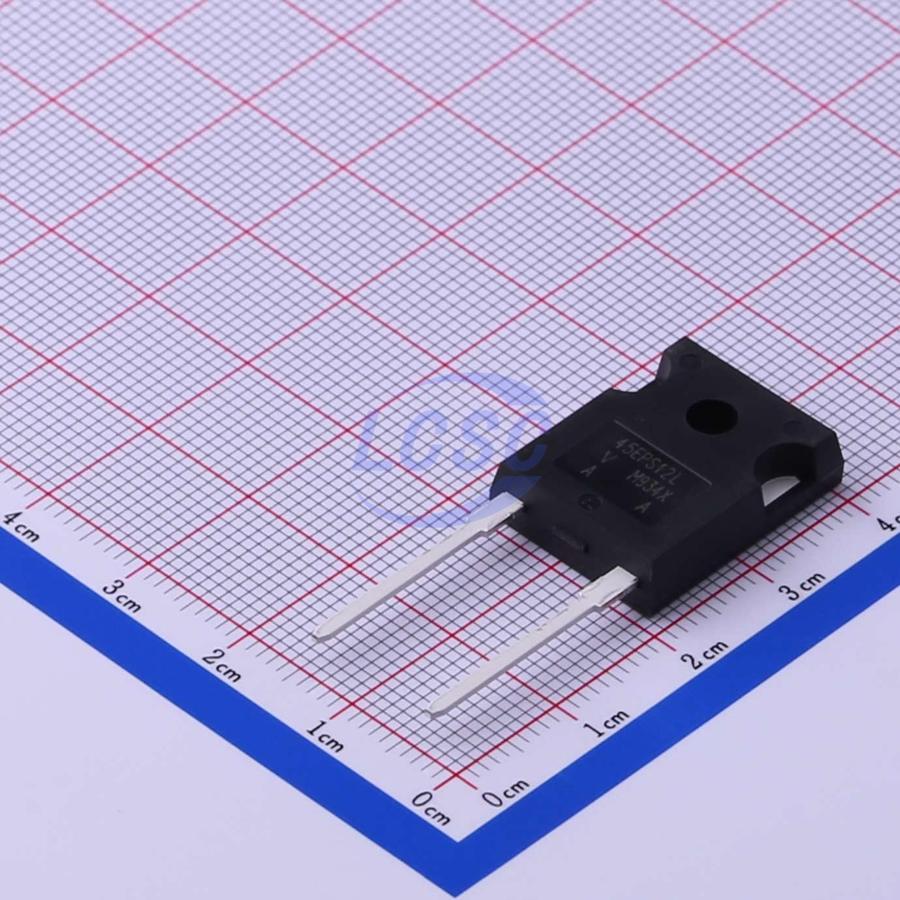

VS-45EPS12L-M3
Diode Independent 1.2kV 45A Through Hole TO-247AD-2
TO-247AD-2ROHS3 CompliantActive
DIODE STANDARD 1.2kV 45A TO-247AD-2
- Manufacturer
- VISHAY
- Manufacturer part #
- VS-45EPS12L-M3
- Store part #
- C468103
- Package / case
- TO-247AD-2
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
333 in stock
#C468103
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹255.89 | ₹255.89 |
| 10+ | ₹234.57 | ₹2,345.70 |
| 30+ | ₹221.07 | ₹6,632.10 |
| 100+ | ₹207.59 | ₹20,759.00 |
| 500+ | ₹201.28 | ₹1,00,640.00 |
| 1,000+ | ₹198.66 | ₹1,98,660.00 |
1 × ₹255.89
₹255.89
excl. GST
₹301.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per tube
VS-45EPS12L-M3
₹255.89 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -40℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 1.2kV
- Diode Configuration
- Standalone
- Voltage - Forward(Vf@If)
- 1.14V@45A
- Reverse Leakage Current (Ir)
- 100uA@1.2kV
- Non-Repetitive Peak Forward Surge Current
- 500A
- Current - Rectified
- 45A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 500 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 7 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | WND45P16WQ#C602728WeEn · TO-247-2L | WeEn | TO-247-2L | 36 | ₹653.11 · 36 in stock | View |
 | DSI45-12A#C424087Littelfuse/IXYS · TO-247-2 | Littelfuse/IXYS | TO-247-2 | 147 | ₹272.29 · 147 in stock | View |
 | 60EPS16#C698648YANGJIE · TO-247-2L | YANGJIE | TO-247-2L | 1,792 | ₹212.50 · 1,792 in stock | View |
 | BYC75W-1200PQ#C331535WeEn · TO-247-2 | WeEn | TO-247-2 | 344 | ₹1,242.36 · 344 in stock | View |
 | VS-65EPS12L-M3#C468122VISHAY · TO-247AD-2 | VISHAY | TO-247AD-2 | On request | ₹868.35 · 0 in stock | View |
