VISHAYDatasheet (PDF)

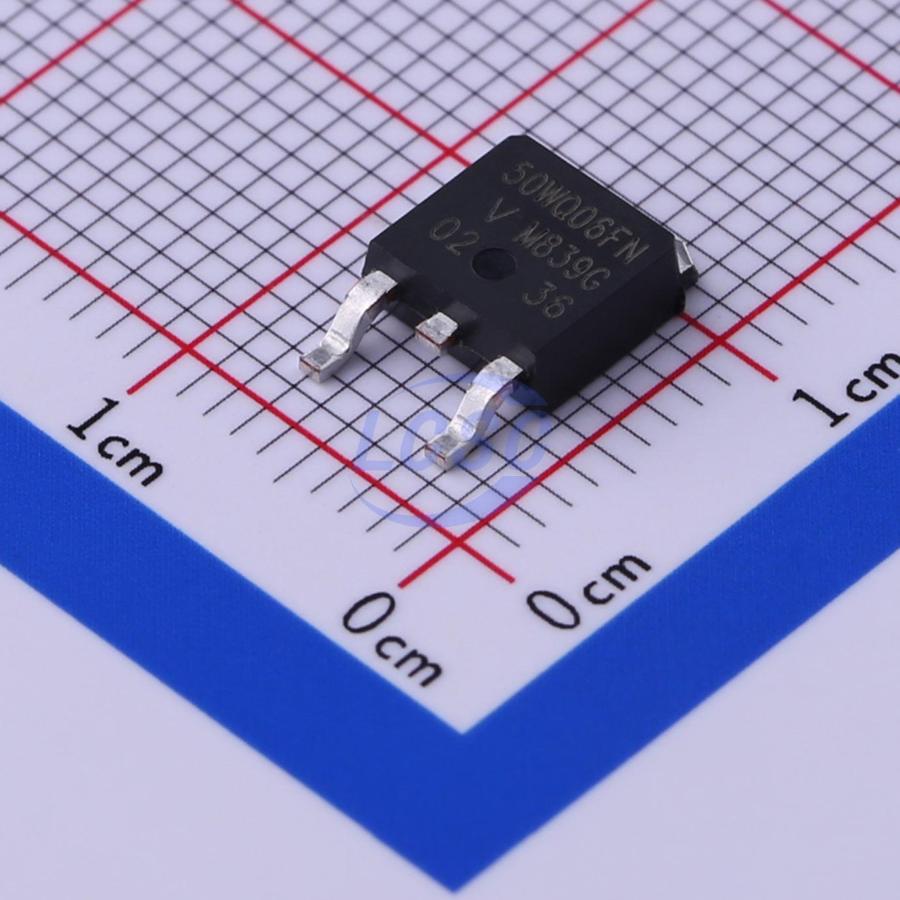

VS-50WQ06FNTR-M3
Diode 60V 5.5A Surface Mount DPAK(TO-252AA)
DPAK(TO-252AA)ROHS3 CompliantActive
DIODE SCHOTTKY 60V DPAK(TO-252AA)
- Manufacturer
- VISHAY
- Manufacturer part #
- VS-50WQ06FNTR-M3
- Store part #
- C468107
- Package / case
- DPAK(TO-252AA)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,563 in stock
#C468107
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹111.21 | ₹111.21 |
| 10+ | ₹88.40 | ₹884.00 |
| 30+ | ₹76.89 | ₹2,306.70 |
| 100+ | ₹65.59 | ₹6,559.00 |
| 500+ | ₹58.86 | ₹29,430.00 |
| 1,000+ | ₹55.39 | ₹55,390.00 |
1 × ₹111.21
₹111.21
excl. GST
₹131.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
VS-50WQ06FNTR-M3
₹111.21 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 740mV@10A
- Reverse Leakage Current (Ir)
- 3mA@60V
- Non-Repetitive Peak Forward Surge Current
- 320A
- Current - Rectified
- 5.5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.44 g
Overview
The VS- 50wQ06FN- M3 surface mount Schottky rectifier has been designed for applications requiring low forward drop and small foot prints on PC board. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reverse battery protection.
Applications
- Disk drives
- Switching power supplies
- Converters
- Freewheeling diodes
- Battery charging
- Reverse battery protection
Key features
- Low forward voltage drop
- Guard ring for enhanced ruggedness and long term reliability
- Popular D-PAK outline
- Small foot print, surface mountable
- High frequency operation
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
