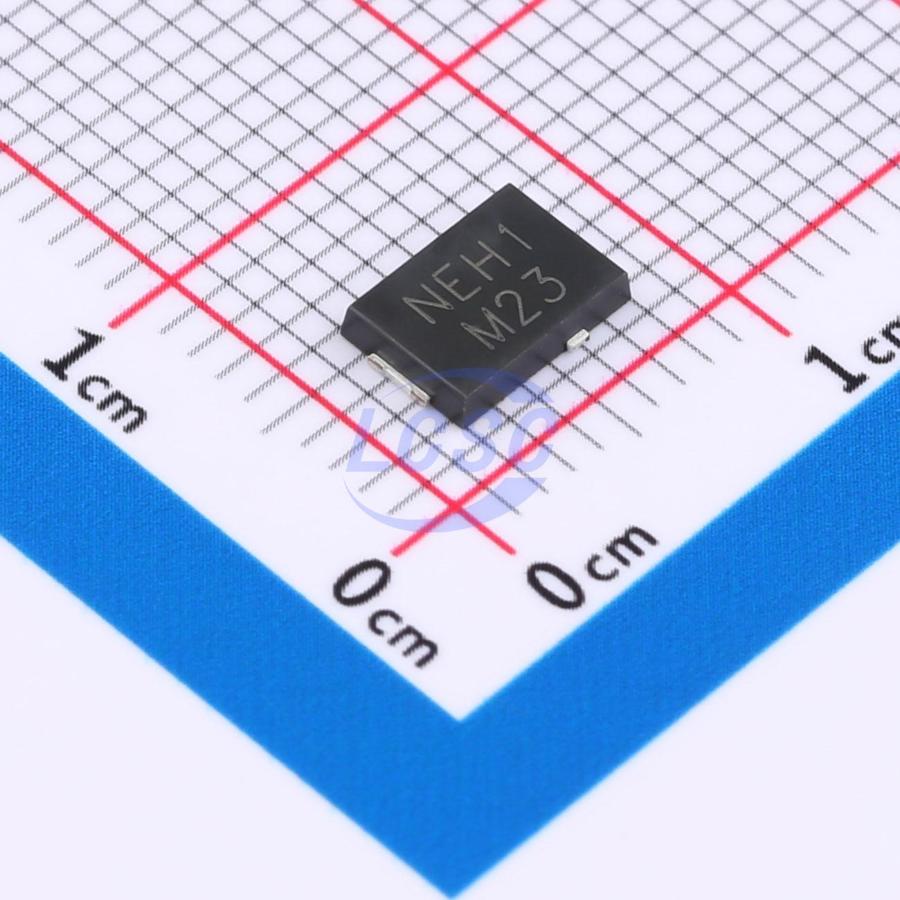

VS-6ESH01HM3/86A
22ns 1 Independent 100V 940mV@6A 6A TO-277A Single Diodes RoHS
- Manufacturer
- VISHAY
- Manufacturer part #
- VS-6ESH01HM3/86A
- Store part #
- C17563559
- Package / case
- TO-277A
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C17563559
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹190.22 | ₹190.22 |
| 10+ | ₹187.43 | ₹1,874.30 |
| 30+ | ₹185.71 | ₹5,571.30 |
| 100+ | ₹183.78 | ₹18,378.00 |
1 × ₹190.22
₹190.22
excl. GST
₹224.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
VS-6ESH01HM3/86A
₹190.22 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 22ns
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - Forward(Vf@If)
- 940mV@6A
- Reverse Leakage Current (Ir)
- 2uA@100V
- Non-Repetitive Peak Forward Surge Current
- 150A
- Current - Rectified
- 6A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.205 g
Overview
Ultra-fast recovery rectifiers using advanced technology, optimized specifically for forward voltage drop and ultra-fast recovery time. The planar structure and platinum-doped lifetime control ensure optimal overall performance, durability, and reliability. These devices can serve as high-frequency rectifiers and freewheeling diodes for snubbing, boost, lighting, piezo-jetting, and other applications. Highly optimized stored charge and low recovery current minimize switching losses and reduce power dissipation in switching elements.
Applications
- Buffering, Boost, Lighting, Piezoelectric Jetting, High-Frequency Rectification
Key features
- Ultra-fast recovery time with reduced reverse recovery charge Qrr and soft recovery
- Maximum operating junction temperature up to 175°C
- Suitable for output and freewheeling operations
- Low forward voltage drop
- Low leakage current
- MSL Level 1 compliant per J-STD-020, LF max peak at 260°C
- AEC-Q101 qualified, compliant with JESD 201 Class 2 whisker test
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VS-6ESH02HM3/86A#C17527014VISHAY · TO-277A | VISHAY | TO-277A | 79 | ₹271.74 · 79 in stock | View |
| V10P12HM3_A/H#C17450862VISHAY · TO-277A | VISHAY | TO-277A | 499 | ₹185.07 · 499 in stock | View | |
| VS-6ESH06HM3/86A#C17506214VISHAY · TO-277A | VISHAY | TO-277A | 1,054 | ₹105.64 · 1,054 in stock | View | |
| VS-6ESH01-M3/86A#C17370993VISHAY · TO-277A | VISHAY | TO-277A | On request | ₹69.34 · 0 in stock | View | |
| VS-6ESH02HM3/87A#C17396684VISHAY · TO-277A | VISHAY | TO-277A | On request | ₹89.98 · 0 in stock | View | |
