VISHAYDatasheet (PDF)

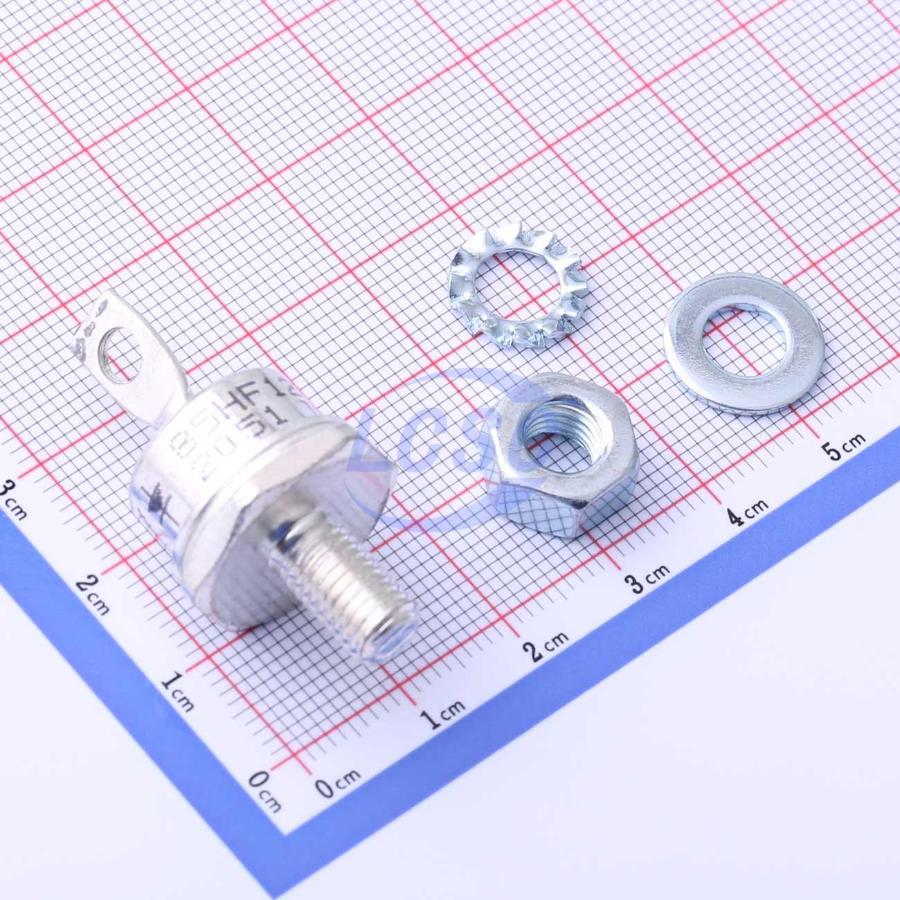

VS-85HF120
1.2kV 1 Independent 1.2V@267A 85A DO-203AB Single Diodes RoHS
DO-203ABROHS3 CompliantActive
Diode 1200V 85A DO-203AB
- Manufacturer
- VISHAY
- Manufacturer part #
- VS-85HF120
- Store part #
- C506396
- Package / case
- DO-203AB
- Category
- Single Diodes
- Packaging
- Box-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C506396
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹3,302.12 | ₹3,302.12 |
| 10+ | ₹3,083.28 | ₹30,832.80 |
1 × ₹3,302.12
₹3,302.12
excl. GST
₹3,896.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 100 per box
VS-85HF120
₹3,302.12 for 1 + GST
Specifications
- Voltage - DC Reverse (Vr) (Max)
- 1.2kV
- Operating Junction Temperature Range
- -65℃~+180℃
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 1.2V@267A
- Current - Rectified
- 85A
- Non-Repetitive Peak Forward Surge Current
- 1.8kA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Box-packed
- Standard pack
- 100 / Box
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 24 g
Overview
Applications
- Battery chargers
- Converters
- Power supplies
- Machine tool controls
- Welding
Key features
- High surge current capability
- Stud cathode and stud anode version RoHS
- Leaded version available COMPLIANT
- Types up to 1600 V VRRM
- Designed and qualified for industrial level
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VS-85HFR120#C506397VISHAY · DO-203AB | VISHAY | DO-203AB | On request | ₹2,069.86 · 0 in stock | View |
