VISHAYDatasheet (PDF)

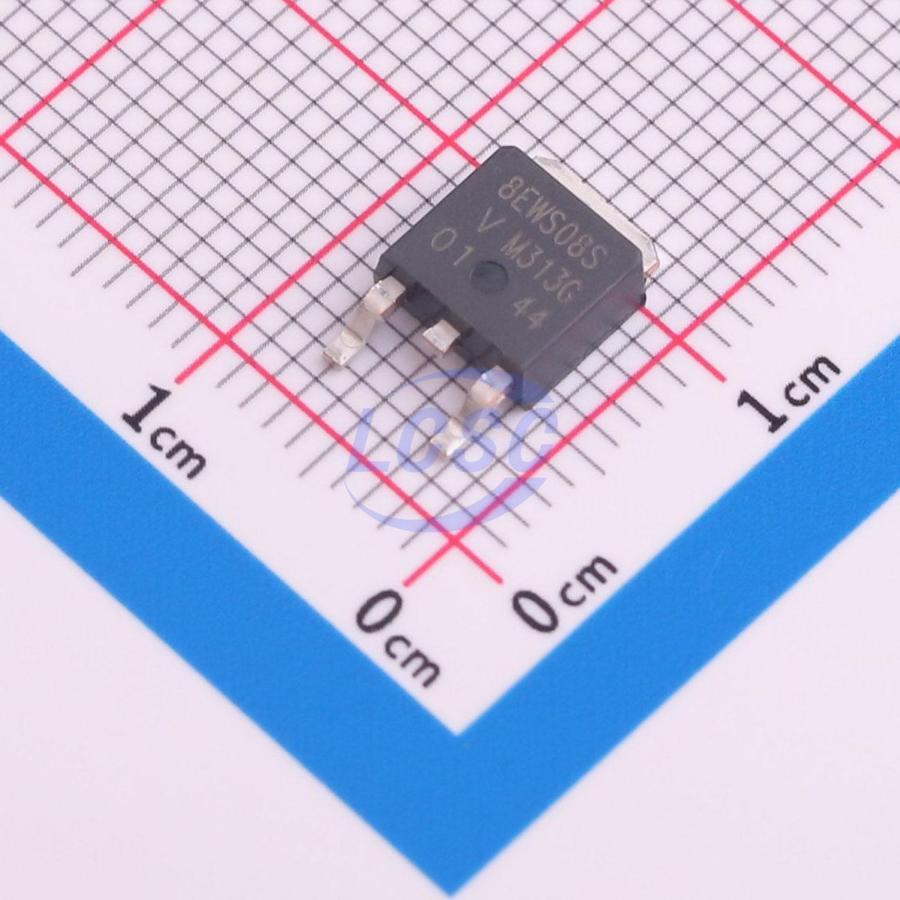

VS-8EWS08STRL-M3
800V 1 Independent 1.1V@8A 8A DPAK(TO-252AA) Single Diodes RoHS
DPAK(TO-252AA)ROHS3 CompliantActive
Diode 800V 8A DPAK(TO-252AA)
- Manufacturer
- VISHAY
- Manufacturer part #
- VS-8EWS08STRL-M3
- Store part #
- C5358702
- Package / case
- DPAK(TO-252AA)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
127 in stock
#C5358702
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹90.72 | ₹90.72 |
| 10+ | ₹88.48 | ₹884.80 |
| 30+ | ₹86.85 | ₹2,605.50 |
| 100+ | ₹85.43 | ₹8,543.00 |
1 × ₹90.72
₹90.72
excl. GST
₹107.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
VS-8EWS08STRL-M3
₹90.72 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 800V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 1.1V@8A
- Reverse Leakage Current (Ir)
- 50uA@800V
- Non-Repetitive Peak Forward Surge Current
- 150A
- Current - Rectified
- 8A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.038 g
Overview
The VS-8EWS..S-M3 rectifier high voltage series has been optimized for very low forward voltage drop, with moderate leakage. The glass passivation technology used has reliable operation up to 150 ℃ junction temperature. The high reverse voltage range available allows design of input stage primary rectification with outstanding voltage surge capability.
Applications
- Input rectification
- Vishay Semiconductors switches and output rectifiers which are available in identical package outlines
Key features
- Glass passivated pellet chip junction
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 ℃
- RoHS COMPLIANT HALOGEN FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SF808DS#C19193781JUXING · TO-252 | JUXING | TO-252 | 5,755 | ₹11.06 · 5,755 in stock | View |
 | SF1008DS#C5365557JUXING · TO-252 | JUXING | TO-252 | 1,595 | ₹17.65 · 1,595 in stock | View |
 | VS-8EWF10S-M3#C222561VISHAY · TO-252-2 | VISHAY | TO-252-2 | 22 | ₹805.96 · 22 in stock | View |
 | KIA08TB80DD#C51883047KIA Semicon Tech · TO-252 | KIA Semicon Tech | TO-252 | 95 | ₹44.51 · 95 in stock | View |
| VS-8EWS12SLHM3#C7503817VISHAY · TO-252 | VISHAY | TO-252 | On request | ₹261.46 · 0 in stock | View | |
