VISHAYDatasheet (PDF)

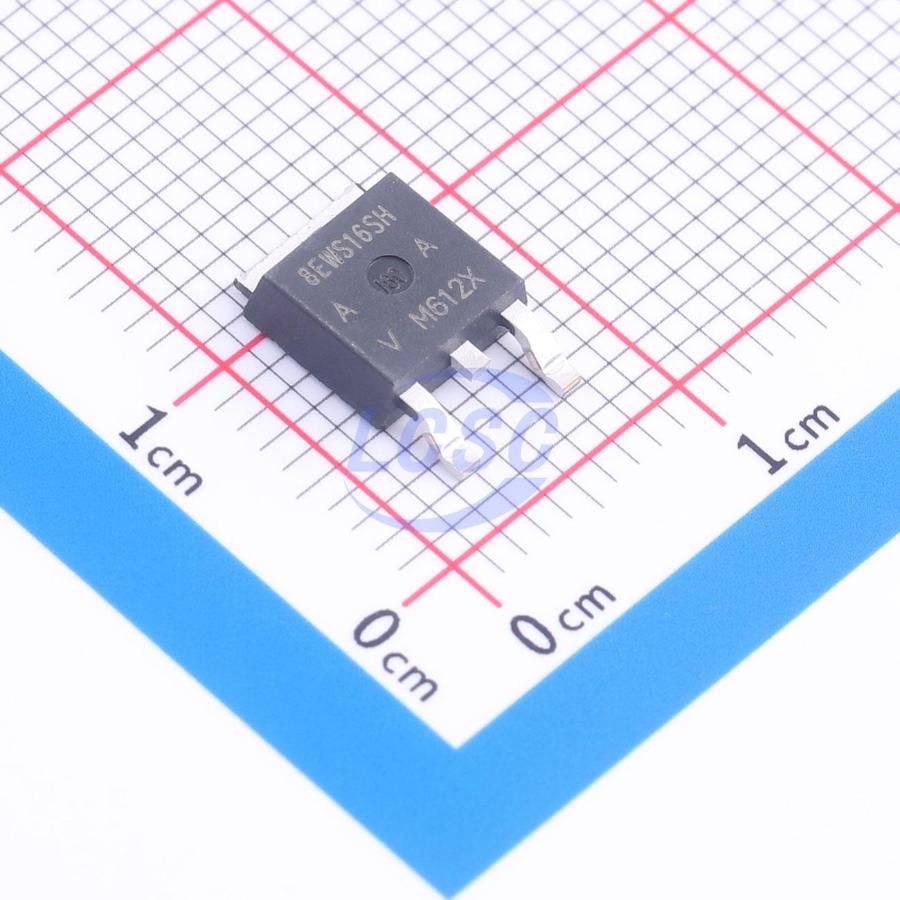

VS-8EWS16SLHM3
1.6kV 1 Independent 1.1V@8A 8A D-PAK(TO-252AA) Single Diodes RoHS
D-PAK(TO-252AA)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- VS-8EWS16SLHM3
- Store part #
- C17562929
- Package / case
- D-PAK(TO-252AA)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
37 in stock
#C17562929
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹703.78 | ₹703.78 |
| 10+ | ₹607.09 | ₹6,070.90 |
| 30+ | ₹549.63 | ₹16,488.90 |
| 100+ | ₹491.31 | ₹49,131.00 |
| 500+ | ₹464.64 | ₹2,32,320.00 |
| 1,000+ | ₹452.49 | ₹4,52,490.00 |
1 × ₹703.78
₹703.78
excl. GST
₹830.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
VS-8EWS16SLHM3
₹703.78 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -40℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 1.6kV
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 1.1V@8A
- Reverse Leakage Current (Ir)
- 50uA@1600V
- Non-Repetitive Peak Forward Surge Current
- 150A
- Current - Rectified
- 8A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.565 g
Overview
VS-8EWS16SLHM3 high-voltage rectifier series is optimized for ultra-low forward voltage drop with moderate leakage current. The available high reverse voltage range enables the design of input-stage primary rectification with excellent voltage surge capability. Ambient temperature TA = 55°C, junction temperature TJ = 125°C, footprint 300 mm².
Applications
- On-board and off-board EV/HEV battery chargers, renewable energy inverters
Key features
- Glass passivated chip junction
- MSL Level 1 per J-STD-020, lead-free peak reflow temperature 260°C
- AEC-Q101 qualified
- JESD 201 Class 2 whisker compliant
- Flexible solution for reliable AC mains rectification
- High surge, low forward voltage drop, robust blocking diode for DC charging stations
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| VS-8EWS16S-M3#C17533430VISHAY · TO-252 | VISHAY | TO-252 | 100 | ₹667.55 · 100 in stock | View | |
| VS-8EWS16STRL-M3#C17441778VISHAY · D-PAK(TO-252AA) | VISHAY | D-PAK(TO-252AA) | On request | ₹448.09 · 0 in stock | View | |
| VS-8EWS16STRR-M3#C17491179VISHAY · D-PAK(TO-252AA) | VISHAY | D-PAK(TO-252AA) | On request | ₹448.09 · 0 in stock | View | |
| DMA10IM1600UZ-TRL#C17450550Littelfuse/IXYS · TO-252AA | Littelfuse/IXYS | TO-252AA | On request | ₹222.24 · 0 in stock | View | |
| DMA10IM1600UZ-TUB#C17615166Littelfuse/IXYS · TO-252AA | Littelfuse/IXYS | TO-252AA | On request | ₹241.95 · 0 in stock | View | |
