VISHAYDatasheet (PDF)

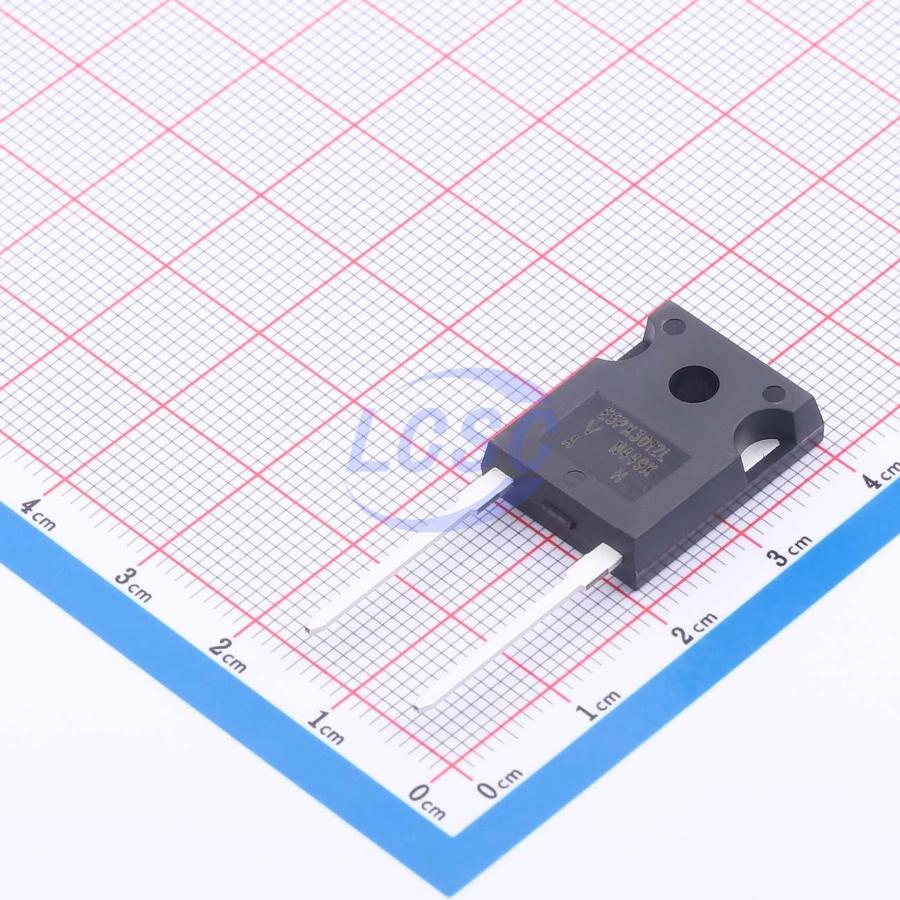

VS-E5PX3012L-N3
100ns 1 Independent 1.2kV 2.6V@30A 30A TO-247AD-2 Single Diodes RoHS
TO-247AD-2ROHS3 CompliantActive
Diode 1.2kV 30A TO-247AD-2
- Manufacturer
- VISHAY
- Manufacturer part #
- VS-E5PX3012L-N3
- Store part #
- C468144
- Package / case
- TO-247AD-2
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C468144
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹655.22 | ₹655.22 |
| 10+ | ₹590.18 | ₹5,901.80 |
| 25+ | ₹551.59 | ₹13,789.75 |
| 100+ | ₹512.56 | ₹51,256.00 |
| 500+ | ₹494.56 | ₹2,47,280.00 |
| 1,000+ | ₹486.32 | ₹4,86,320.00 |
1 × ₹655.22
₹655.22
excl. GST
₹773.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
VS-E5PX3012L-N3
₹655.22 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 100ns
- Operating Junction Temperature Range
- -55℃~+175℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 1.2kV
- Voltage - Forward(Vf@If)
- 2.6V@30A
- Reverse Leakage Current (Ir)
- 50uA@1.2kV
- Non-Repetitive Peak Forward Surge Current
- 210A
- Current - Rectified
- 30A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 7.82 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RHRG75120-MNS#C49108779Minos · TO-247-2 | Minos | TO-247-2 | 157 | ₹214.92 · 157 in stock | View |
 | SPT75U120SK2#C52741783SPTECH · TO-247-2 | SPTECH | TO-247-2 | 30 | ₹323.10 · 30 in stock | View |
 | RHRG75120-SPT#C52741784SPTECH · TO-247-2 | SPTECH | TO-247-2 | 16 | ₹323.96 · 16 in stock | View |
 | MUR30120P#C42441252LGE · TO-247-2L | LGE | TO-247-2L | 39 | ₹203.40 · 39 in stock | View |
 | RHRG75120#C11773onsemi · TO-247-2 | onsemi | TO-247-2 | 393 | ₹400.47 · 393 in stock | View |
