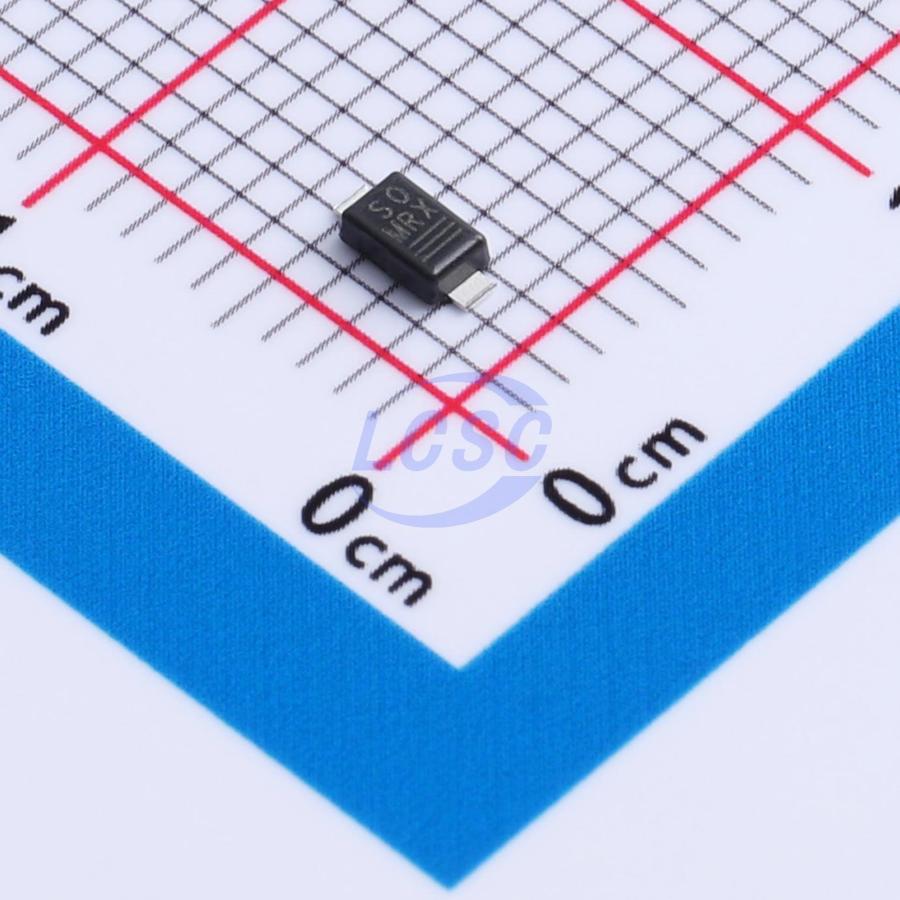

VS-E7FX0112-M3/I
50ns 1.2kV 1 Independent 1.45V@1A 1A SMF(DO-219AB) Single Diodes RoHS
- Manufacturer
- VISHAY
- Manufacturer part #
- VS-E7FX0112-M3/I
- Store part #
- C27909932
- Package / case
- SMF(DO-219AB)
- Category
- Single Diodes
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C27909932
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.88 | ₹129.40 |
| 50+ | ₹25.32 | ₹1,266.00 |
| 150+ | ₹24.95 | ₹3,742.50 |
| 500+ | ₹24.57 | ₹12,285.00 |
5 × ₹25.88
₹129.40
excl. GST
₹152.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per bag
VS-E7FX0112-M3/I
₹129.40 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 50ns
- Voltage - DC Reverse (Vr) (Max)
- 1.2kV
- Operating Junction Temperature Range
- -55℃~+175℃
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 1.45V@1A
- Reverse Leakage Current (Ir)
- 2uA
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 10,000 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
Utilizing planar construction and platinum-doped lifetime control technology to ensure optimal overall performance, ruggedness, and reliability. These devices are designed for use as clamp, snubber, and freewheeling diodes in flyback auxiliary power supplies, bootstrap and desaturation for high-voltage MOSFET and IGBT drivers, and high-frequency rectifiers in Cuk and Sepic circuits for LED lighting. Their highly optimized stored charge and low recovery current minimize switching losses and reduce power dissipation in switching elements.
Applications
- Flyback auxiliary power supply
- High-voltage MOSFET and IGBT drivers
- LED lighting
Key features
- Ultra-fast recovery time, reduced Qrr, and soft recovery
- Maximum operating junction temperature 175℃
- Specified for output and freewheeling operation
- Low forward voltage drop
- Low leakage current
- J-STD-020 compliant, MSL Level 1, LF peak up to 260℃
- JESD 201 Class 2 whisker test compliant
- Material categorization: refer to relevant documentation for compliance definitions
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| VS-E7FX0112HM3/I#C24281791VISHAY · SMF | VISHAY | SMF | 41 | ₹74.54 · 41 in stock | View | |
 | VS-E7FX0212HM3/I#C24643891VISHAY · DO-219AB | VISHAY | DO-219AB | 85 | ₹87.53 · 85 in stock | View |
 | VS-E7FX0212-M3/I#C28643269VISHAY · DO-219AB | VISHAY | DO-219AB | 60 | ₹70.25 · 60 in stock | View |
