VISHAYDatasheet (PDF)

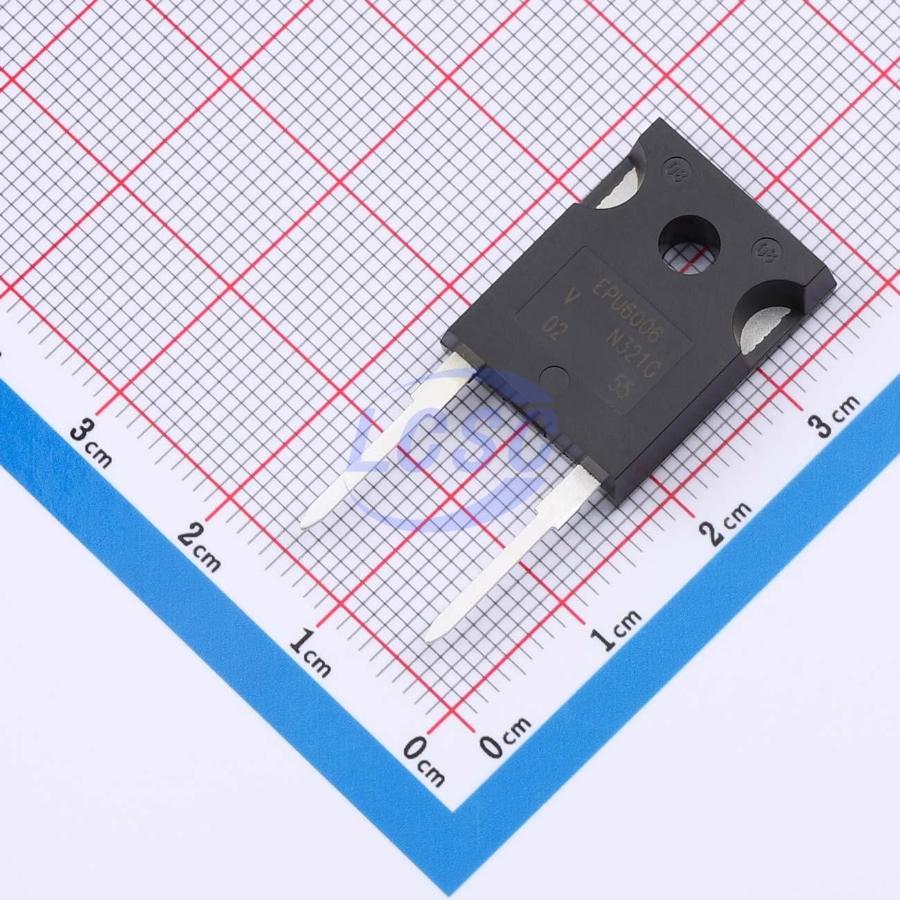

VS-EPU6006-N3
110ns 1 Independent 600V 1.5V@60A 60A TO-247AC Single Diodes RoHS
TO-247ACROHS3 CompliantActive
Diode 600V 60A TO-247AC
- Manufacturer
- VISHAY
- Manufacturer part #
- VS-EPU6006-N3
- Store part #
- C241874
- Package / case
- TO-247AC
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
44 in stock
#C241874
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹337.91 | ₹337.91 |
| 10+ | ₹294.45 | ₹2,944.50 |
| 25+ | ₹216.43 | ₹5,410.75 |
| 100+ | ₹188.62 | ₹18,862.00 |
| 500+ | ₹176.01 | ₹88,005.00 |
| 1,000+ | ₹170.59 | ₹1,70,590.00 |
1 × ₹337.91
₹337.91
excl. GST
₹398.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
VS-EPU6006-N3
₹337.91 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 110ns
- Operating Junction Temperature Range
- -55℃~+175℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Voltage - Forward(Vf@If)
- 1.5V@60A
- Reverse Leakage Current (Ir)
- 30uA@600V
- Non-Repetitive Peak Forward Surge Current
- 600A
- Current - Rectified
- 60A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.836 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MURF6060P#C7427765NH · TO-247AC | NH | TO-247AC | 619 | ₹414.97 · 619 in stock | View |
 | IDW100E60#C168739Infineon · TO-247AC-3 | Infineon | TO-247AC-3 | 31 | ₹511.00 · 31 in stock | View |
 | IDW75E60FKSA1#C672074Infineon · TO-247-3 | Infineon | TO-247-3 | 1,448 | ₹354.92 · 1,448 in stock | View |
 | VS-60EPF12-M3#C2974193VISHAY · TO-247AC | VISHAY | TO-247AC | 16 | ₹1,355.31 · 16 in stock | View |
 | DH60-18A#C2798152Littelfuse/IXYS · TO-247 | Littelfuse/IXYS | TO-247 | 205 | ₹1,584.15 · 205 in stock | View |
