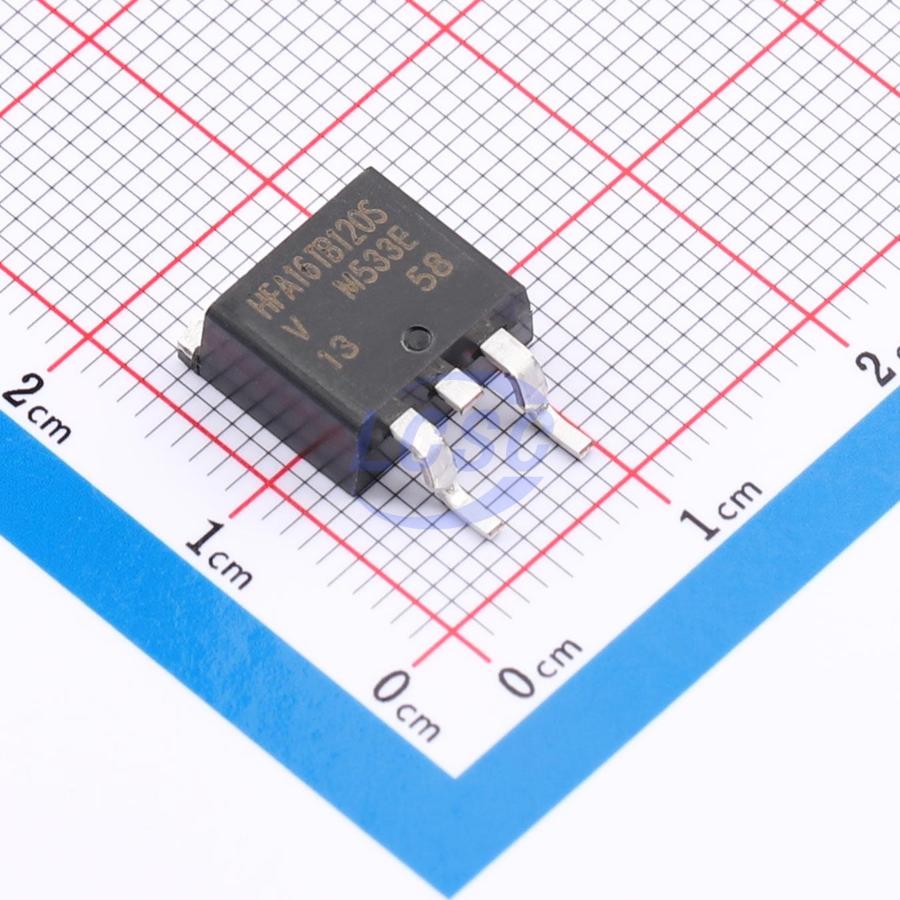

VS-HFA16TB120S-M3
135ns 1 Independent 1.2kV 3.93V@32A 16A TO-263AB Single Diodes RoHS
- Manufacturer
- VISHAY
- Manufacturer part #
- VS-HFA16TB120S-M3
- Store part #
- C17510425
- Package / case
- TO-263AB
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C17510425
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,376.14 | ₹1,376.14 |
| 10+ | ₹1,345.94 | ₹13,459.40 |
| 50+ | ₹1,325.95 | ₹66,297.50 |
| 100+ | ₹1,305.96 | ₹1,30,596.00 |
1 × ₹1,376.14
₹1,376.14
excl. GST
₹1,623.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VS-HFA16TB120S-M3
₹1,376.14 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 135ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 1.2kV
- Pd - Power Dissipation
- 151W
- Voltage - Forward(Vf@If)
- 3.93V@32A
- Reverse Leakage Current (Ir)
- 20uA@1200V
- Non-Repetitive Peak Forward Surge Current
- 190A
- Current - Rectified
- 16A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.06 g
Overview
VS-HFA16TB120S is an advanced ultrafast recovery diode. Utilizing the latest epitaxial structure and advanced processing technology, it offers an outstanding combination of characteristics that surpasses the performance of any previous rectifier. The VS-HFA16TB120S is rated at 1200V and 16A continuous current, making it particularly well-suited as a companion diode for IGBTs and MOSFETs. In addition to ultrafast recovery times, the HEXFRED® product line features extremely low peak recovery current (IRRM) and no tendency for "snap-off" during the tb portion of recovery. The combined characteristics of HEXFRED provide designers with a rectifier that delivers lower noise and significantly reduced switching losses in both the diode and switching transistor. These HEXFRED advantages help to substantially reduce snubber requirements, component count, and heatsink size. The HEXFRED VS-HFA16TB120S is ideally suited for power supplies and power conversion systems such as inverters, motor drives, and many other similar applications requiring high speed and high efficiency.
Applications
- Power and power conversion systems (such as inverters), motor drives
Key features
- Ultra-fast and ultra-soft recovery
- Extremely low IRRM and Qrr
- Specified under operating conditions
- MSL Level 1 per J-STD-020, LF max peak 245°C
- Designed and qualified for industrial grade
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VS-E5TX3012S2LHM3#C20039224VISHAY · TO-263AB(D2PAK) | VISHAY | TO-263AB(D2PAK) | 25 | ₹520.51 · 25 in stock | View |
 | VS-E5TH3012S2LHM3#C17377120VISHAY · TO-263AB | VISHAY | TO-263AB | 6 | ₹441.01 · 6 in stock | View |
| VS-20ETS12S-M3#C17582196VISHAY · TO-263AB | VISHAY | TO-263AB | On request | ₹310.42 · 0 in stock | View | |
| VS-HFA16TB120SL-M3#C17593032VISHAY · TO-263AB | VISHAY | TO-263AB | On request | ₹414.22 · 0 in stock | View | |
| VS-HFA16TB120SR-M3#C17612699VISHAY · TO-263AB | VISHAY | TO-263AB | On request | ₹414.22 · 0 in stock | View | |
