HXY MOSFETDatasheet (PDF)

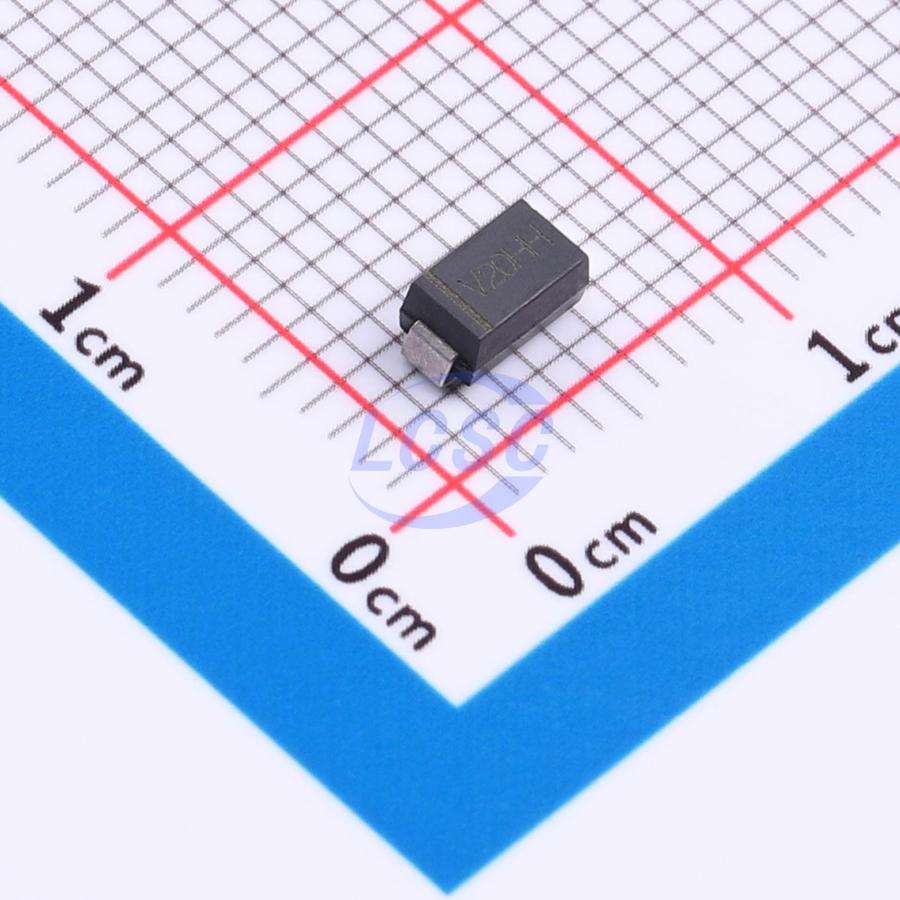

VS20MQ100HM3/5AT-HXY
1 Independent 100V 850mV@1A 2A SMA Single Diodes
SMARoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- VS20MQ100HM3/5AT-HXY
- Store part #
- C52988623
- Package / case
- SMA
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
180 in stock
#C52988623
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.63 | ₹63.15 |
| 50+ | ₹10.07 | ₹503.50 |
| 150+ | ₹8.78 | ₹1,317.00 |
| 500+ | ₹7.82 | ₹3,910.00 |
| 2,000+ | ₹7.05 | ₹14,100.00 |
| 4,000+ | ₹6.65 | ₹26,600.00 |
5 × ₹12.63
₹63.15
excl. GST
₹74.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
VS20MQ100HM3/5AT-HXY
₹63.15 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - Forward(Vf@If)
- 850mV@1A
- Reverse Leakage Current (Ir)
- 100uA@100V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.083 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MBRA2H100T3G-HXY#C52988618HXY MOSFET · SMA | HXY MOSFET | SMA | 80 | ₹27.19 · 80 in stock | View |
 | NRVBA2H100T3G-VF01-HXY#C52988619HXY MOSFET · SMA | HXY MOSFET | SMA | 196 | ₹86.48 · 196 in stock | View |
 | RB068L100DDTE25-HXY#C52988620HXY MOSFET · SMA | HXY MOSFET | SMA | 180 | ₹51.01 · 180 in stock | View |
 | SSA210-HXY#C52988621HXY MOSFET · SMA | HXY MOSFET | SMA | 135 | ₹12.38 · 135 in stock | View |
 | STPS2H100A-HXY#C52988622HXY MOSFET · SMA | HXY MOSFET | SMA | 115 | ₹10.90 · 115 in stock | View |
