VISHAYDatasheet (PDF)

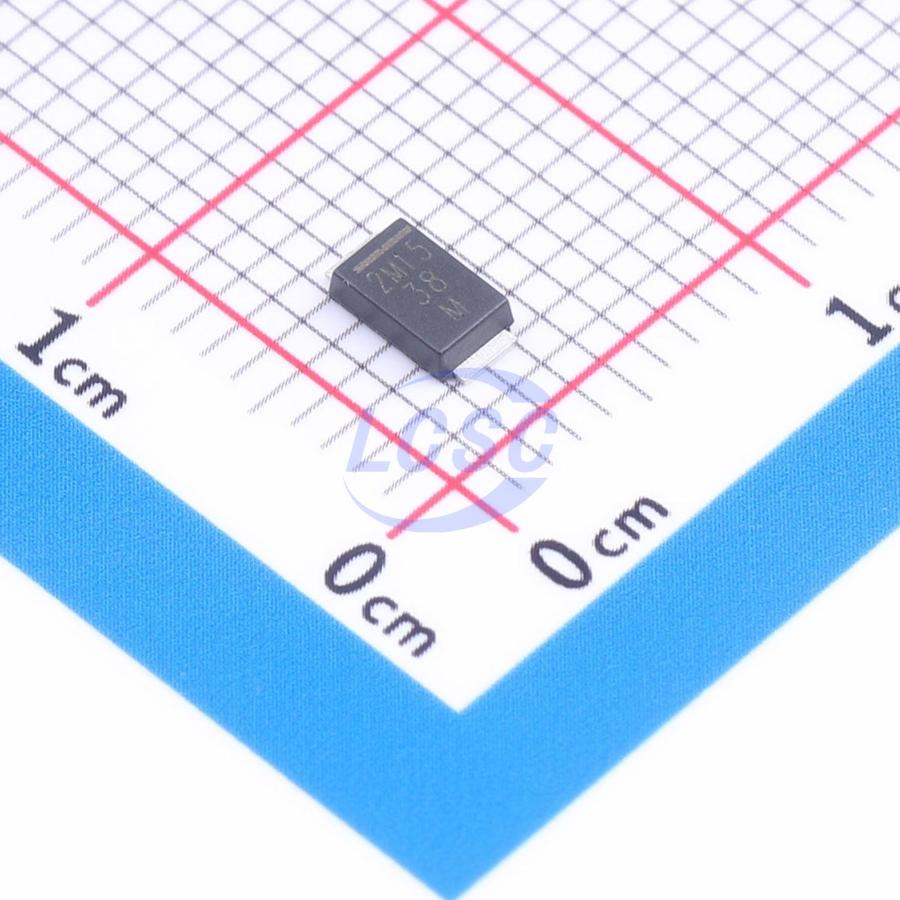

VSS8D2M15-M3/H
1 Independent 150V 700mV@1A 1.8A DO-221AD Single Diodes RoHS
DO-221ADROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- VSS8D2M15-M3/H
- Store part #
- C3760049
- Package / case
- DO-221AD
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
49 in stock
#C3760049
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.81 | ₹69.81 |
| 10+ | ₹57.89 | ₹578.90 |
| 30+ | ₹52.91 | ₹1,587.30 |
| 100+ | ₹46.41 | ₹4,641.00 |
| 500+ | ₹43.59 | ₹21,795.00 |
| 1,000+ | ₹41.85 | ₹41,850.00 |
1 × ₹69.81
₹69.81
excl. GST
₹82.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
VSS8D2M15-M3/H
₹69.81 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 150V
- Voltage - Forward(Vf@If)
- 700mV@1A
- Reverse Leakage Current (Ir)
- 150uA@150V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 1.8A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.136 g
Overview
Applications
- For high-frequency inverters, freewheeling, DC/DC converters, and polarity protection in commercial, industrial, and automotive applications.
Key features
- Low-profile package
- MSL Level 1 per J-STD-020, lead-free peak reflow temperature 260°C
- AEC-Q101 qualified parts available
- Automotive ordering code: NHM3 base part number
- Compatible with SOD-128 package footprint
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VSS8D3M15HM3/H#C3760182VISHAY · DO-221AD | VISHAY | DO-221AD | 100 | ₹49.44 · 100 in stock | View |
 | VSS8D5M15-M3/H#C3759549VISHAY · DO-221AD | VISHAY | DO-221AD | 173 | ₹59.32 · 173 in stock | View |
 | VSS8D5M15HM3/H#C3757879VISHAY · DO-221AD | VISHAY | DO-221AD | 2 | ₹39.77 · 2 in stock | View |
| VSS8D2M15-M3/I#C3757666VISHAY · DO-221AD | VISHAY | DO-221AD | On request | ₹16.66 · 0 in stock | View | |
 | VSS8D2M15HM3/H#C3759420VISHAY · DO-221AD | VISHAY | DO-221AD | On request | ₹43.00 · 0 in stock | View |
