VISHAYDatasheet (PDF)

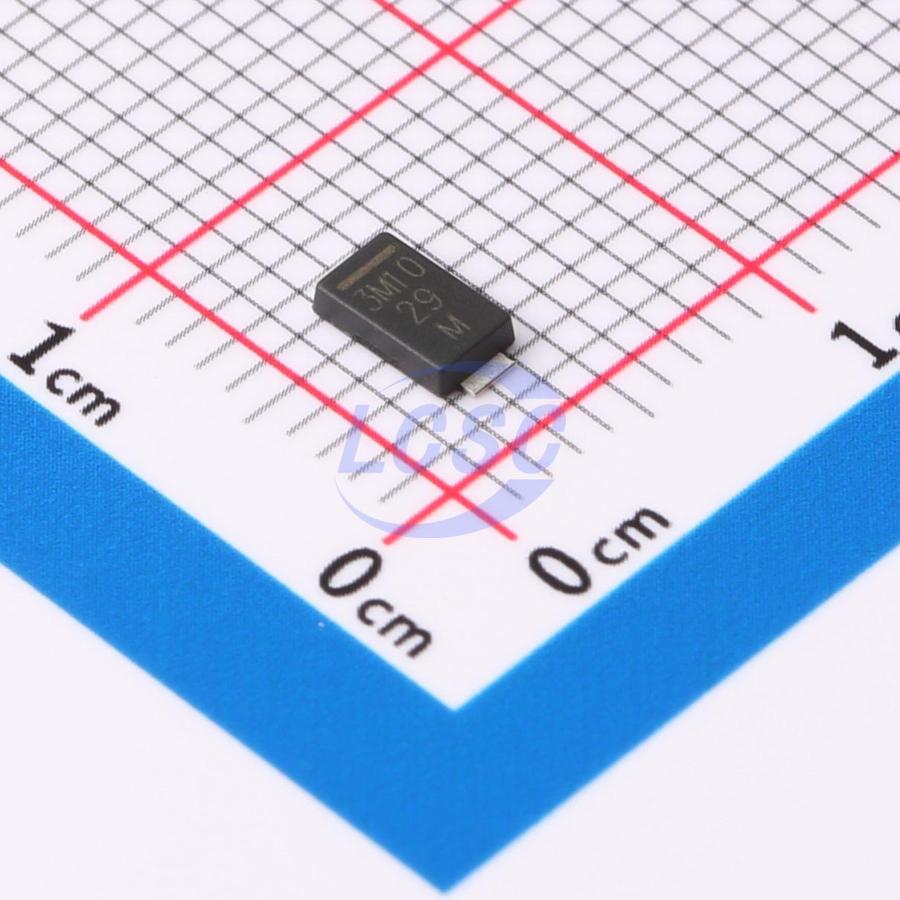

VSSAF3M10HM3/H
Diode 1 Independent 100V 3A Surface Mount DO-221AC(SlimSMA)
DO-221AC(SlimSMA)ROHS3 CompliantActive
DIODE SCHOTTKY 100V DO-221AC(SlimSMA)
- Manufacturer
- VISHAY
- Manufacturer part #
- VSSAF3M10HM3/H
- Store part #
- C3759644
- Package / case
- DO-221AC(SlimSMA)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C3759644
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.29 | ₹221.45 |
| 50+ | ₹34.40 | ₹1,720.00 |
| 150+ | ₹30.16 | ₹4,524.00 |
| 500+ | ₹24.86 | ₹12,430.00 |
| 3,500+ | ₹22.50 | ₹78,750.00 |
| 7,000+ | ₹21.09 | ₹1,47,630.00 |
5 × ₹44.29
₹221.45
excl. GST
₹261.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
VSSAF3M10HM3/H
₹221.45 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 720mV@3A
- Reverse Leakage Current (Ir)
- 200uA@100V
- Non-Repetitive Peak Forward Surge Current
- 80A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.051 g
Overview
Applications
- For use in high frequency inverters, freewheeling, DC/DC converters, and polarity protection in commercial, industrial, and automotive applications.
Key features
- Very low profile
- typical height of 0.95mm
- Ideal for automated placement
- Trench MOS Schottky technology
- Low power losses, high efficiency
- Low forward voltage drop
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- AEC-Q101 qualified available
- Automotive ordering code: base P/NHM3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VSSAF3M10-M3/H#C6750644VISHAY · DO-221AC(SLIMSMA) | VISHAY | DO-221AC(SLIMSMA) | On request | ₹86.41 · 0 in stock | View |
| SM3200AF#C5266301LRC · SMA-FL | LRC | SMA-FL | 3,000 | ₹9.84 · 3,000 in stock | View | |
 | VSSAF510-M3/H#C7149668VISHAY · DO-221AC(SLIMSMA) | VISHAY | DO-221AC(SLIMSMA) | 1,760 | ₹53.00 · 1,760 in stock | View |
 | SK310AFL-TP#C6296813MCC · DO-221AC(SMA-FL) | MCC | DO-221AC(SMA-FL) | 9,285 | ₹10.56 · 9,285 in stock | View |
 | VSSAF5M10-M3/H#C5241914VISHAY · DO-221AC | VISHAY | DO-221AC | 10,810 | ₹35.23 · 10,810 in stock | View |
