VISHAYDatasheet (PDF)

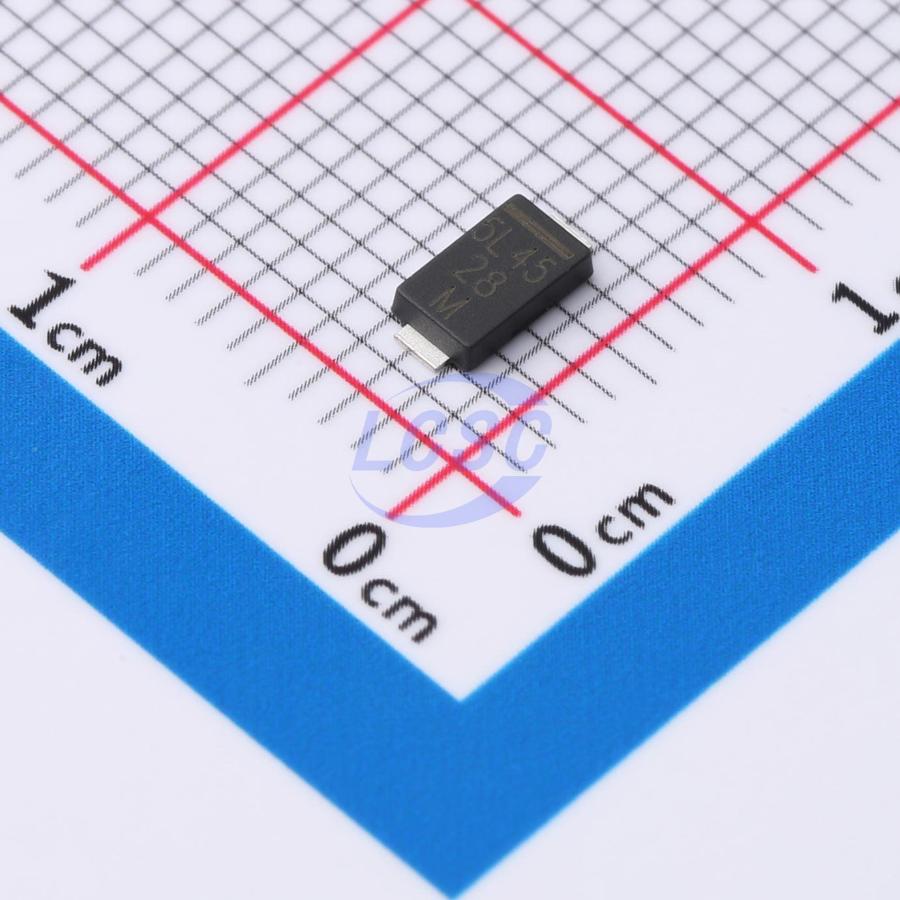

VSSAF5L45-M3/6A
Diode 1 Independent 45V 3A Surface Mount DO-221AC
DO-221ACROHS3 CompliantActive
DIODE SCHOTTKY 45V DO-221AC
- Manufacturer
- VISHAY
- Manufacturer part #
- VSSAF5L45-M3/6A
- Store part #
- C3151603
- Package / case
- DO-221AC
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,976 in stock
#C3151603
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.95 | ₹63.95 |
| 10+ | ₹50.68 | ₹506.80 |
| 30+ | ₹45.03 | ₹1,350.90 |
| 100+ | ₹38.08 | ₹3,808.00 |
| 500+ | ₹34.81 | ₹17,405.00 |
| 1,000+ | ₹28.29 | ₹28,290.00 |
1 × ₹63.95
₹63.95
excl. GST
₹75.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
VSSAF5L45-M3/6A
₹63.95 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 45V
- Voltage - Forward(Vf@If)
- 560mV@5A
- Reverse Leakage Current (Ir)
- 650uA@45V
- Non-Repetitive Peak Forward Surge Current
- 100A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.064 g
Overview
Applications
- For use in low voltage, high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
Key features
- Very low profile
- typical height of 0.95mm
- Ideal for automated placement
- Trench MOS Schottky technology
- Low power losses, high efficiency
- Low forward voltage drop
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- AEC-Q101 qualified available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VSSAF5L45HM3_A/H#C6000165VISHAY · DO-221AC(SLIMSMA) | VISHAY | DO-221AC(SLIMSMA) | 13 | ₹99.53 · 13 in stock | View |
 | VSSAF510HM3/H#C6326606VISHAY · DO-221AC(SLIMSMA) | VISHAY | DO-221AC(SLIMSMA) | 310 | ₹39.31 · 310 in stock | View |
 | VSSAF56HM3_A/H#C5360588VISHAY · DO-221AC | VISHAY | DO-221AC | 2,460 | ₹35.15 · 2,460 in stock | View |
 | VSSAF56-M3/6A#C6024895VISHAY · DO-221AC(SLIMSMA) | VISHAY | DO-221AC(SLIMSMA) | 199 | ₹79.54 · 199 in stock | View |
 | VSSAF5M6HM3/H#C6326610VISHAY · DO-221AC(SLIMSMA) | VISHAY | DO-221AC(SLIMSMA) | On request | ₹100.61 · 0 in stock | View |
