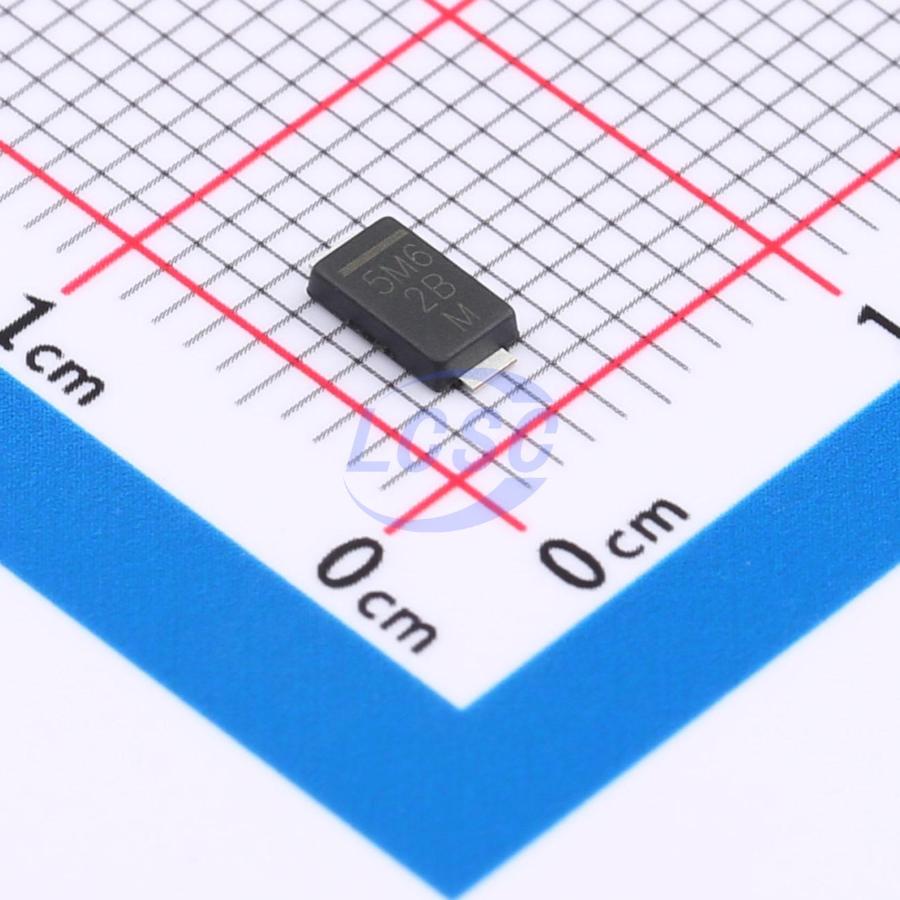

VSSAF5M6-M3/H
Diode 1 Independent 60V 5A Surface Mount SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
DIODE SCHOTTKY 60V SMA(DO-214AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- VSSAF5M6-M3/H
- Store part #
- C5449196
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,105 in stock
#C5449196
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹53.29 | ₹266.45 |
| 50+ | ₹42.47 | ₹2,123.50 |
| 150+ | ₹37.84 | ₹5,676.00 |
| 500+ | ₹32.04 | ₹16,020.00 |
| 3,500+ | ₹29.48 | ₹1,03,180.00 |
| 7,000+ | ₹27.93 | ₹1,95,510.00 |
5 × ₹53.29
₹266.45
excl. GST
₹314.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
VSSAF5M6-M3/H
₹266.45 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - Forward(Vf@If)
- 660mV@5A
- Reverse Leakage Current (Ir)
- 350uA@60V
- Non-Repetitive Peak Forward Surge Current
- 100A
- Current - Rectified
- 5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
Applications
- For use in high frequency inverters, freewheeling, DC/DC converters, and polarity protection in commercial, industrial, and automotive applications.
Key features
- Very low profile
- typical height of 0.95mm
- Ideal for automated placement
- Trench MOS Schottky technology
- Low power losses, high efficiency
- Low forward voltage drop
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- AEC-Q101 qualified available
- Automotive ordering code: base P/NHM3
