VISHAYDatasheet (PDF)

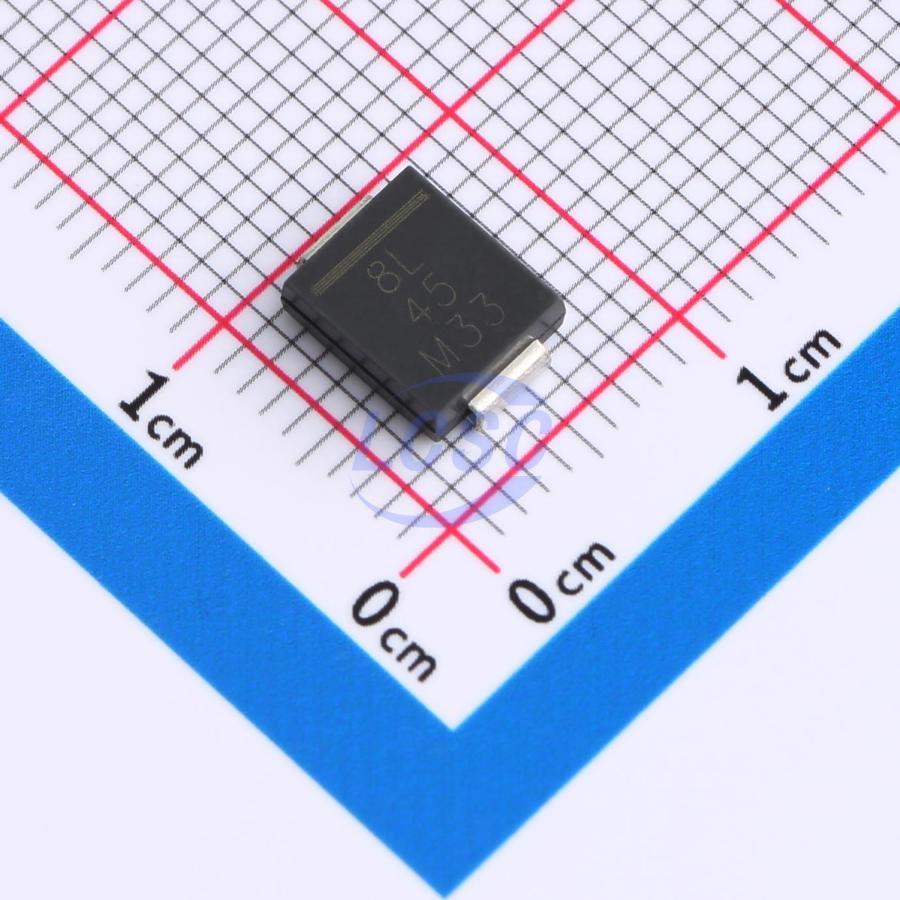

VSSC8L45-M3/9AT
Diode 1 Independent 45V 4.9A Surface Mount DO-214AB(SMC)
DO-214AB(SMC)ROHS3 CompliantActive
DIODE SCHOTTKY 45V DO-214AB(SMC)
- Manufacturer
- VISHAY
- Manufacturer part #
- VSSC8L45-M3/9AT
- Store part #
- C3758943
- Package / case
- DO-214AB(SMC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,845 in stock
#C3758943
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.03 | ₹200.15 |
| 50+ | ₹31.49 | ₹1,574.50 |
| 150+ | ₹27.84 | ₹4,176.00 |
| 500+ | ₹23.26 | ₹11,630.00 |
| 3,500+ | ₹21.23 | ₹74,305.00 |
| 7,000+ | ₹20.00 | ₹1,40,000.00 |
5 × ₹40.03
₹200.15
excl. GST
₹236.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
VSSC8L45-M3/9AT
₹200.15 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 45V
- Voltage - Forward(Vf@If)
- 420mV@4A
- Reverse Leakage Current (Ir)
- 1.85mA@45V
- Non-Repetitive Peak Forward Surge Current
- 140A
- Current - Rectified
- 4.9A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.345 g
Overview
Applications
- For use in high frequency converters
- Freewheeling diodes
- DC/DC converters
- Polarity protection applications
Key features
- Low profile package
- Ideal for automated placement
- Trench MOS Schottky technology
- Low power losses, high efficiency
- Low forward voltage drop
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SSL545C#C5155217Jingdao Microelectronics · SMC | Jingdao Microelectronics | SMC | 2,165 | ₹12.63 · 2,165 in stock | View |
 | SS10L45C#C42432513PAKER · SMC | PAKER | SMC | 1,715 | ₹21.47 · 1,715 in stock | View |
 | SSL56#C5764114YFW · SMC | YFW | SMC | 2,960 | ₹24.79 · 2,960 in stock | View |
 | SS56C#C2988636UMW · SMC | UMW | SMC | 1,440 | ₹7.47 · 1,440 in stock | View |
 | B560C-13-F-HXY#C52988732HXY MOSFET · SMC | HXY MOSFET | SMC | 2,260 | ₹17.13 · 2,260 in stock | View |
