WILLSEMIDatasheet (PDF)

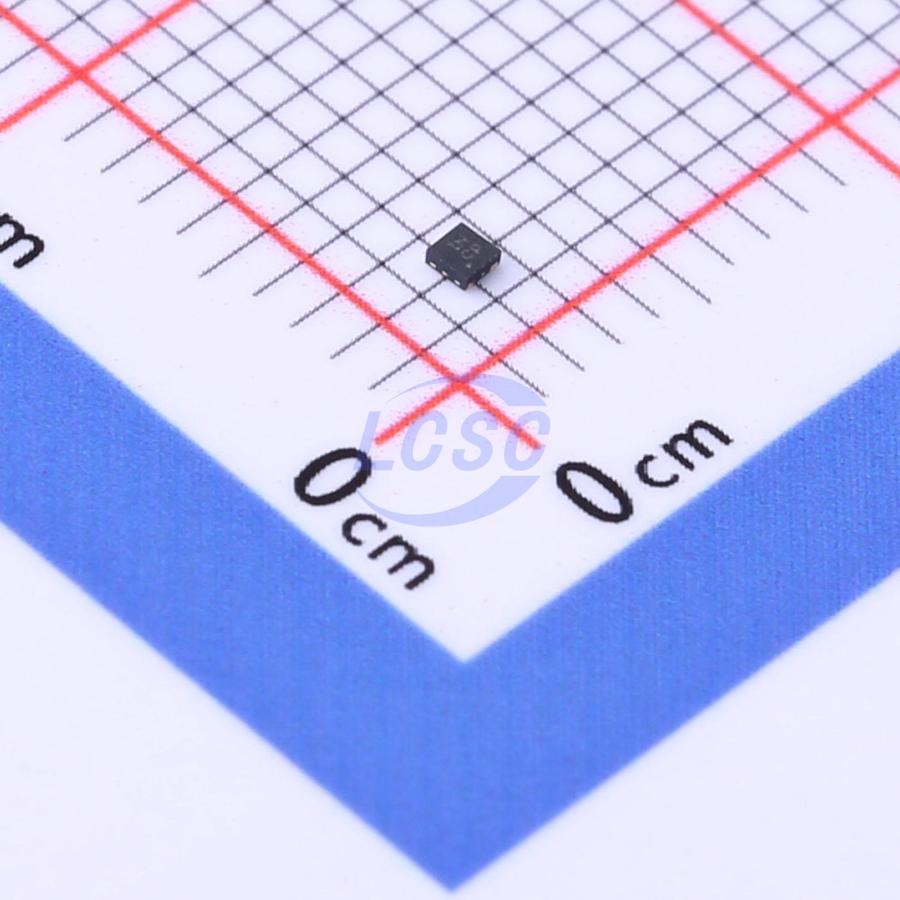

WL2836D33-4/TR
3.3V Positive Fixed DFN1x1-4L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN1x1-4LROHS CompliantActive
Low-noise, high-PSRR, high-speed CMOS LDO
- Manufacturer
- WILLSEMI
- Manufacturer part #
- WL2836D33-4/TR
- Store part #
- C2931318
- Package / case
- DFN1x1-4L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,310 in stock
#C2931318
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.31 | ₹56.55 |
| 50+ | ₹9.14 | ₹457.00 |
| 150+ | ₹8.06 | ₹1,209.00 |
| 500+ | ₹7.25 | ₹3,625.00 |
| 2,500+ | ₹6.59 | ₹16,475.00 |
| 5,000+ | ₹6.27 | ₹31,350.00 |
5 × ₹11.31
₹56.55
excl. GST
₹66.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
WL2836D33-4/TR
₹56.55 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Output Type
- Fixed
- Features
- Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.012 g
Overview
The WL2836D series is a high accuracy, low noise, high speed, high PSRR, low dropout CMOS Linear regulator with high ripple rejection. The devices offer a new level of cost effective performance in cellular phones, laptop and notebook computers, and other portable devices. The WL2836D has the fold-back maximum output current which depends on the output voltage. So the current limit functions both as a short circuit protection and as an output current limiter. The WL2836D regulators are available in standard DFN1x1-4L Package. Standard products are Pb-free and Halogen-free.
Applications
- MP3/MP4 Players
- Cellphones, radiophone, digital cameras
- Bluetooth, wireless handsets
- Others portable electronics device
Key features
- Input Voltage Range: 1.4V ~ 5.5V
- Output Voltage Range: 0.9V ~ 3.3V
- Output current: 300mA
- Quiescent current: 50μA Typ.
- Shut-down current: <1μA
- Dropout voltage: 140mV @ IOUT=0.3A
- PSRR: 78dB @ 1kHz, VOUT=1.8V
- Low Output Voltage Noise: 13×VOUT μVRMS
- Output Voltage Tolerance: ± 1% @ Iour>2Ior
- Recommend capacitor: 1μF
- Thermal-Overload and Short-Circuit Protection
