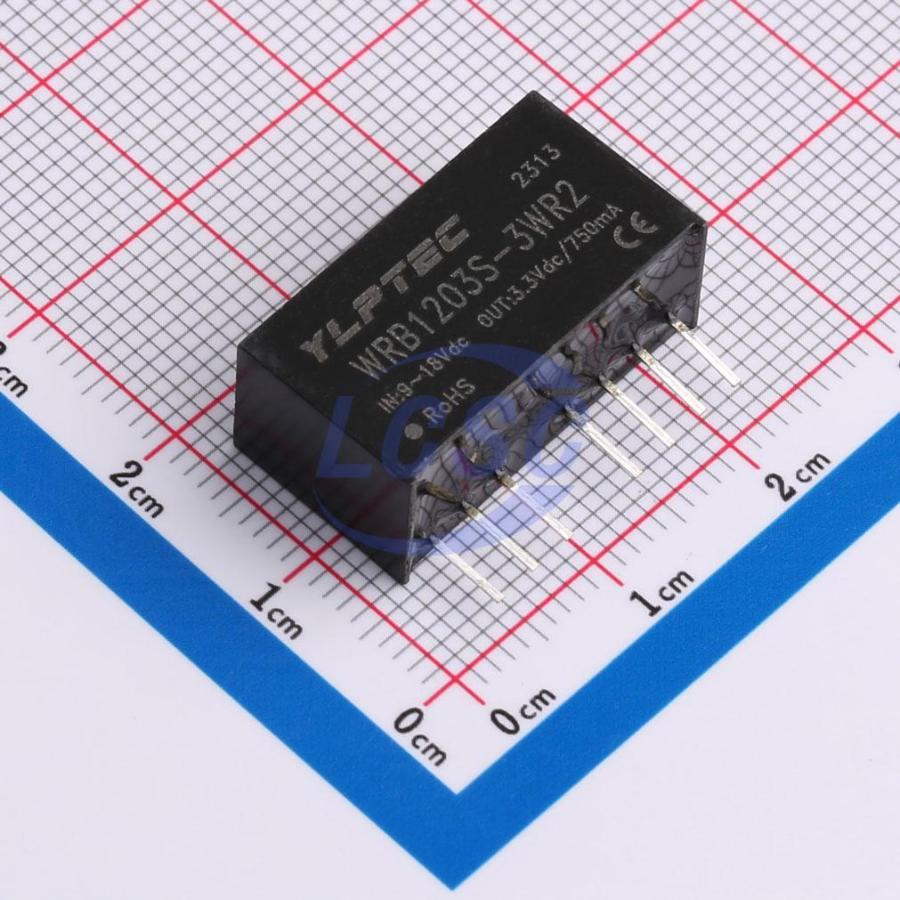

WRB1203S-3WR2
Isolated Module DC DC Converter Buck 1 Output 3.3V 758mA 9V~18V Input
3W Isolated Regulated Dual/ Single Output DC/DC Module Power Supply with Ultra-wide Voltage Input
- Manufacturer
- YLPTEC
- Manufacturer part #
- WRB1203S-3WR2
- Store part #
- C5369670
- Package / case
- SIP,22x9.5mm
- Category
- DC DC Converters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28 in stock
#C5369670
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹762.97 | ₹762.97 |
| 10+ | ₹658.26 | ₹6,582.60 |
| 22+ | ₹596.02 | ₹13,112.44 |
| 110+ | ₹533.16 | ₹58,647.60 |
| 440+ | ₹504.31 | ₹2,21,896.40 |
| 880+ | ₹491.08 | ₹4,32,150.40 |
1 × ₹762.97
₹762.97
excl. GST
₹900.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 22 per tube
WRB1203S-3WR2
₹762.97 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Ripple Noise
- 100mVp-p
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 9V~18V
- Capacitive Load(Max)
- 2700uF
- Number of Outputs
- 1
- Iout
- 758mA
- Height
- 12mm
- Frequency - Switching
- 300kHz
- Isolation Voltage(Vrms)
- 1.5kV
- Conversion Efficiency
- 75%
- Output Power
- 3W
- Features
- Short Circuit Protection;Under Voltage Protection;Over Current Protection
- Length
- 22mm
- Width
- 9.5mm
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 22 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.605 g
Overview
3W, ultra-wide voltage input, isolated regulated dual/single output DC/DC module power supply. This product features a compact SIP-8 plastic pin package, high efficiency, operating temperature range of –40℃ to +85℃, with remote on/off control and continuous short-circuit protection. The compact footprint and cost-effective design make this converter an ideal solution for communications equipment, instrumentation, and industrial electronics applications.
Applications
- Communications equipment
- Instrumentation
- Industrial electronics
Key features
- Ultra-compact SIP-8 package
- Ultra-wide input voltage range: 2:1
- Operating temperature range: -40°C to +85°C
- Isolation voltage 1500VDC
- Low ripple noise
- Short-circuit protection (self-recovering)
- No-load power consumption as low as 0.12W
- Input undervoltage protection, output short-circuit and overcurrent protection
- Remote on/off control function
