YXC Crystal OscillatorsDatasheet (PDF)

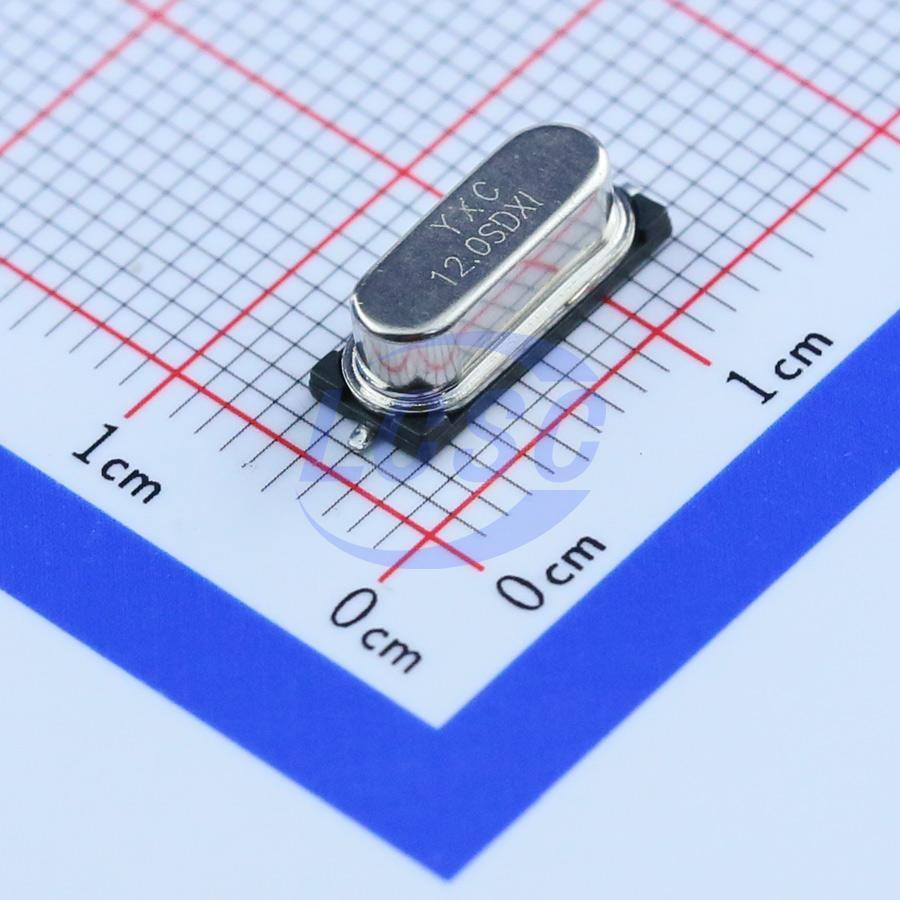

X49SM12MSD2SI
Crystal 12MHz ±20ppm 20pF 40Ω HC-49S-SMD
HC-49S-SMDROHS CompliantActive
CRYSTAL 12MHz 20pF SMD
- Manufacturer
- YXC Crystal Oscillators
- Manufacturer part #
- X49SM12MSD2SI
- Store part #
- C108151
- Package / case
- HC-49S-SMD
- Category
- Crystals
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,575 in stock
#C108151
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.20 | ₹71.00 |
| 50+ | ₹11.27 | ₹563.50 |
| 150+ | ₹9.80 | ₹1,470.00 |
| 1,000+ | ₹8.00 | ₹8,000.00 |
| 2,000+ | ₹7.13 | ₹14,260.00 |
| 5,000+ | ₹6.69 | ₹33,450.00 |
5 × ₹14.20
₹71.00
excl. GST
₹83.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
X49SM12MSD2SI
₹71.00 for 5 + GST
Specifications
- Frequency Stability
- ±30ppm
- Operating Temperature
- -40℃~+85℃
- Load Capacitance
- 20pF
- Normal temperature Frequency Tolerance
- ±20ppm
- Equivalent Series Resistance(ESR)
- 40Ω
- Frequency
- 12MHz
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.008 g
Overview
Applications
- Industrial control
Key features
- Dimensions: 11.4 x 4.8 x 3.8 mm
- Standard Frequency: 3.2768 ~ 32 MHz
- SMD Crystal Unit
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | H6OEL89CSI-SUGYLC-12M#C20606299YXC Crystal Oscillators · HC-49S-SMD | YXC Crystal Oscillators | HC-49S-SMD | 710 | ₹13.60 · 710 in stock | View |
 | X49SM12MSD2SC#C14871YXC Crystal Oscillators · HC-49S-SMD | YXC Crystal Oscillators | HC-49S-SMD | 17,620 | ₹14.74 · 17,620 in stock | View |
 | H6OSC-SUG-12M#C20617541YXC Crystal Oscillators · HC-49S-SMD | YXC Crystal Oscillators | HC-49S-SMD | 3,745 | ₹12.36 · 3,745 in stock | View |
 | H6OEL89CSC-SUGYLC-12M#C7528808YXC Crystal Oscillators · HC-49S-SMD | YXC Crystal Oscillators | HC-49S-SMD | 1,495 | ₹12.56 · 1,495 in stock | View |
 | X49SM12MSB2SI#C188206YXC Crystal Oscillators · HC-49S-SMD | YXC Crystal Oscillators | HC-49S-SMD | 4,180 | ₹17.65 · 4,180 in stock | View |
