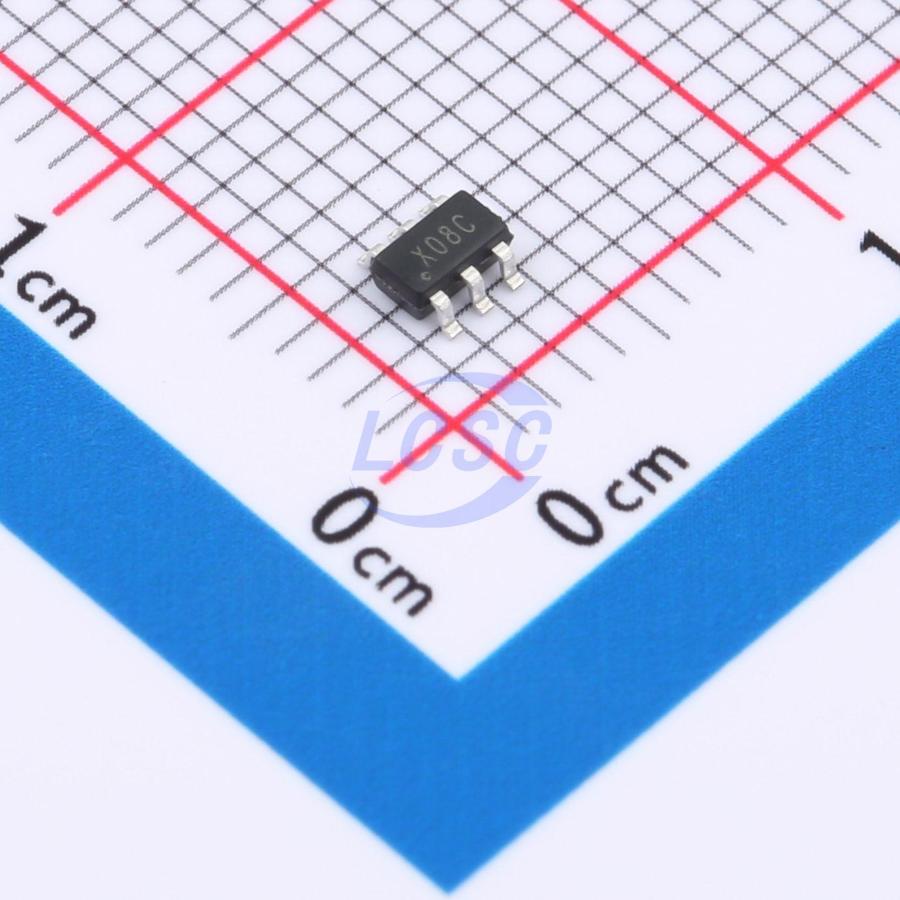

XC101S021
SPI 3.3V~5.25V SOT-23-6 Analog to Digital Converters (ADC)
SOT-23-6RoHSActive
50 to 200 KSPS, Ultra Low Power, 10-Bit SAR Analog-to-Digital Converter
- Manufacturer
- SiChange
- Manufacturer part #
- XC101S021
- Store part #
- C23377940
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
999 in stock
#C23377940
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹143.02 | ₹143.02 |
| 10+ | ₹118.32 | ₹1,183.20 |
| 30+ | ₹104.66 | ₹3,139.80 |
| 100+ | ₹89.28 | ₹8,928.00 |
| 500+ | ₹82.56 | ₹41,280.00 |
| 1,000+ | ₹79.31 | ₹79,310.00 |
1 × ₹143.02
₹143.02
excl. GST
₹168.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC101S021
₹143.02 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- SPI
- Quiescent Current (Iq)
- 350uA
- Voltage - Supply
- 3.3V~5.25V
- Number of Channels
- 1
- Integral non - linearity
- 1LSB
- Voltage Reference
- External
- Clock/Oscillator
- External
- Clock Frequency
- 4MHz
- Resolution(Bits)
- 10;50kHz
- S/N Ratio
- 61.5dB
- ADC architecture
- SAR
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.045 g
Overview
The XC101S021 is an ultra- low power, small size, single- channel 10- bit analog- to- digital converter with a high speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the XC101S021 is fully specified over a sample rate range of 50 KSPS to 200 KSPS. The converter is based upon a successive- approximation register architecture with an internal track- and- hold circuit. The XC101S021 is available in a 6- pin SOT- 23 package and has an operating temperature range of - 40℃ to 85℃. The XC101S021 is a drop- in replacement for the ADC101S021 and consumes only one third dynamic power of their counterpart.
Applications
- Battery Powered Systems
- Instrumentation and Control Systems
- Remote Data Acquisition
- Portable Systems
Key features
- Single Power Supply Range: 3.3V to 5.25V
- Specified Over a Range of Sample Rates Throughput Rate: 50 - 200 KSPS
- ±1 LSB INL, ±0.75 USB DNL
- Zero Latency
- SPI/DSP/MICROWIRE/QSPI Compatible Serial Interface
- Variable Power Management
- Low Power (XC101S021 typical): 1.10mW (3.3V, 200KSPS), 2.30mW (5V, 200KSPS)
- Second- Source for ADC101S021
- 6- Pin SOT- 23 Package
