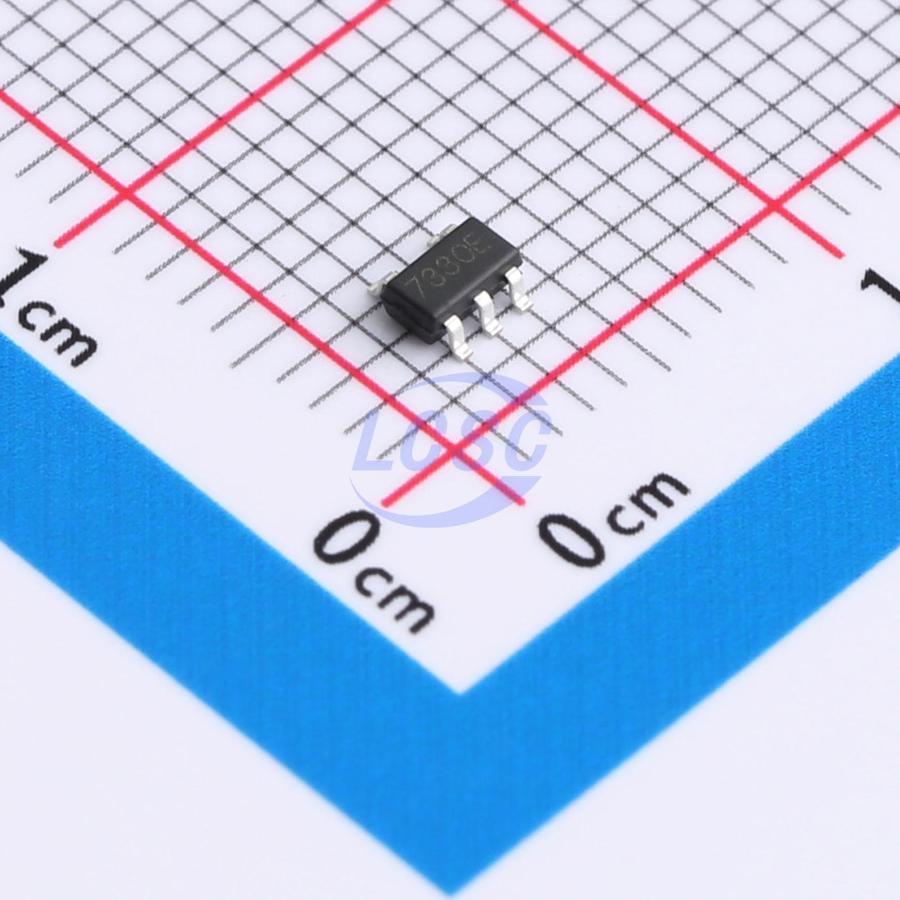

XC6201P302MR
3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
250mA, 2uA, Low Dropout Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- XC6201P302MR
- Store part #
- C22371401
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,310 in stock
#C22371401
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.26 | ₹101.30 |
| 50+ | ₹15.92 | ₹796.00 |
| 150+ | ₹14.05 | ₹2,107.50 |
| 500+ | ₹11.72 | ₹5,860.00 |
| 3,000+ | ₹10.69 | ₹32,070.00 |
| 6,000+ | ₹10.05 | ₹60,300.00 |
5 × ₹20.26
₹101.30
excl. GST
₹119.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC6201P302MR
₹101.30 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 12V
- Features
- Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
The XC6201P is a low-dropout (LDO) voltage regulators with enable function offering the benefits of high input voltage, low-dropout voltage, low-power consumption, and miniaturized packaging. The features of low quiescent current as low as 2.0 μA and zero disable current is ideal for powering the battery equipment to a longer service life. The XC6201P is stable with the ceramic output capacitor over its wide input range from 2V to 12V and the entire range of output load current.
Applications
- Battery powered portable devices
- Smart phone, tablet
- Hi resolution camera sensor power
- Wireless modules
- RF,PLL,VCO clock power
Key features
- High Input Voltage Range: up to 12V
- Maximum Output Current: 250mA
- Low Quiescent current: 2μA
- Low Dropout: 200mV (typ)@100mA (3.3V)
- Low Output Voltage Accuracy: ±2%
- Low Power Consumption
- Low Temperature Coefficient
- Available Packages: SOT89-3、SOT-23-5
