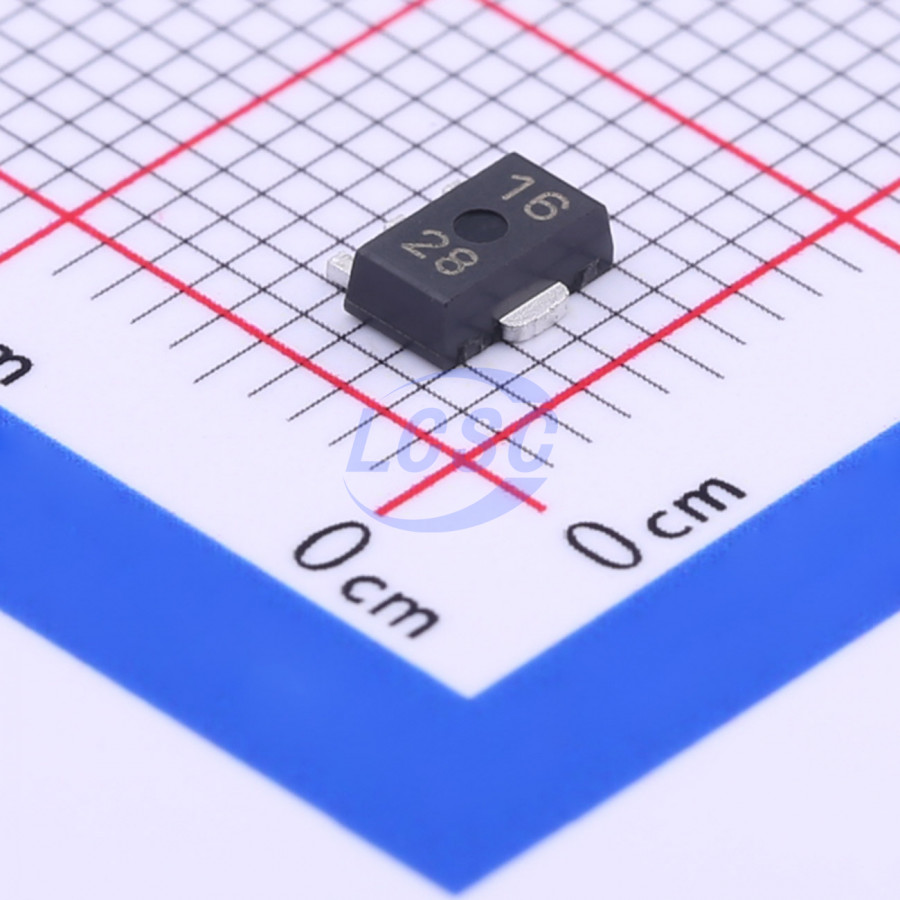

XC6201P332PR-G
3.3V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89-3ROHS3 CompliantActive
Positive Voltage Regulators
- Manufacturer
- TOREX
- Manufacturer part #
- XC6201P332PR-G
- Store part #
- C18754
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
980 in stock
#C18754
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.95 | ₹229.75 |
| 50+ | ₹36.18 | ₹1,809.00 |
| 150+ | ₹31.99 | ₹4,798.50 |
| 1,000+ | ₹26.76 | ₹26,760.00 |
| 2,000+ | ₹24.45 | ₹48,900.00 |
| 5,000+ | ₹23.05 | ₹1,15,250.00 |
5 × ₹45.95
₹229.75
excl. GST
₹271.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
XC6201P332PR-G
₹229.75 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 10V
- Output Current
- 150mA
- Features
- Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.127 g
Overview
The XC6201 series are highly precise, low power consumption, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The XC6201 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error amplifier. Output voltage is selectable in 0.1V steps between 1.3V ~ 6.0V. SOT-25, SOT-89, USP-6B and TO-92 packages are available.
Applications
- Mobile Phones
- Cordless phones, wireless communication equipment
- Cameras, video recorders
- Portable games
- Portable AV equipment
- Reference voltage
- Battery powered equipment
Key features
- Maximum Output Current : 250mA (TYP.)
- Dropout Voltage : 0.16V @ 100mA : 0.40V @ 200mA
- Maximum Operating Voltage : 10V
- Output Voltage Range : 1.3V ~ 6.0V (0.1V increments)
- Fixed Voltage Accuracy : ±1% (VOUT(T)>2.0V) ±2%
- Low Power Consumption : 2.0μA (TYP.)
- Operating Ambient Temperature : -40°C ~ 85°C
- Packages : SOT-25, SOT-89, TO-92, USP-6B
- Environmentally Friendly : EU RoHS Compliant, Pb Free
- Tantalum or Ceramic Capacitor compatible
