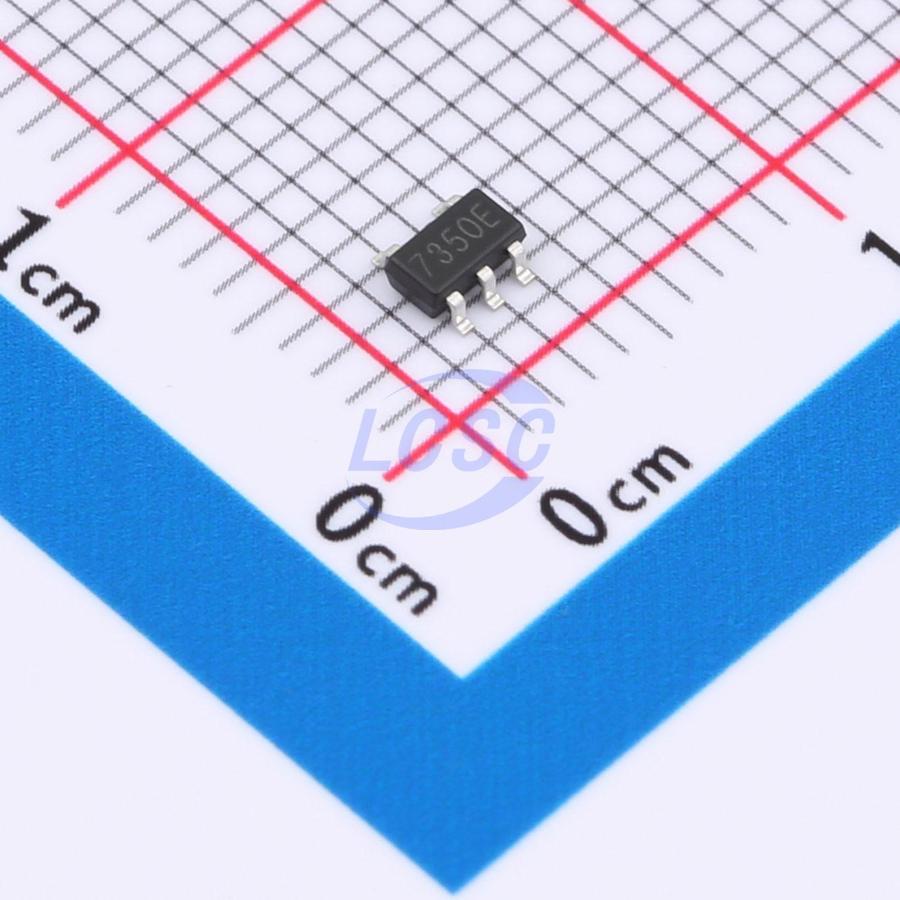

XC6201P502MR
5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
250mA, 2uA, Low Dropout Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- XC6201P502MR
- Store part #
- C22371402
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
590 in stock
#C22371402
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.03 | ₹100.15 |
| 50+ | ₹15.78 | ₹789.00 |
| 150+ | ₹13.97 | ₹2,095.50 |
| 500+ | ₹11.71 | ₹5,855.00 |
| 3,000+ | ₹10.70 | ₹32,100.00 |
| 6,000+ | ₹10.09 | ₹60,540.00 |
5 × ₹20.03
₹100.15
excl. GST
₹118.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC6201P502MR
₹100.15 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 12V
- Features
- Enable control;Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
The XC6201P is a low-dropout (LDO) voltage regulators with enable function offering the benefits of high input voltage, low-dropout voltage, low-power consumption, and miniaturized packaging. The features of low quiescent current as low as 2.0 μA and zero disable current is ideal for powering the battery equipment to a longer service life. The XC6201P is stable with the ceramic output capacitor over its wide input range from 2V to 12V and the entire range of output load current.
Applications
- Battery powered portable devices
- Smart phone, tablet
- Hi resolution camera sensor power
- Wireless modules
- RF,PLL,VCO clock power
Key features
- High Input Voltage Range: up to 12V
- Maximum Output Current: 250mA
- Low Quiescent current: 2μA
- Low Dropout: 200mV (typ)@100mA (3.3V)
- Low Output Voltage Accuracy: ±2%
- Low Power Consumption
- Low Temperature Coefficient
- Available Packages: SOT89-3、SOT-23-5
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPAP2210K-5.0TRG1#C49190788TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,705 | ₹10.89 · 1,705 in stock | View |
 | TPAP2205-50W5#C41408048TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,425 | ₹16.83 · 2,425 in stock | View |
 | TP402C50S5#C48886813TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,665 | ₹16.89 · 2,665 in stock | View |
 | TPMIC5219-5.0YM5#C5370984TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,960 | ₹26.17 · 1,960 in stock | View |
 | TP181C50S5-A#C2841399TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,265 | ₹17.54 · 3,265 in stock | View |
