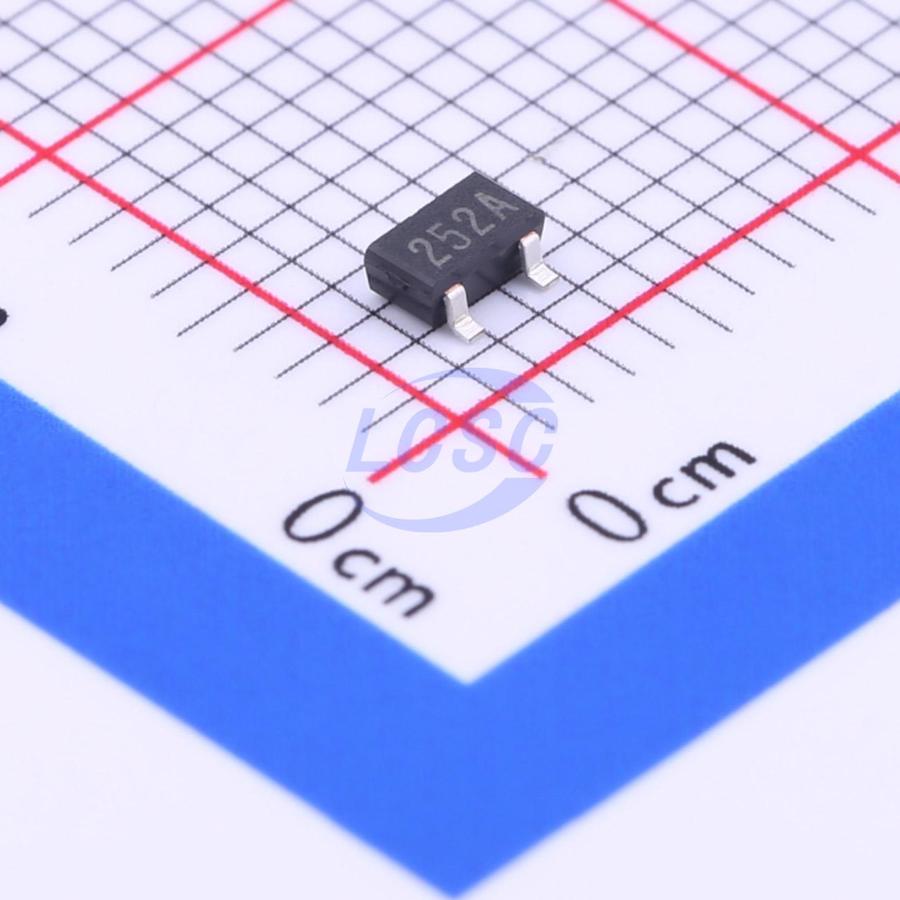

XC6202P332MR-G
3.3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23ROHS CompliantActive
High Voltage Positive Voltage Regulators
- Manufacturer
- TOREX
- Manufacturer part #
- XC6202P332MR-G
- Store part #
- C47374
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,320 in stock
#C47374
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.87 | ₹57.87 |
| 10+ | ₹45.68 | ₹456.80 |
| 30+ | ₹40.47 | ₹1,214.10 |
| 100+ | ₹34.16 | ₹3,416.00 |
| 500+ | ₹31.33 | ₹15,665.00 |
| 1,000+ | ₹28.06 | ₹28,060.00 |
1 × ₹57.87
₹57.87
excl. GST
₹68.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC6202P332MR-G
₹57.87 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 10uA
- Output Configuration
- Positive
- Operating Voltage
- 20V
- Output Current
- 150mA
- Features
- Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.038 g
Overview
The XC6202 series are highly precise, low power consumption, high voltage input, positive voltage regulators manufactured using CMOS and laser trimming technologies. The XC6202 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. Output voltage is selectable in 0.1V steps from 1.8V ~ 18V. The series are also compatible with low ESR ceramic capacitors which give added output stability. Since the current limiter circuit is built-in, the IC is protected against overshoot currents at such times of output shorts etc.
Applications
- Multi-function power supplies
- Note PCs / Tablet PCs
- Digital still cameras / Camcorders
- Reference voltage sources
Key features
- Maximum Output Current: 150mA (within Pd)
- Maximum Operational Voltage: 20V
- Output Voltage Range: 1.8V ~ 18V (0.1V increments)
- Highly Accurate: ±2%
- Low Power Consumption: 10 μA (TYP.)
- Line Regulation: 0.01% / V (TYP.)
- Dropout Voltage: 200mV @ 30mA 670mV @ 100mA
- Operational Temperature Range: -40°C ~ 85°C
- Low ESR Capacitor Compatible: Ceramic capacitor
- Current Limiter Circuit Built-In
- Packages: SOT-23 SOT-89 TO-92 SOT-223 USP-6B
- Environmentally Friendly: EU RoHS Compliant, Pb Free
