MSKSEMI

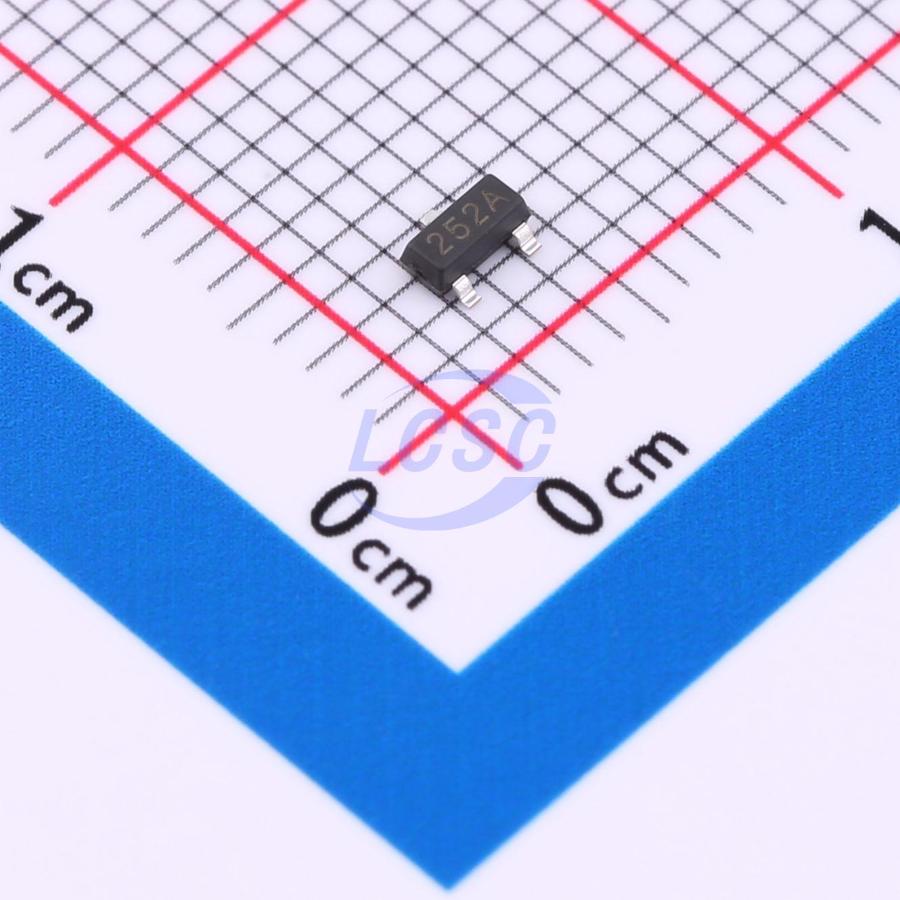

XC6202P332MR-MS

3.23V~3.36V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-23RoHSActive

Low Dropout Linear Regulator ICs

Manufacturer: MSKSEMI
Manufacturer part #: XC6202P332MR-MS
Store part #: C22462576
Package / case: SOT-23
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

895 in stock

#C22462576

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹22.89	₹114.45
50+	₹17.98	₹899.00
150+	₹15.86	₹2,379.00
500+	₹13.24	₹6,620.00
3,000+	₹12.07	₹36,210.00
6,000+	₹11.36	₹68,160.00

Quantity (min 5, multiples of 5)

5 × ₹22.89

₹114.45

excl. GST

₹135.05 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

XC6202P332MR-MS

₹114.45 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.23V~3.36V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Output Configuration: Positive
Operating Voltage: 24V
Output Current: 150mA
Output Type: Fixed
Features: Over Current Protection;Input overvoltage protection

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.034 g

Overview

XC6202PXXXMR-MS series are a set of Low Dropout Linear Regulator ICs implemented in CMOS technology. They can withstand voltage 20V. And they are available with low voltage drop and low quiescent current, widely used in audio, video and communication appliances. XC6202PXXXMR-MS series are linear voltage regulator ICs withstanding 20V voltage. The series IC consists of a voltage reference, an error amplifier, a current limiter and a phase compensation circuit plus a driver transistor. The output stabilization capacitor is also compatible with low ESR ceramic capacitors. The over current protection circuit and the over voltage protection circuit are built-in. The protection circuit will operate when the output current or input voltage reaches limit level.
