TECH PUBLICDatasheet (PDF)

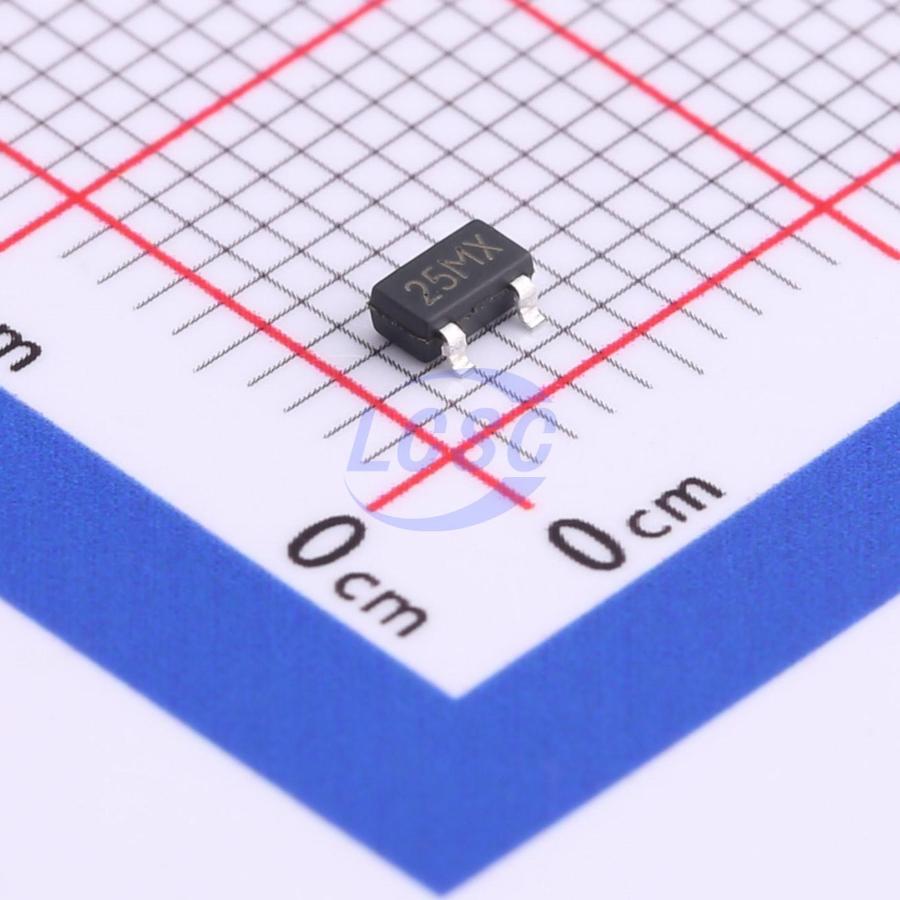

XC6202P502MR
5V Positive Fixed SOT-23-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-3LRoHSActive
High Voltage Positive Voltage Regulators
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- XC6202P502MR
- Store part #
- C2835436
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,215 in stock
#C2835436
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.14 | ₹130.70 |
| 50+ | ₹20.72 | ₹1,036.00 |
| 150+ | ₹18.39 | ₹2,758.50 |
| 500+ | ₹15.49 | ₹7,745.00 |
| 3,000+ | ₹12.85 | ₹38,550.00 |
| 6,000+ | ₹12.07 | ₹72,420.00 |
5 × ₹26.14
₹130.70
excl. GST
₹154.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC6202P502MR
₹130.70 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 150mA
- Features
- Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
The XC6202P series is a group of positive voltage output, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The XC6202P consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to load variations have improved in comparison to the existing series. SOT89 and SOT23-3 packages are available.
Applications
- Battery-powered equipment
- Hand-Hold Equipment
- GRS Receivers
- Wireless LAN
Key features
- Low voltage drop: 0.26V@100mA
- High input voltage: 15V
- Low temperature coefficient
- Large Output Current: >0.5A
- Low Quiescent Current: 2.0uA
- Output voltage accuracy: tolerance ±2%
- Built-in current limiter
- Molding compound flammability rating: UL 94V-0
- SOT89 and SOT23-3 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPMCP1703T-5002E/CB#C3040640TECH PUBLIC · SOT-23-3L | TECH PUBLIC | SOT-23-3L | 4,140 | ₹32.49 · 4,140 in stock | View |
 | HT7550S#C5310977TECH PUBLIC · SOT-23-3L | TECH PUBLIC | SOT-23-3L | 1,850 | ₹10.16 · 1,850 in stock | View |
 | TPRT9161-50GV#C5342423TECH PUBLIC · SOT-23-3L | TECH PUBLIC | SOT-23-3L | 905 | ₹20.94 · 905 in stock | View |
 | TP375C50S3#C3021140TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,500 | ₹17.44 · 1,500 in stock | View |
 | HT7550HS#C52817108TECH PUBLIC · SOT-23-3L | TECH PUBLIC | SOT-23-3L | 830 | ₹10.82 · 830 in stock | View |
