YONGYUTAIDatasheet (PDF)

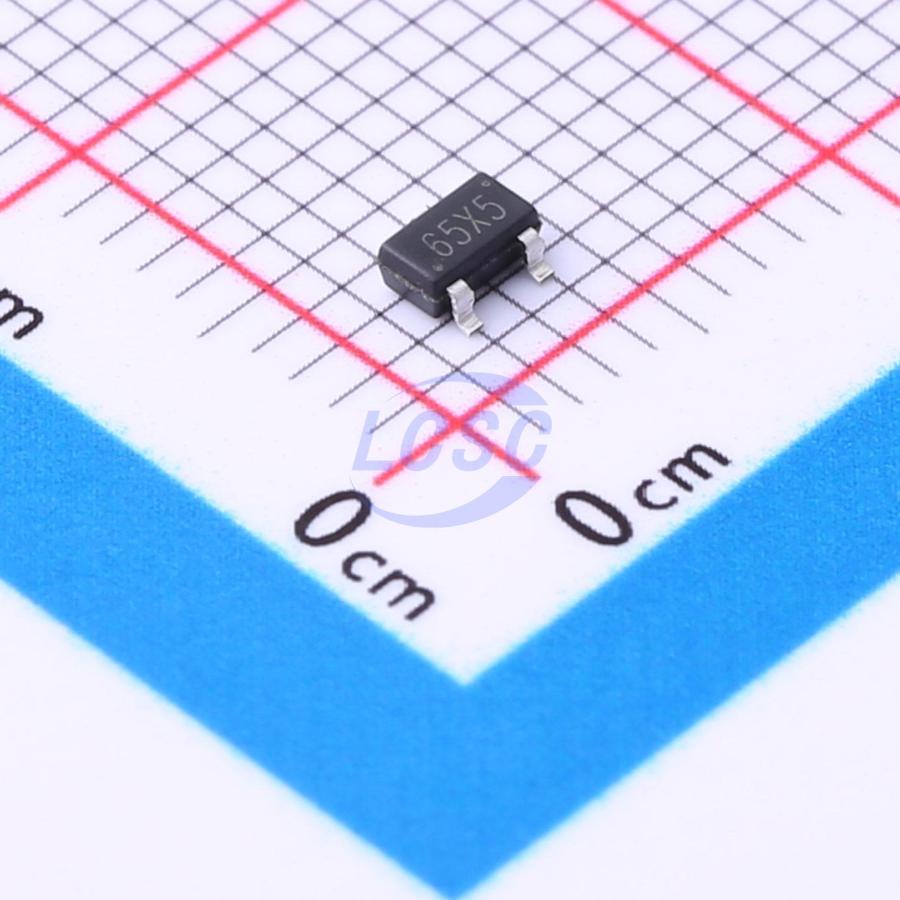

XC6206-2.8V
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23-3L
SOT-23-3LRoHSActive
250mA Low Dropout (LDO) Linear Regulator
- Manufacturer
- YONGYUTAI
- Manufacturer part #
- XC6206-2.8V
- Store part #
- C2892669
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,520 in stock
#C2892669
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.76 | ₹115.20 |
| 200+ | ₹4.71 | ₹942.00 |
| 600+ | ₹4.19 | ₹2,514.00 |
| 3,000+ | ₹3.37 | ₹10,110.00 |
| 9,000+ | ₹3.06 | ₹27,540.00 |
| 21,000+ | ₹2.90 | ₹60,900.00 |
20 × ₹5.76
₹115.20
excl. GST
₹135.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC6206-2.8V
₹115.20 for 20 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 6V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.037 g
Overview
The XC6206 series is a high-precision, low-power, high-voltage, positive voltage regulator IC fabricated using CMOS process technology and laser trimming. It maintains a very low dropout voltage even under output current conditions. The XC6206 series incorporates a current limiting circuit, a driver transistor, a high-precision reference voltage source, and an error correction circuit. The XC6206 series is compatible with low-ESR ceramic capacitors. The current limiter's feedback circuit provides short-circuit protection for both the current limiter and the output pin. Through laser trimming technology, the output voltage can be set in the range of 1.2V to 5.0V in 0.1V increments.
Applications
- Cordless telephone equipment
- Wireless control systems
- Portable/handheld computers
- Portable consumer devices
- Portable instruments
- Electronic equipment
- Automotive electronics
- Voltage reference sources
Key features
- High-precision output voltage: ±2%
- Output voltage: 1.2V to 5.0V (step 0.1V)
- Maximum operating voltage: 6V
- Ultra-low quiescent current (Typ. = 8.0μA)
- High current driving capability
- Ultra-low dropout voltage: 0.2V at 90mA and 0.40V at 200mA
- Excellent input stability
- Low temperature coefficient, suitable for use as regulator and voltage reference in battery-powered systems
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XC6206P282MR#C2934870YONGYUTAI · SOT-23 | YONGYUTAI | SOT-23 | 790 | ₹3.40 · 790 in stock | View |
 | XC6206P282MR 65X5#C42375080YONGYUTAI · SOT-23-3L | YONGYUTAI | SOT-23-3L | 3,000 | ₹4.74 · 3,000 in stock | View |
