TECH PUBLICDatasheet (PDF)

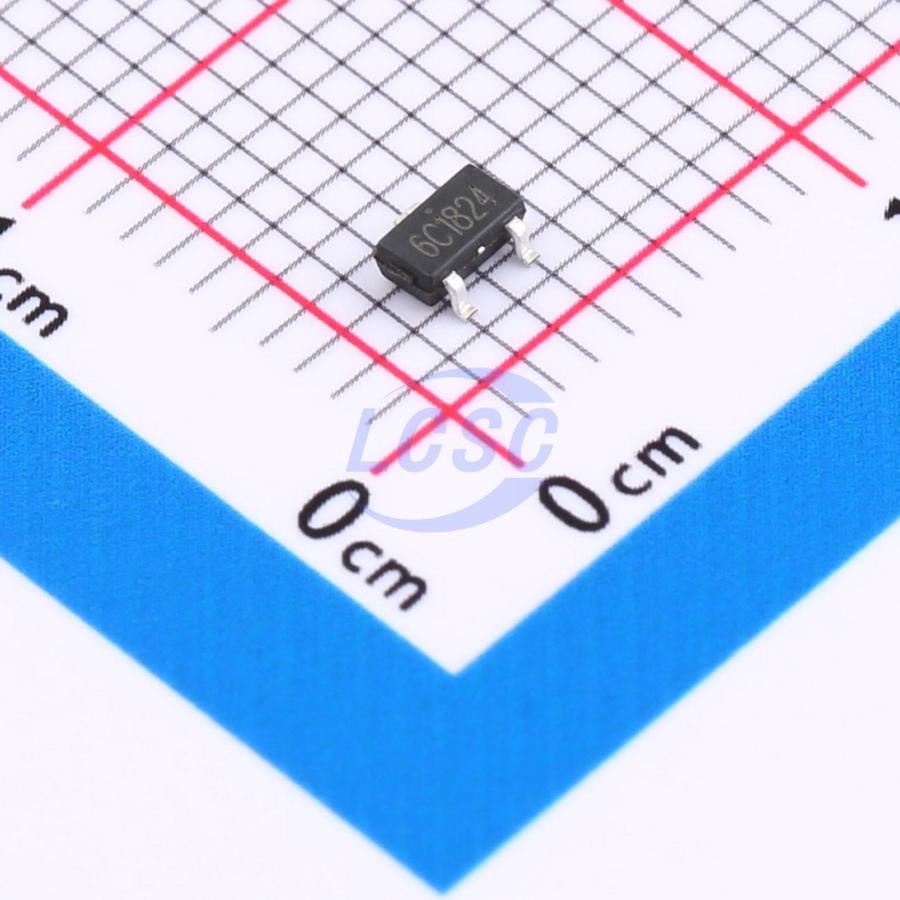

XC6206P182MR(1uA)
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA SOT-23-3L
SOT-23-3LRoHSActive
Ultra-low power consumption, low dropout, linear voltage regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- XC6206P182MR(1uA)
- Store part #
- C2827651
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,720 in stock
#C2827651
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.11 | ₹101.10 |
| 100+ | ₹8.02 | ₹802.00 |
| 300+ | ₹6.99 | ₹2,097.00 |
| 3,000+ | ₹6.20 | ₹18,600.00 |
| 6,000+ | ₹5.57 | ₹33,420.00 |
| 9,000+ | ₹5.25 | ₹47,250.00 |
10 × ₹10.11
₹101.10
excl. GST
₹119.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC6206P182MR(1uA)
₹101.10 for 10 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+85℃@(Ta)
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 7V
- Features
- Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.039 g
Overview
The XC6206P series are high-accuracy, low-power, low-dropout 3-terminal CMOS step-down voltage regulators. They deliver 200mA output current with minimal input-to-output voltage differential while maintaining excellent regulation. Features an ultra-low quiescent current of 1.0μA Typ. Integrated overcurrent and short-circuit protection. Compatible with small, low-ESR ceramic capacitors. Using laser trimming technology, output voltage is selectable from 0.9V to 5.0V in 0.1V increments.
Applications
- Regulated power supply for battery-powered devices
- Regulated power supply for home appliances
- Regulated power supply for portable communication equipment, digital cameras, and digital audio devices
Key features
- Maximum output current: 200mA
- Input-output voltage differential: 200mV@100mA
- Maximum input voltage: 7V
- Output voltage range: 0.9V ~ 5.0V
- Low quiescent current: 1.0μA Typ.
- Protection features: overcurrent protection, short-circuit protection
- Output capacitor: compatible with ceramic capacitors
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP132LC18S3L#C48586706TECH PUBLIC · SOT-23-3L | TECH PUBLIC | SOT-23-3L | 3,590 | ₹6.40 · 3,590 in stock | View |
